12v 300ah Lifepo4 Battery
1. Long cycle life than lead acid Battery.
-at least 2000 times - 8000 times 40% dod.
2.Less half the weight of similar-capacity than lead-acid batteries.
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A).
5.No maintenance required.
6. No battery memory.
7.Almost no temperature derating effects.
8. 95% energy efficient.
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of 12v 300ah lifepo4 battery in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.

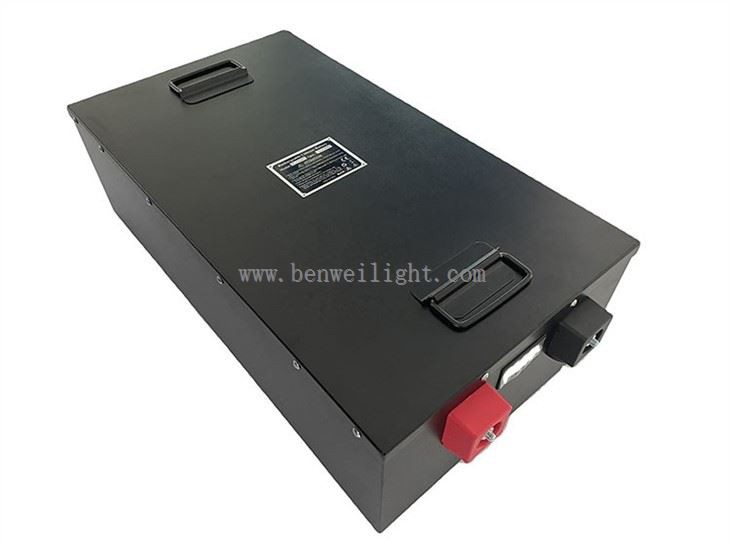

12v 300ah lifepo4 battery
Product Features:
1. Long cycle life than lead acid Battery.
-at least 2000 times - 8000 times 40% dod.
2.Less half the weight of similar-capacity than lead-acid batteries.
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A).
5.No maintenance required.
6. No battery memory.
7.Almost no temperature derating effects.
8. 95% energy efficient.
Product Specification:
| Nominal voltage | 12.8V |
| Nominal capacity | 300ah（OEM） |
| Battery type | Top grade A 3.2V 100ah LifePO4 pouch Lithium iron phosphate battery cell |
| Model | DL-12300/4S3P |
| Battery configation | 4S3P |
| Internal resistance | ≤420mΩ |
| End of charge voltage | 14.6V |
| End of charge current | 200mA |
| End of discharge voltage | 9.2V |
| Charge method | CC/CV(constant current/constant voltage) |
| Max continuous charge current | 50A ( suggetsion) |
| Continuous discharge current | 100A or use 200A bms |
| Max pulse discharge current | 200a/10S |
| Net weight | 35KG gross weight |
| Case material | ABS case or metal case or stainless steel case |
| Case dimension | 300ah ：600*335*185mm （ all dimension can be customized ） |
| Warranty | 3 years for seller |
| Built-in BMS | 100A Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc |
| Terminal Type | M8 or anderson |
| Lifecycle | Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Storage temperature | -10~45℃ |
| Certificate | CE, RoHS ,MSDS and UN38.3 certification |
| Parallel assembly | up to 10 items (12V-3000Ah or more ) |
| Enclosure Protection | IP56 or customized IP67 available |
| Sticker | OEM sticker welcome, you can sent desgin for customization |
Applications:
LED light system;
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Portable measuring equipment
-Various power toys and recreational equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
Longer life cycle
