Products

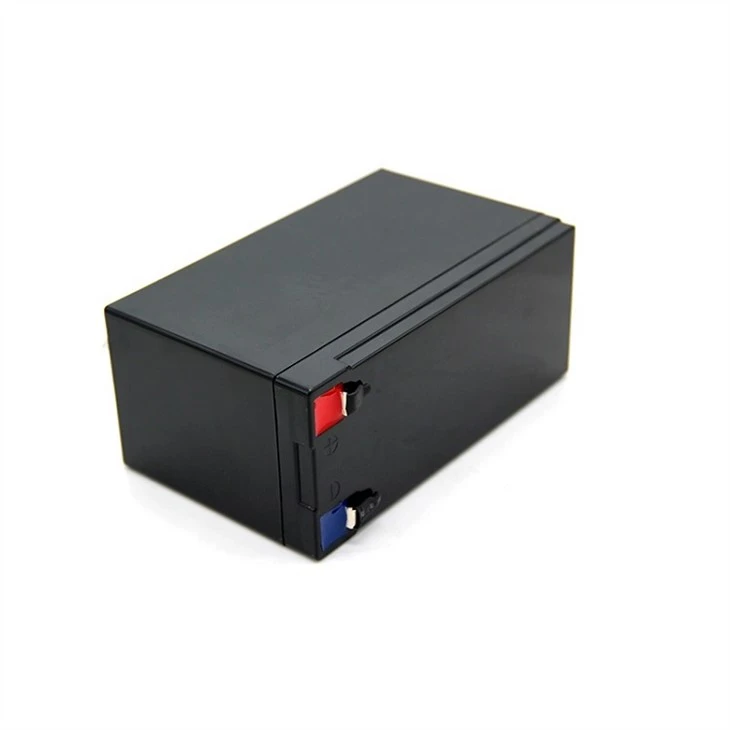

Lifepo4 Battery 12v 6ah
Lithium polymer 12v 7ah lifepo4 battery .
1.Different capacity battery cells for option: 2000mAh/2200mAh/2400mAh/2600mAh/2800mAh.
2.Green product, long standby time, 3 years wrranty, excellent safety performance.
3.Short circuit testing passed, overcharge testing passed.
4.Best sale service and good price .
5.High capacity, high level platform, long working hours, long cycle life.
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of lifepo4 battery 12v 6ah in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
lifepo4 battery 12v 6ah
Product Features:
Lithium polymer 12v 7ah lifepo4 battery .
1.Different capacity battery cells for option: 2000mAh/2200mAh/2400mAh/2600mAh/2800mAh.
2.Green product, long standby time, 3 years wrranty, excellent safety performance.
3.Short circuit testing passed, overcharge testing passed.
4.Best sale service and good price .
5.High capacity, high level platform, long working hours, long cycle life.
| Nominal voltage | 12.8V |
| Nominal capacity | 7ah（OEM） |
| Battery type | Top grade A 3.2V 7000mah LifePO4 Cylindrical Lithium iron phosphate battery cell |
| Model | BW-1207/4S1P |
| Battery configation | 4S2P |
| Internal resistance | ≤420mΩ |
| End of charge voltage | 14.6V |
| End of charge current | 200mA |
| End of discharge voltage | 9.2V |
| Charge method | CC/CV(constant current/constant voltage) |
| Max continuous charge current | 10A ( suggetsion) |
| Max continuous discharge current | 25A |
| Max pulse discharge current | 30A/10S |
| Net weight | 720g net weight |
| Case material | ABS case |
| Case dimension | 7ah ：151*65*95mm （ all dimension can be customized ） |
| Warranty | 2 years. 3 years for seller |
| Built-in BMS | Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc |
| Terminal Type | M8 |
| Lifecycle | Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Storage temperature | -10~45℃ |
| Certificate | CE, RoHS ,MSDS and UN38.3 certification |
| Parallel assembly | up to 10 items (12V-70Ah or more ) |
| Enclosure Protection | IP56 or customized IP67 available |
| Sticker | OEM sticker welcome, you can sent desgin for customization |
Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life.
2000 Cycle Times 85% DOD
5000 Cycle Times 65% DOD
8000 Cycle Times 40% DOD
3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
Lithium-ion battery pack assembly overview
1. The basic structure of the battery
The basic structure of the battery consists of three parts: the battery core, the protective plate and the outer shell.
1. Batteries: Batteries are the most important part of the battery and the carrier of energy conversion. Our company currently produces polymer lithium ion batteries and cylindrical lithium ion batteries. The basic parameters of the battery are: capacity, internal resistance, cycle life, etc.
2. Protection board: The protection board is an electronic functional module that protects the normal operation of the battery cell and prevents abnormal accidents. The main components are IC and MOS tube. The IC is a component that monitors the voltage of the cell, and the MOS tube is a switch. In the whole module, the IC controls the switching state of the MOS tube by detecting the current of the working circuit and the voltage across the battery core, thereby controlling the charging and discharging circuit, and achieving the purpose of preventing battery overcharge, overdischarge or overcurrent. The main parameters of the protection board are: overcharge protection voltage, overcharge protection recovery voltage, overdischarge protection voltage, overdischarge protection recovery voltage, short-circuit protection current, self-consumption current, PCM internal resistance, etc. The above parameters can be measured by special equipment or analog circuits.
3. Shell: The shell is a shell that fixes the battery core and the protection board together, seals and completes the matching function with the host. The outer shell is often divided into a bottom shell and a face shell. Generally, after mating with the host, the one that leaks outside is the face shell, and the other is the bottom shell.
Commonly used materials for the shell are: ABS, ABS+PC, PC, etc. The main indicators to measure the shell are: color, material, fit, mechanical strength, etc.
FAQ:
Q: Are you a factory or trading company?
A: We are a factory and own 3 different production bases with advanced automatic production lines and over 2,000 workers in total.
Q: What is your lead-time for mass production orders for Lifepo4 Battery 12v 6ah?
A: Generally 15 ~ 25 working days, depending on the quantity and model, battery type, and etc., we recommend checking the lead-time according to the actual situation.
Q: Do you accept OEM/ODM lithium battery orders?
A: Yes, OEM&ODM are welcome, please kindly inform us of your design requirements.
Q: Do you accept sample orders?
A: Sample order is acceptable to support potential customers at a starting stage.
Q: What is your warranty term?
A: We offer a 36-month warranty, with free replacement for any quality issues confirmed
