Lithium Iron Phosphate Battery 12v 100ah
( Reasons for Why you choose 12 volt 100 amp hour battery to replace lead acid battery )
1. Long cycle life than lead acid Battery
-at least 3000 times - 8000 times 40% dod
2.Less half the weight of similar-capacity than lead-acid batteries(Lighter!)
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A)
5.No maintenance required
6. No battery memory
Send Inquiry
Product Introduction
One of our best-selling items is the Lithium Battery Power 12V 100Ah Lithium Ion Battery.
Benwei Best LiFePO4 Lithium-Ion Battery Specifications:
This is an unique lithium iron phosphate (LiFePO4) deep cycle battery that is incredibly adaptable.
A built-in battery management system (BMS) in the LFP-12100 maintains the battery operating at optimal efficiency while avoiding overheating and overcharging and extending cell cycle life.
Internal BMS (electronic device) continuously checks the battery and alerts the user if any anomalies in voltage or capacity are found. (BMS with Bluetooth)
LiFePO4 is the best option for marine, Motor home, golf cart, motorbike, and off-grid uses because it weighs only half to a third as much as a lead acid battery.
Our Lifepo4 lithium Batteries are more ecologically sustainable than SLA because they don't contain any corrosive or dangerous heavy metals.
Batteries.
With a typical lifespan of between 5 and 10 years, LiFePO4 batteries have a low discharge rate and a lengthy working life.
LIFECYCLES (BATTERY LIFESPAN) (BATTERY LIFESPAN) For 3,000 rounds at up to 85% capacity under ideal circumstances, 8,000 times (40% dod),
lithium iron phosphate battery 12v 100ah Composition:

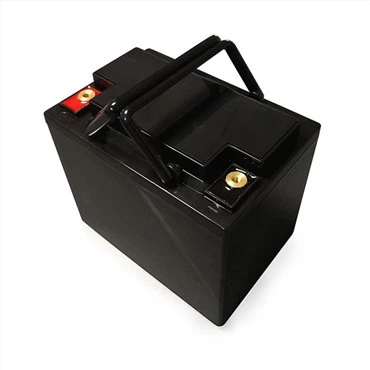

Premium Quality A 3.2V LifePo4 battery cells, a top-notch BMS, a plastic ABS container, an LCD screen (display), and a strip handle make up a 12.8V 100Ah lithium battery.
|
Nominal voltage
|
12.8V
|
|
Nominal capacity
|
100ah /200ah/300ah/400ah/500ah/600ah（OEM）
|
|
Battery type
|
Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell
|
|
Model
|
DL-12100 /4S1P/DL-12200/4S2P DL-12300/4S3P DL-12400/4S4P DL-12500/4S5P DL-12600/4S6P
|
|
Battery configation
|
4S1P 4S2P 4S3P 4S4P 4S5P 4S6P
|
|
Internal resistance
|
≤120mΩ
|
|
End of charge voltage
|
14.6V
|
|
End of charge current
|
200mA
|
|
End of discharge voltage
|
9.2V
|
|
Charge method
|
CC/CV(constant current/constant voltage)
|
|
Max continuous charge current
|
50A ( suggetsion), 100A also ok
|
|
Max continuous discharge current
|
100A
|
|
Max pulse discharge current
|
200A/5S
|
|
Net weight
|
100ah： 11kg ,200ah：around 26kg ，300ah: 40kg， 400ah: 45kg， 500ah: 56kg，
|
|
Case material
|
ABS or metal case or stainless steel case
|
|
Case dimension
|
100ah ：235*196*170mm (blue) or 329*172*217mm（black）
（ all dimension can be customized ）
|
|
Warranty
|
3 years for seller
|
|
Built-in BMS
|
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc
|
|
Terminal Type
|
M8 or anderson or another bolt screw
|
|
Lifecycle
|
Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod
|
More pictures:
Performance:
Usable Capacity (amp hours) ： 100AH
Depth of Discharge ： 100%
Peak amps 5 seconds ： 1000A
Reserve Minutes @ 20A ： 300
Reserve Minutes @ 50A ： 120
Self Discharge： <3% a year
Capacity % @ 100 Cycles ： 102%
Capacity % @ 1500 Cycles ： 96.3%
Capacity % @ 2000 Cycles ： 90.8%
Capacity % @ 2500 Cycles ： 85.4%
Capacity % @ 3000 Cycles： 80.1%
Customer remarks:
