24v 300ah Lithium Ion Battery
- Free of maintenance.
- Internal cell balancing.
- Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of 24v 300ah lithium ion battery in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Description
Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

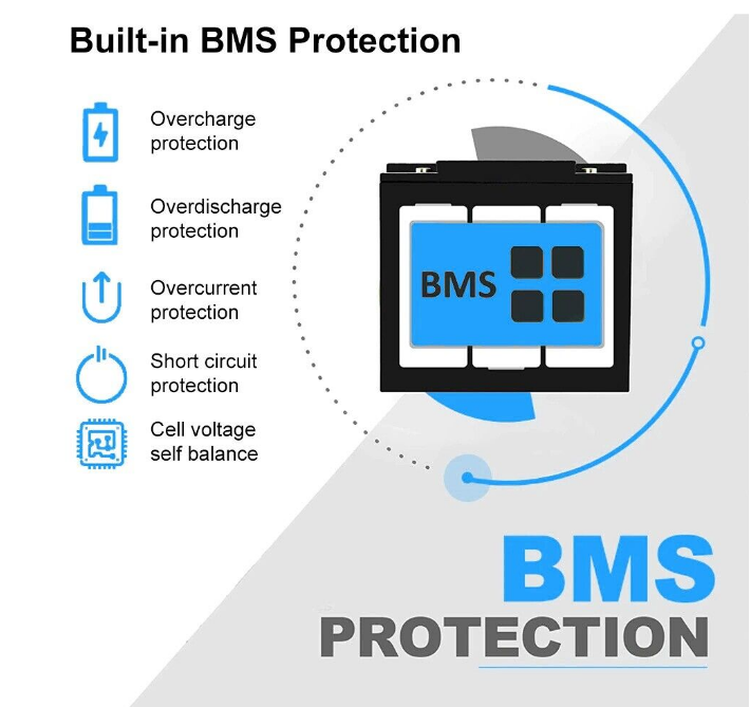

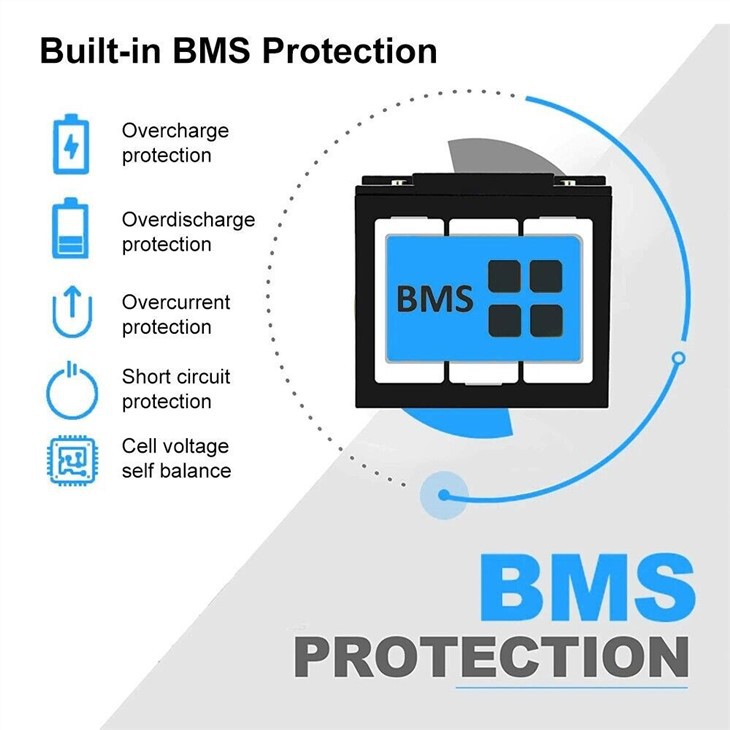

- Built-in automatic protection for over-charge, over discharge, over current and over temperature.
- Free of maintenance.
- Internal cell balancing.
- Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
Battery specification
|
Electrical |
Nominal Voltage |
25.6V |
|
Nominal Capacity |
300Ah@0.2C |
|
|
Energy |
3840Wh |
|
|
Internal Resistance |
≤35mΩ |
|
|
Cycle Life |
4000+ Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity |
|
|
Self Discharge |
≤3.5% per month at 25℃ |
|
|
Standard Charging |
Max.Charging Voltage |
25.6 |
|
Charging Mode |
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C |
|
|
Charging Current |
80A |
|
|
Max.Charging Current |
100A |
|
|
Standard Discharging |
Discharging Current |
100A |
|
Max. Continuous Current |
170A |
|
|
Max.Pulse Current |
300A(<3S） |
|
|
Discharging Cut-off Voltage |
10.0 |
|
|
Operating Condition |
Charge Temperature |
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
|
Discharge Temperature |
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
|
|
Storage Temperature |
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP55 |
More pictures:
Application
Package
FAQ
1.A lithium battery with 300Ah has how many kwh?
Longer performance and 3.84kWh USABLE ENERGY90% of products can be powered by 3.84kWh of energy from a fully charged Power Queen 12.8V 300Ah LiFePO4 Battery, such as a 200W heating pad that can operate continuously for 19 hours in the winter.
2.What is a 24V lithium battery's maximum voltage?
Gel batteries have a high charging voltage of 2.3 to 2.36 volts per cell, which translates to 27.6 to 28.3 volts for a 24 volt charger. This is less than a moist or AGM type battery requires for a complete charge.
3.How long will a lithium battery with 300AH last?
MADE TO LAST: Without deteriorating in performance, our 12V 300Ah LiFePO4 Batteries can withstand more than 2000 cycles at 100% and 8000 cycles at 50%(Suggested)depth of depletion. Lead-acid batteries typically last for two years (500 cycles) at a 50% depletion rate.
