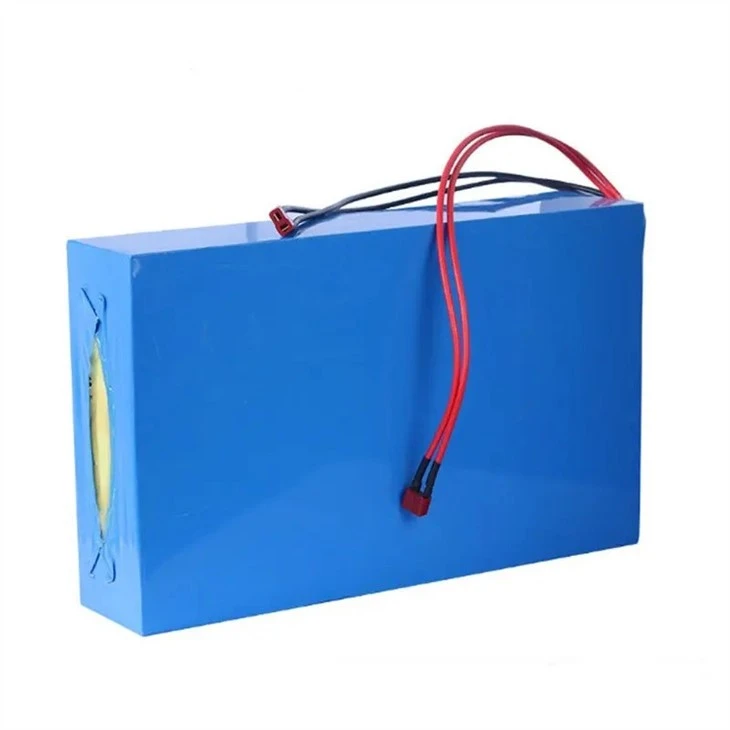

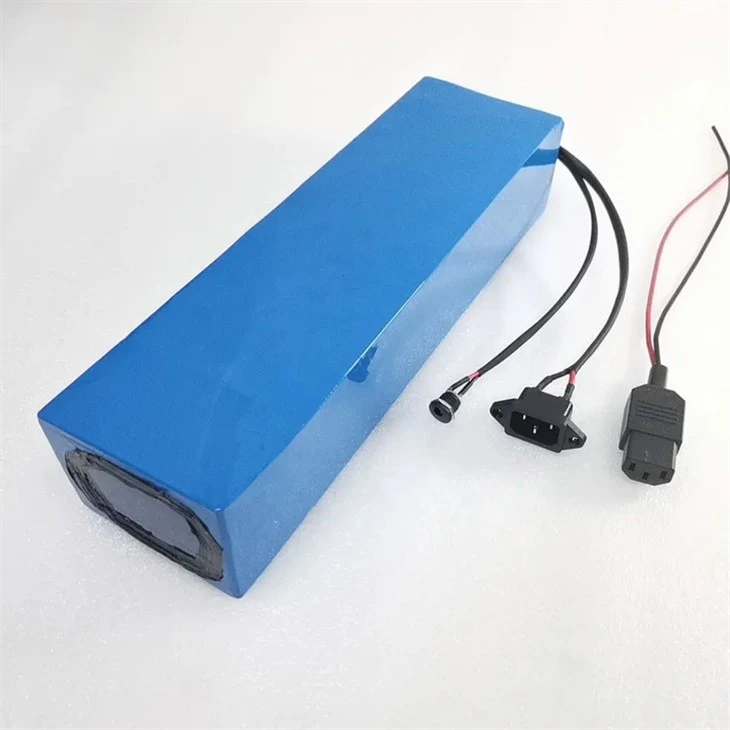

24v Portable Power Pack
1. The system is adaptable thanks to the Master-Slave design;
2. A two-level warning facilitates maintenance;
3. The system is dependable thanks to industrial-grade electrical components and CAN 2.0;
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of 24v portable power pack in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
BMS (Battery Management System)
Our BMS consists of Master BMS Circuitry (we named "BMU"), Slave BMS Circuitry (we integrate it into our battery module) and contactor.
Besides the basic functions such as over charge/ discharge, over current, short circuit, over temperature and balancing, Our BMS owns the following features
Product Description
1. The system is adaptable thanks to the Master-Slave design;
2. A two-level warning facilitates maintenance;
3. The system is dependable thanks to industrial-grade electrical components and CAN 2.0;
4. The contactor enables high rate charge and discharge;
5. Regular insulation measurement ensures worker safety;
6. The host can simply control the system.
Specifications:
| Cell Type | Lifepo4 battery |
| Nominal Voltage | 24V |
| Nominal Capacity | 20Ah |
| Cycle Life | >2000times 0.2C |
| Discharge Cut-off Voltage | 18.4V |
| Charging Cut-off Voltage | 29.2V |
| Housing Material | Plastic |
| Standard Charge | 0.2C charge current |
| Max. Continual Discharge Current | 200A |
| Charge Temperature | 0~55°C |
| Discharge Temperature | -10~60°C |
| Storage Temperature | 0~35°C |
| Weight | About 6kg |
| Dimension | Customized |
| Certificate | CE,ROHS |
More details
Application
State of charge calculations.
Cell over-voltage and under-voltage protection.
Intelligent battery balancing (passive).
Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions
