24v Rechargeable Battery With Charger
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of 24v rechargeable battery with charger in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
The LiFePO4 chemistry has been around for a while, but it has recently gained traction in the commercial sectors as a result of innovations made to the anode material, as well as its high stability in conditions of extreme stress and its capacity to continue offering good performance. Most prominent users of battery packs for electric vehicles that want the battery to perform better and last longer utilise these cells.
Product Description
Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
Battery specification
| Battery Type | PVC Pack |
| Battery Chemistry | Lithium-Ion |
| Cell Type/Assembly Method | Cylindrical cells/welded |
| Voltage (V) | 24V |
| Capacity (Ah) | 100Ah |
| Energy Stored (Wh) | 960 Watt-Hours |
| Weight | 5.75 kg (12.68 lbs) |
| Dimension Metric (L x W x H) | 310 mm x 140 mm x 80 mm |
| Dimension Imperial (L x W x H) | 12.2 in. x 5.5 in. x 3.1 in. |
| Discharge Connector | SB50 Grey Powerpole |
| Charge Connector | PP45 Red/Black Powerpole |
| Cycle Life | 1000+ cycles |
| Normal Charge Current | 5.0 Amps |
| Nominal Continuous Discharge Current | 20.0 Amps |
| Maximum Continuous Discharge Current | 40.0 Amps |
| Maximum Peak Discharge Current | 80.0 Amps |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Operating Humidity | 60±25%R.H |
| Storage Humidity | 60±25%R.H |
| Automatic Battery Protection Module/System | Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing, |
More pictures:
Application
Light electric car, e-bike, electric scooter, e-rickshaw,electric golf cart, forklift, cleanness car, electric wheelchairs.
E-tools lik electric drill.electric saw,lawn mower and so on
Remote control cars ,boat aircraft,toys.
Solar and wind power generation energy storage devices
Small medical equipment and portable equipment

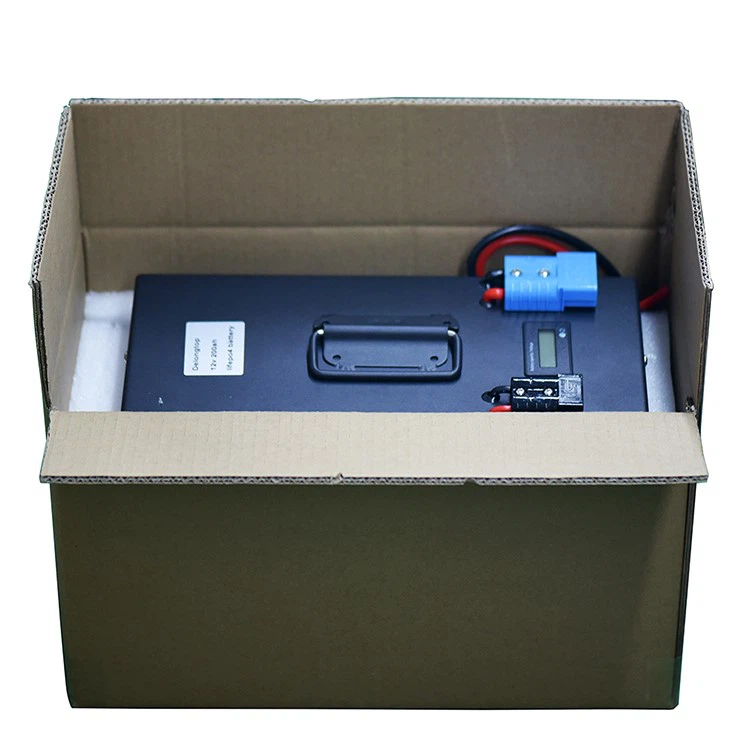

Package
LiFePO4 cells provide the following advantages over Li-ion and lead-acid batteries:
Chemically, LiFePO4 cells are substantially more stable and inert. The phosphate-based cathode material will not burn at high temperatures or if the battery is handled incorrectly. LiFePO4 is therefore significantly safer for electric vehicles and mobile robotics.
Comparing LiFePO4 cells to Lead Acid or Li-ion cells, LiFePO4 cells have a substantially longer lifespan. With good care, the LiFeP04 offers around 3000 cycles and up to 70% DOD ( Depth of Discharge). Moreover, a cell with a reduced self discharge rate has a substantially longer shelf life.
The performance of the LiFePO4 cells is superior than that of a typical 1C Li-ion 18650 cell. The LiFePO4 1C cell has a 6A discharge rate compared to the frequently used Li-ion cell's 2 A rating. Moreover, there is hardly any voltage loss during discharge, compared to a lead acid battery's substantially larger voltage drop.
LiFePO4 is a benign substance that doesn't contaminate the environment and doesn't include any rare earth minerals. As a result, it is a significantly more environmentally friendly option than lead acid and lithium batteries.
