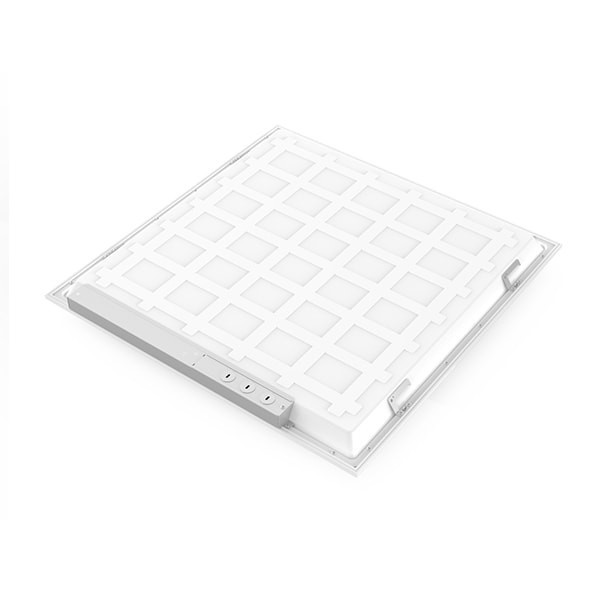

LED Panel Backlit
Luminous efficiency: 100lm/w, 120lm/w, 130lm/w, 150lm/w for option
CCT: 3000K/4000K/5000K/5700K
Driver: TUV driver, Philips Flicker Free driver for option
CRI:>80
Beam angle: 120°
Emergency back up: 60mins/90mins/180mins
Dimmable: 0-10V/DALI for options
IP Grade: IP20
Warranty: 5 years
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led panel backlit in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
BW LIGHT LED flat panel light Super slim design, High lumen output,high efficiency, energy saving up to 70%.
Using super bright SMD LED with high efficiency output.
Using imported high transmittance optical PMMA materials without lead and mercury.
CE certificated, meet the requirements of UL SAA, VDE.
Lead free, eco-friendly, conform to the requirements of ROHS.
long lifespan, normal use can reach over 50,000hours.
Constant power consumption while input voltage in AC200-240V.
Product Specfication:
| Dimension(mm) | 595x595x10 | 620x620x10 | 295x1195x10 |
| LED Type | SMD2835 | ||
| Power Consumption | 40w | 36w/40w | 40w |
| Luminous efficiency | 100lm/w, 120lm/w, 135lm/w, 150lm/w | ||
| Input Voltage | AC220-240V | ||
| Heat sink | 6063 aluminum + optical PMMA | ||
| Driver | Philips free flicker | ||
| CRI | 80-90 | ||
| Beam Angle | 110° | ||
| Power Factor | >0.9 | ||
| Working Voltage | DC36-42V | ||
| CCT | 2800-3200K 4000-4500K 6000-6500K | ||
| Working Temperature | -40°C - + 55°C | ||
| Storage Temperature | -25°C - + 55°C | ||
| Installation | Embedded, Suspended, Surface mounted, Spring clip | ||
| IP Rating | IP20 | ||
| Wa rra nty | 5 yea rs | ||
More Details:
LED Panel Backlit benefits
Different structure for the edge-lit, the back-lit more economical solution. LED panel Backlit light is with direct lighting design, which has higher lumen efficiency and perfect lighting performance.
Moreover, since there is no light guide plate, it has advantages of less weight, lower cost and longer lifespan, instant start, no radiation, flicker free, no noise, no mercury and other material that is harmful to human body and environment.
LED Light Panel backlit High Luminous Efficacy
Short-lived tubes and ballasts and, of course, the dreaded flickering were reasons why fluorescents were disliked by office workers. Initial versions of the LED replacements offered only a marginal benefit in terms of luminous efficacy – 60 lm/W were swapped with 79 lm/W when the first edge-lit LED panel lights appeared.
Over time, each new generation of LED panels has delivered improved ratios of power to light. To the extent that Integral’s new up to 150 lm/W backlit led panel light.
Lower Cost more economical
Backlighting has proved the natural benefit of projecting light through less material. Edge-lit led panel light still retains a share of the market where unit costs are a higher priority than running costs, and where there is an aesthetic preference. However, the real saving is in the lower operational costs delivered by backlit led panels.

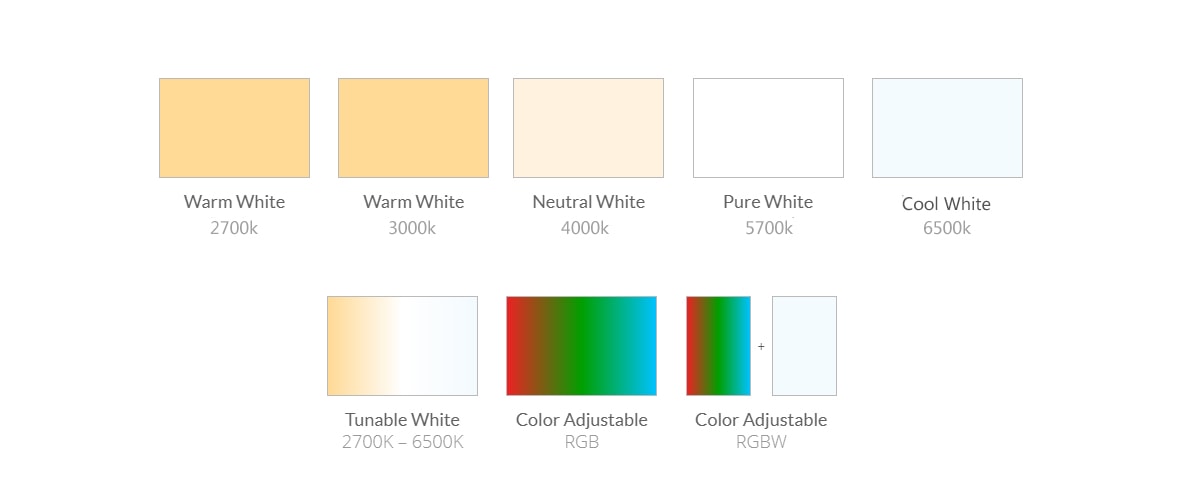

LED Panel Light Backlit Color Options
The light panel LEDs offer multiple color for options, warewhite 2700k, warm white 3000k, Nature White 4000K, Pure white 5700k, Cool white 6500k.
We also have Tunable white from 2700k to 6500k with Dial-up or Remote controller. RGB or RGBW adjustable available as well.
0-10V and DALI Dimmable Options

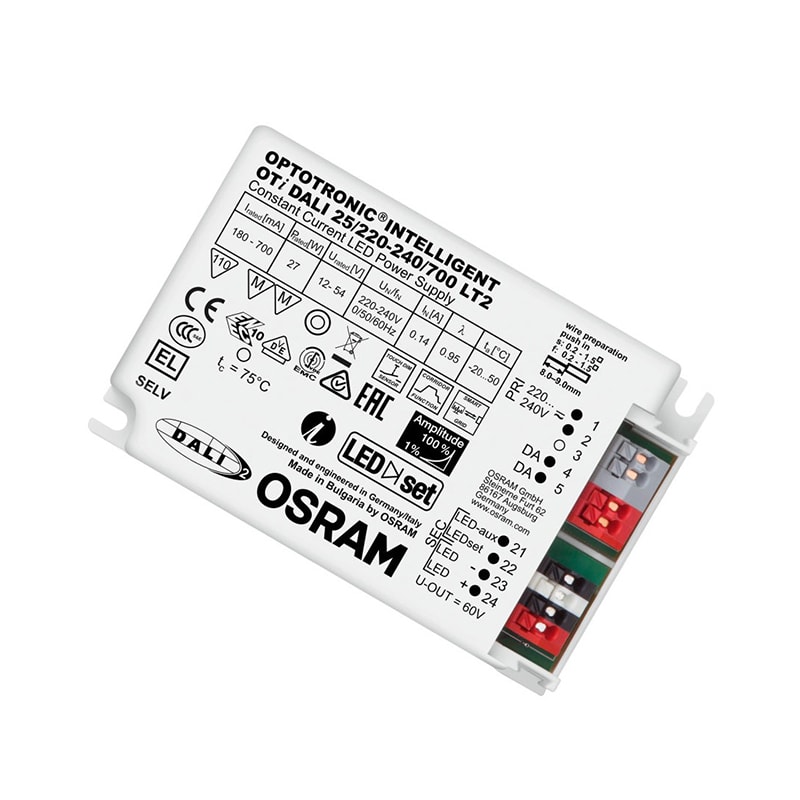

The dimmable driver we have strategic business partner Brand like OSRAM, Tridonic, and BOKE for Options, The Dali dimmable driver all from DALI 2 version.
Application:
Installation:
Open the package to get LED panel , power supply and accessories,
and then place the power supply on back plate of LED panel light with DC cable connected.
Insert the LED panel into the ceiling hole, connect the AC cable of power supply.
Align and fix the panel light on the ceiling grid, make sure its light emitting area underneath.
Usage by electrical turn on
