Led Tri-proof Light L9 IP67&IP69K&IK10
· IP67 & IP69K & IK10
· PMMA IK08 / PC IK10
· Anti-ammonia
· Withstands water pressure of 100 bar (1 450 psi) at 80 °C
· System efficiency up to 140 lm/W & 170 lm/W
· High CRI > 80
· Environmentally friendly: no mercury, no UV, no IR
· Wide beam angle 120°
· 5-year warranty
· Quick start with instant 100 % luminous flux
· Certificates: CE, RoHS
· Surface mount or suspension mount
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led tri-proof light l9 ip67&ip69k&ik10 in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.

Features
· IP67 & IP69K & IK10
· PMMA IK08 / PC IK10
· Anti-ammonia
· System efficiency up to 140 lm/W & 170 lm/W
· High CRI > 80
· Environmentally friendly: no mercury, no UV, no IR
· Wide beam angle 120°
· Quick start with instant 100 % luminous flux
· Certificates: CE, RoHS
· Surface mount or suspension mount
paramenters
| products |
![]() |
![]() |
![]() |
![]() |
| Model number | BWL9 2F-20W | BWL9 4F-40W | BWL9 5F-50W | BWL9 5F-60W |
| Input voltage | 200-240V AC/100-277V AC(50/60Hz) | |||
| Input current | 0.09A@220V AC | 0.19@220V AC | 0.23A@220V AC | 0.28A@220V AC |
| PF | >0.9@220V AC | |||
| Dimming option | 0-10V/DALI | |||
| CCT | 3000K/4000K/5000K/6000K | |||
|
Luminous flux |
2800lm@140lm/w |
5600lm@140lm/w |
7000lm@140lm/w |
8400lm@140lm/w |
| 3400lm@160lm/W | 6800lm@160lm/w | 8500lm@160lm/w | 10200lm@160lm/w | |
| Size(MM) | Ø75*552 | Ø75*1152 | Ø75*1452 | Ø75*1452 |
| Packing size(MM) | 730*260*260 | 1330*260*180 | 1630*260*180 | 1630*260*180 |
| Qty/carton | 9pcs | 6pcs | 6pcs | 6pcs |
| Led Brand | lumileds/Hongli 2835 | |||
| Beam angle | 120° | |||
| lifespan | Ta 40℃ L70>54000hrs | |||
| iP class | IP67&IP69K | |||
| IK Class | PMMA IK08/PC IK10 | |||
| Lamp body color | milky PC/PMMA Housing &304/316 Stainless steel end caps | |||
| installation mode | surface mount/suspension mount | |||
Details

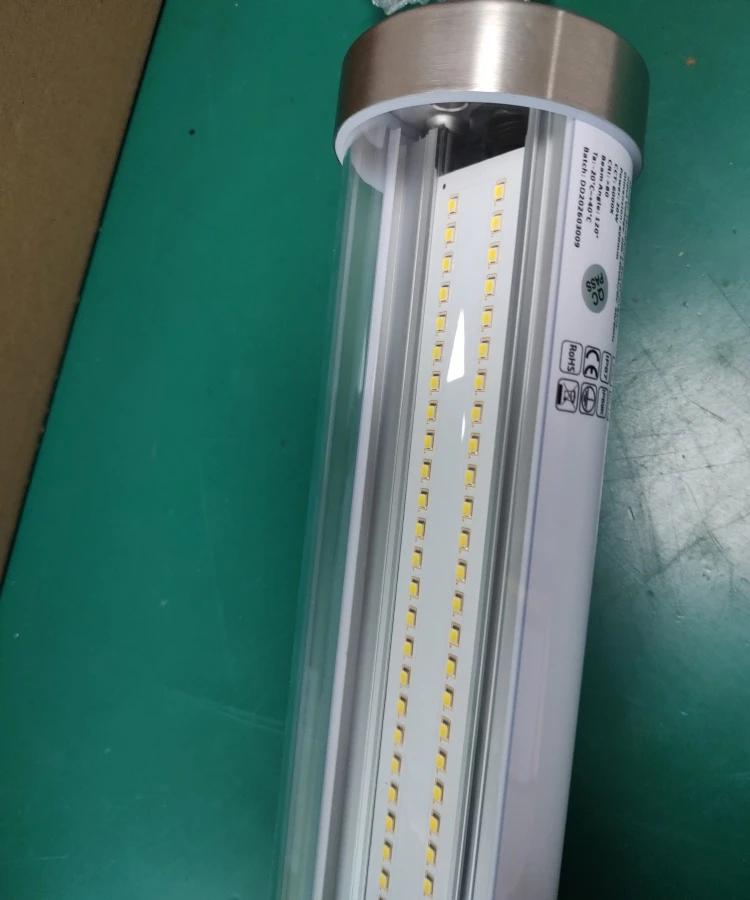

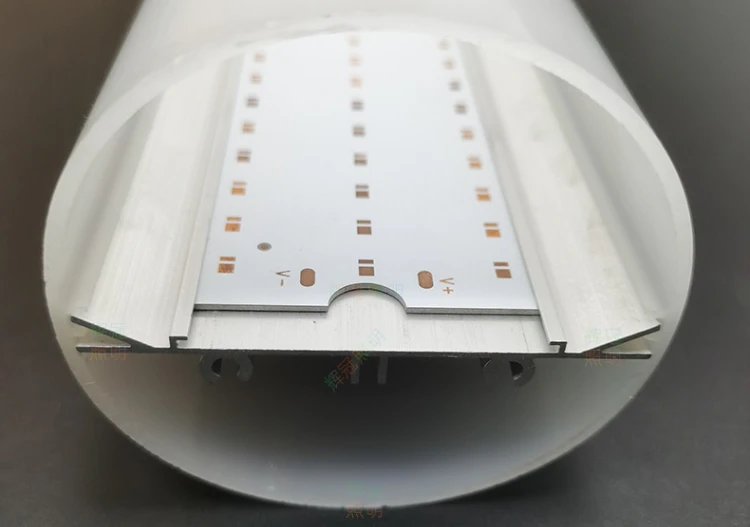

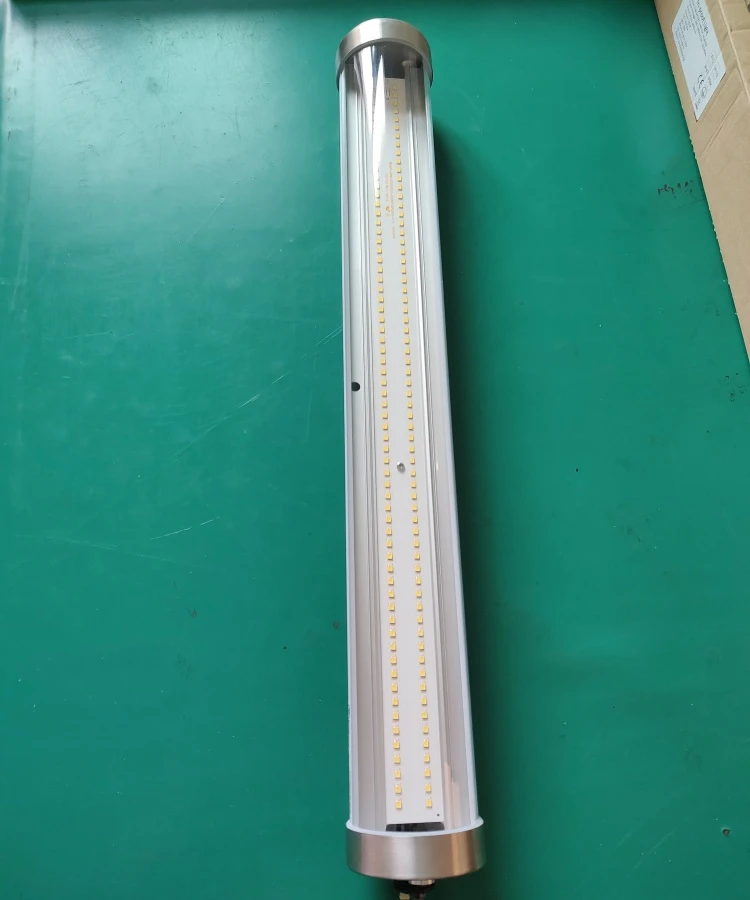

Internal aluminum profile display
extra-large light-emitting surface;
superior heat dissipation;
and exceptionally stable working force.

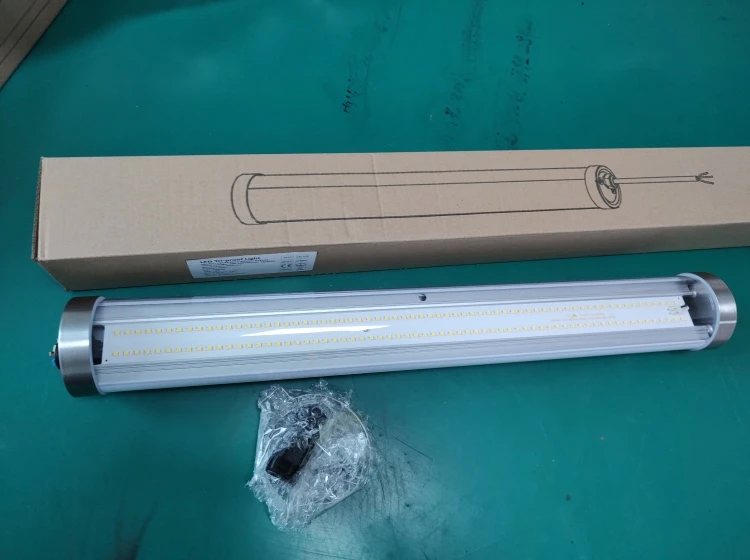

Individually packaged

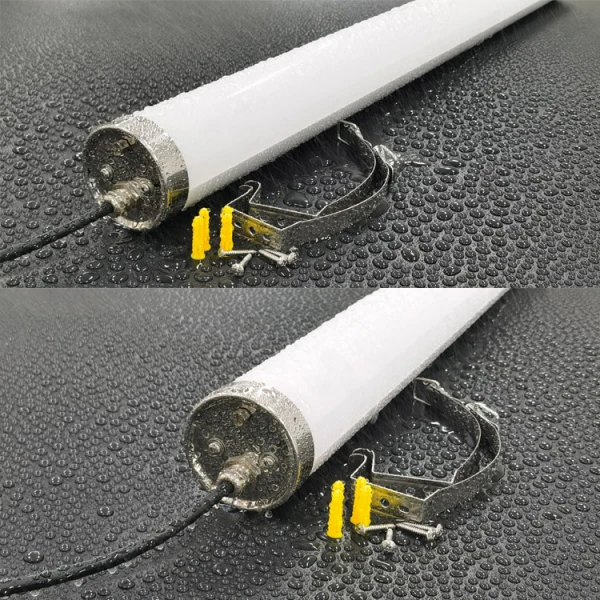

Complete accessories: 304/316 stainless steel end caps; M20 waterproof plug.
Stainless steel slings are optional.


Waterproof performance test

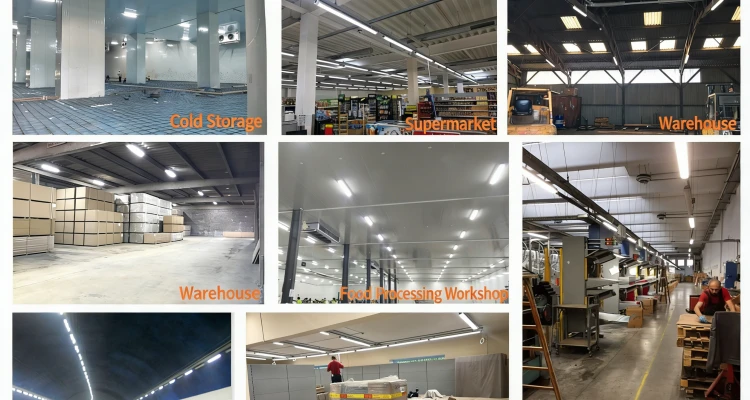

Engineering Cases

Real shot display



Installation

FAQ
Q1: What is an ammonia-resistant light tube, and how is it different from regular light tubes?
A: Ammonia-resistant light tubes are special fixtures designed specifically for farm environments like pigsties and chicken coops. Their casings are made of corrosion-resistant materials and sealed tightly, so they can effectively resist corrosion from ammonia released by animal manure and urine.
Difference from regular tubes: Regular tubes tend to corrode, yellow, and break in ammonia environments-they only last a few months. Ammonia-resistant tubes, though, can work stably for 3-5 years, with slow light decay and a long lifespan.
Suitable for: Farms, livestock houses, chemical fertilizer warehouses, and other places at risk of ammonia corrosion.
✅ Benwei ammonia-resistant light tubes have passed salt spray and ammonia resistance tests, making them suitable for harsh farm environments.
Q2: Can explosion-proof light tubes explode? Which hazardous places are they suitable for?
A: A: Explosion-proof light tubes don't "never explode"-instead, they can work safely in hazardous environments and won't act as an ignition source.
Working principle: They have high-strength aluminum alloy + tempered glass casings, and the internal circuits are sealed to prevent electric sparks from leaking out. Even if the tube breaks accidentally, it limits the explosion range and won't ignite flammable gases or dust nearby.
Suitable for: Dust environments (flour mills, feed workshops, etc.), flammable gas environments (chemical plants, gas stations, etc.), and high-humidity/corrosive environments (farms, car washes, etc.-needs to be combined with waterproof and ammonia-resistant functions).
✅ Benwei explosion-proof and three-proof light tubes have passed national explosion-proof certification (Ex nA/Ex e/Ex tb) and are suitable for Zone 2/22 areas.
