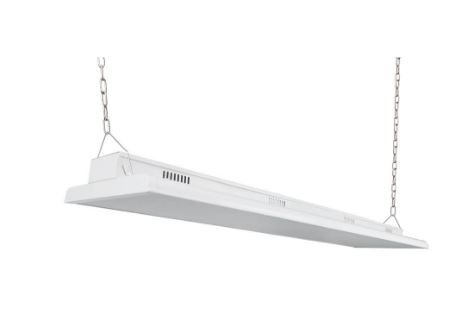

Led Linear High Bay Led Luminaires
AC120-277V / 277-480V/100-347V
5 years warranty
Integrated housing, no need assembly
Easy mounting with chain, you can also choose pendant or surface mounting
1-10V dimming function, microwave sensor and emergency battery backup available
DLC, UL, CE, SAA, certificate
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led linear high bay led luminaires in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
Led linear high bay not only affordable but also of guaranteed quality, its durable, rugged fixtures deliver bright, white, uniform light over 140lm/w, maximizing energy and practical discounts. Led linear high bay up to 54,000 hours of rated life significantly reduces maintenance labor and material costs during light life. Already have UL, DLC certification.
Product Specfication:
| Model | Power | Lumen | Input Voltage | Efficacy | Beam angle | CCT | Working Temperature | CRI | Size(mm) |
| BW-LHB2P105W-XXK-YA-EF | 105W | 13650 | 120-277V | 140LM/W | 120° | 4000-5700K | -25°C to 45°C | >80 | 585X320X73 |
| BW-LHB2P165W-XXK-YA-EF | 165W | 21450 | 585X320X73 | ||||||
| BW-LHB2P225W-XXK-YA-EF | 225W | 29250 | 585X320X73 | ||||||
| BW-LHB4P165W-XXK-YA-EF | 165W | 15750 | 1170X320X73 | ||||||
| BW-LHB4P225W-XXK-YA-EF | 225W | 24750 | 1170X320X73 | ||||||
| BW-LHB4P300W-XXK-YA-EF | 300W | 33750 | 1170X320X73 | ||||||
| BW-LHB2P105W-XXK-HV-YA-EF | 105W | 13650 | 277-480V | 585X320X73 | |||||
| BW-LHB2P165W-XXK-HV-YA-EF | 165W | 21450 | 585X320X73 | ||||||
| BW-LHB4P225W-XXK-HV-YA-EF | 225W | 29250 | 1170X320X73 | ||||||
| BW-LHB4P300W-XXK-HV-YA-EF | 300W | 39000 | 1170X320X73 |

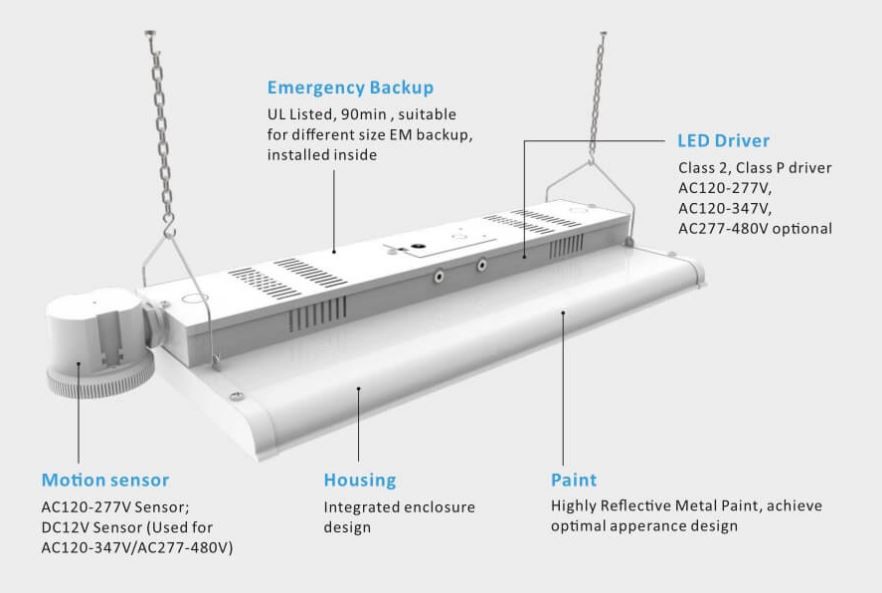

More Details:
Motion sensor
AC120-277V sensor; DC12V Sensor (Used for AC120-347V/AC277-480V)
Housing
Integrated enclosure design
Emergency Backup
UL Listed, 90 min, suitable for different size EM backup, installed inside
LED Driver
Class 2, Class P driver AC120-277V, AC120-347V, AC277-480V optional
Paint
Highly Reflective Metal Paint, achieve optimal appearance design

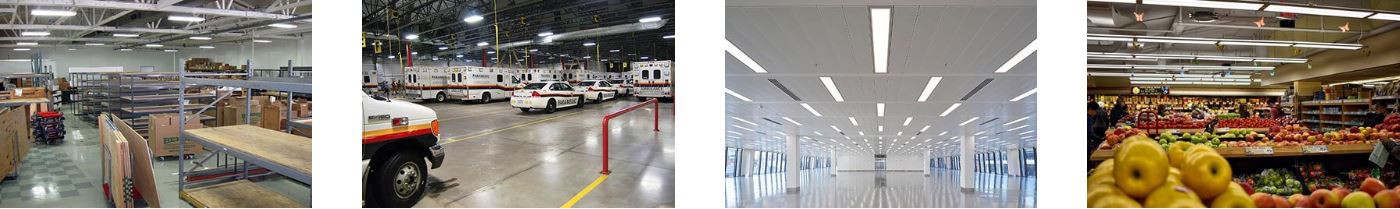

Application:
Installation method:

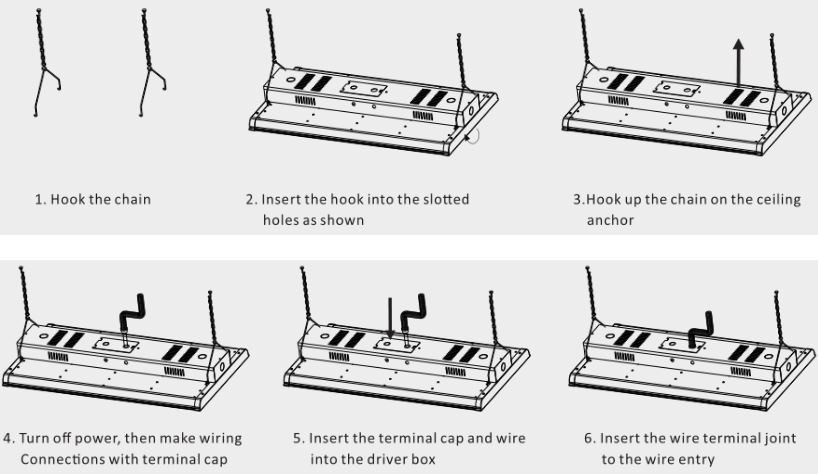

Chain Installation
1.Hook the chain
2.Insert the hook into the led linear high bay light slotted holes as shown
3.Hook up the chain on the ceiling anchor
4.Turn off the power, then make wiring
Connections with terminal cap
5.Insert the terminal cap and wire
into the driver box
6.Insert the wire terminal joint
to the wire entry

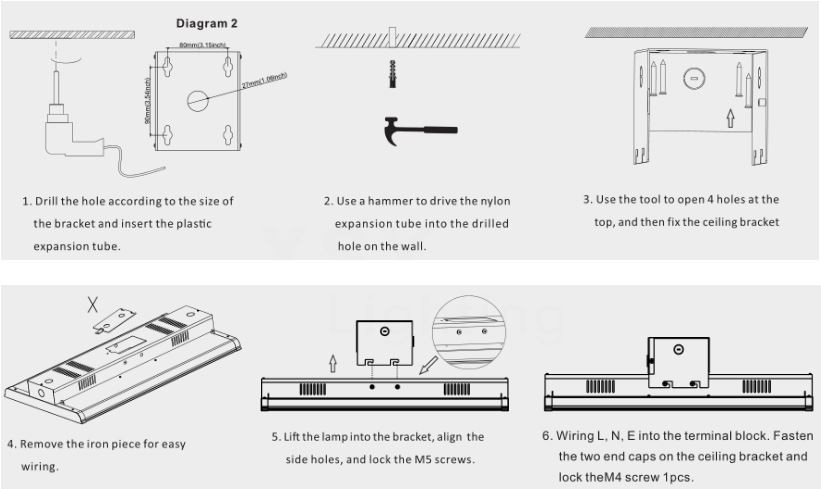

Surface Mounting installation
1.Drill the hole according to the size of
the bracket and insert the plastic
expansion tube.
2.Use a hammer to drive the nylon
expansion tube into the drilled
the hole in the wall.
3.Use the tool to open 4 holes at the
top, and then fix the ceiling bracket
4.Remove the iron piece for easy
wiring.
5.Lift the lamp into the bracket, align the side holes, and lock the M5 screws.
6.Wiring L, N, E into the terminal block. Fasten the two end caps on the ceiling bracket and lock theM4 screw 1pcs.

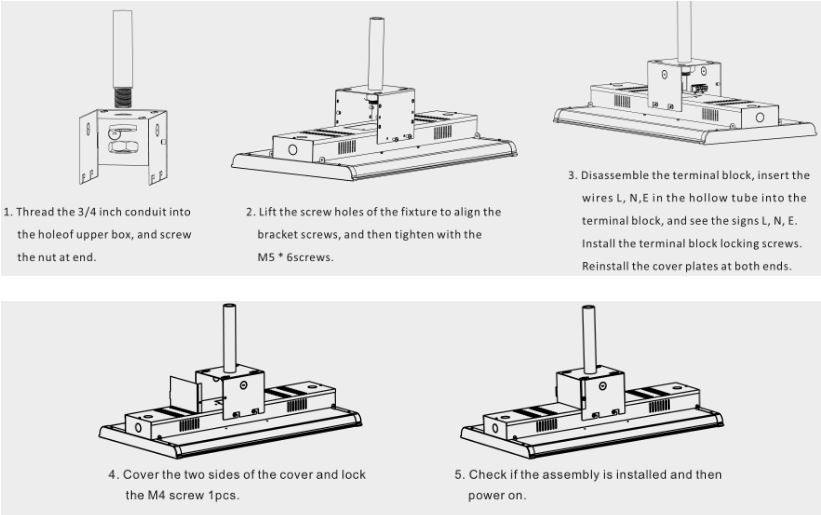

Pendant Mounting installation
1.Thread the 3/4 inch conduit into
the hole of upper box, and screw
the nut at the end.
2.Lift the screw holes of the fixture to align the bracket screws, and then tighten with the M5 * 6screws.
side holes, and lock the M5 screws.
3.Disassemble the terminal block, insert the wires L, N, E in the hollow tube into the terminal block, and see the signs L, N, E. Install the terminal block locking screws. Reinstall the cover plates at both ends.
4.Cover the two sides of the cover and lock the M4 screw 1pcs.
5.Check if the assembly is installed and then power on.
