400W Soccer Field With Lights
1.High EfficiencyUses high quality Lumileds 5050, LED High Mast Light Efficiency up to 150Lm/W. Save more energy consumption.
2.Heat dissipationFolding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
Send Inquiry
Product Introduction
400W soccer field with lights
Led Flood Light advantages:
High EfficiencyUses high quality Lumileds 5050, LED High Mast Light Efficiency up to 150Lm/W. Save more energy consumption.
Heat dissipationFolding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
.Die-cast ConnectorDie-cast connector can realize the conversion of multiple modules to single module.
.Waterproof IP66Waterproof IP66, safer for outdoor use.
Item name | 400W soccer field with lights |
Power | 400W |
Light Source | Lumileds 5050 |
Input Voltage | AC 185~305V Meanwell driver |
Color Temperature | 2700-6500K |
Light efficiency | 150-180lm/W |
Lumen | 150,000-180,000LM |
Power Factor | ≥0.95 |
CRI | Ra.≥80 |
IP defend grade | IP65 IP66 IP67 Waterproof |
Viewing angle | 15° 30° 45° 60° 90° , (10° with CREE chip, higher price) |
Materials | ADC12 die-casting aluminum |
Operating Temp. | -30ºC to +50ºC |
Applications | Stadium,outdoor lighting,Square,Football field,etc. |
Qty / CTN | 1PC |
Lifetime | 50,000 hours |
Quality warranty | 5 years |
Certificates | CE,ROHS, EMC, LVD, ISO9001 |
Detailed Images:
Test

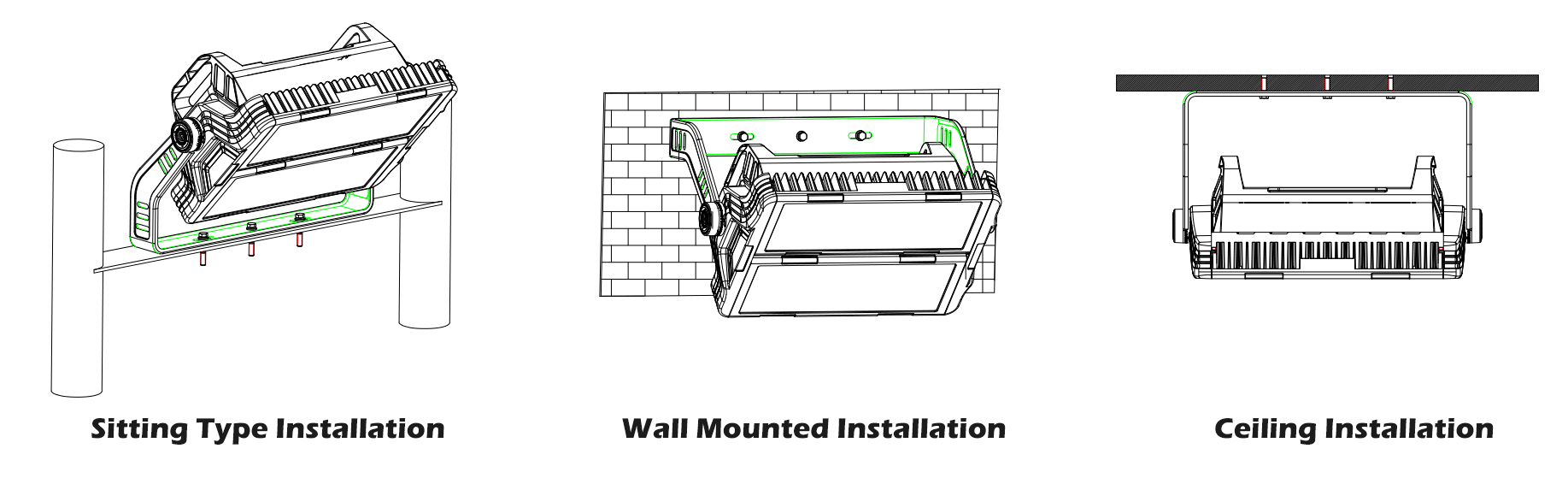

Installation:
FAQ:
Q1. Are you a manufacturer? Yes, we have our own factory with over 12 years of R&D and manufacturing experience based on ISO quality management since 2010.
Q2. Do you have any MOQ limit for led light orders?
No MOQ, 1pc for sample checking is available.
Q3. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q4.I have a stadium/sport field ,what's your suggestion?
A: please give me the below information:
1. the size of the sport area.
2. the installation height for light.
3. the requirement of the illumination.
