LED Softball Field Lights
1. With 300W - 1000W power;
2. Total luminous flux up to 150lm/W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80 optional;
4. High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance;
5. Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide;
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led softball field lights in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
LED Softball Field Lights
Product Features:
1. With 300W - 1000W power;
2. Total luminous flux up to 150lm/W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80 is optional;
4. High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance;
5. Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide;
6. Professional anti-overflow hood to effectively control spillage and avoid light pollution;
7. Protection grade IP67, IK08, resistance to 17 winds, no fear of outdoor harsh environment;
8. Maximum surge voltage (T3) Vmax 20KV.
Product Specification:
LED Softball Field Lights
| Watt | Model | Lumen | Color temperature |
| 300W | BW-FLR-300W | AC185-305V, AC200-520V, 480V IP67 150-180LM/W | 2700-6500K |
| 400W | BW-FLR-400W | ||
| 500W | BW-FLR-500W | ||
| 600W | BW-FLR-600W | ||
| 700W | BW-FLR-700W | ||
| 800W | BW-FLR-800W | ||
| 900W | BW-FLR-900W | ||
| 1000W | BW-FLR-1000W |
Detailed Images:

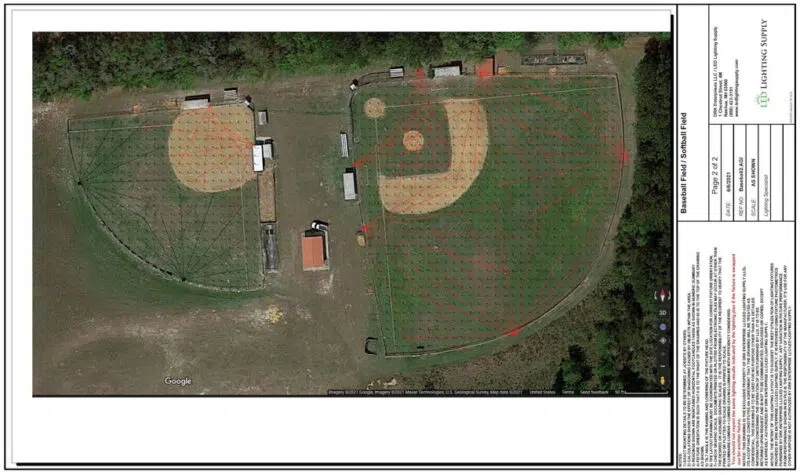

What Goes Into a Successful Softball Field Lighting Layout?A successful softball lighting layout starts with understanding the needs and usage of the playing field. Determining the proper lighting levels for both infield and outfield locations.The lighting layout takes into consideration the existing pole locations, or can suggest locations for fields without existing poles. And lastly, as the calculations are performed, it’s important to pay attention to light levels and light balance across the entire space.
How Does Softball Stadium Lighting Design Differ from Softball Field Lighting Design?It doesn’t, the end goal is essentially the same. Lights are either attached to poles or stadium structure locations. They’re aimed onto the field area to get the light levels required. Understanding the physical location of light installations is important. Just as the mounting heights, but otherwise, there is no difference.
What Are the Recommended Light Levels for a Softball Field? Professional? Collegiate? High School? Little League?
There are different levels of lighting for each level of play. Professional levels require much higher levels than little league play.
Recreational Play: 10-20 fc outfield, 20-30 fc infield
Little League Play: 20-30 fc outfield, 40-50 fc infield
High School Play: 20-30 fc outfield, 40-50 fc infield
Collegiate Play: 40-50 fc outfield, 60-70 fc infield
Collegiate Play (televised): 70 fc outfield, 100 fc infield
What Is the Ideal Pole Height to Use When Doing Softball Field Lighting Design?
There is an advantage that high poles have over low poles. It’s easier to create a balanced light over the space of the field. We would like to see poles 30 feet or higher when we perform a lighting plan on any outdoor sport field.
Test
