LED Sports Lighting Sport Field
Input Voltage：AC85-305V
Driver : Meanwell driver
PF : >0.95
LED：CITIZEN COB
CRI：>70/80/90
Light Effiency：135lm/W
Heat sink : 1070 Pure Aluminum
Beam Angle : 15°/23°/38°/45°/60°
IP Rating：IP65
Warranty：5 Years
Certification: ETL/DLC/CE/ROHS
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led sports lighting sport field in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
BW LIGHT LED Sports lighting use pure 1070 aluminum and cold forging craft. Unique reflector cup design can efficiently reduce the glare effect.
High lumen efficiency, around 120lm/w, can perfectly replace 500-1200W MH or HID ficture. Energy saving up to 70%, Instant on/off operation.
Tempered glass, high light trans mittance and corrosion resistance, A glass refractor has a much lower aluminum or plastic.
Module design, easy repairement when any damage caused high CRI, CRI90/80 are available L80 rated for 50,000hrs@25°（<20% lumen depreciation）
Product Specfication:
| Model No | BW-R-480W | BW-R-600W | BW-R-720W | BW-R-960W | BW-R-1200W | BW-R-1440W |
| LED Power | 480W | 600W | 720W | 960W | 1200W | 1440W |
| LED Type | CITIZEN | |||||
| Efficiency | 135lm/w | |||||
| Input Voltage | AC100-305V | |||||
| Material | Aluminium + Tempered glass | |||||
| Beam Angle | 15723°/38o/45o/60° | |||||
| CRI | >70/80/90 | |||||
| CCT | 3000 K/4000K/5000 K/5700K | |||||
| Working Life-span | >50000hr | |||||
| Working Temperature | -20°C -+ 55°C | |||||
| IP Rating | IP65 | |||||
| Warranty | 5 years | |||||
| Dimension(mm) | 376x408x435 | 481x508x546 | 481x508x556 | 592x596x624 | 625x640x626 | 712x711x702 |
More Details:
Sports Lighting Dimension
LED Stadium Light Optics System
The reflector cup design encompasses each optic to reduce spill light without compromising the light within the concentrated beam.
This glare control has the ability to reduce the candela per m² outside of the beam by 92% while affecting the lumen output of the product by less than 10%.
This results in a 37% reduction in the Glare Rating when compared to the typical LED solution.
Better Glare Control For our LED Sports Lighting
Our patented, customized optics provide advanced glare control, Honeycomb and lamp shade design with anti-glare,
can efficently reduce the glare effection to the player and then elevate the games.
Sports Field Lighting Beam Angle
15°/23°/38°/45°/60° are available.
The variety of beam angles are excellent for large venue applications and precise areas that require specialized illumination.
Multiple Installation Mode
Street adapter, Bracket installation for option
Application:

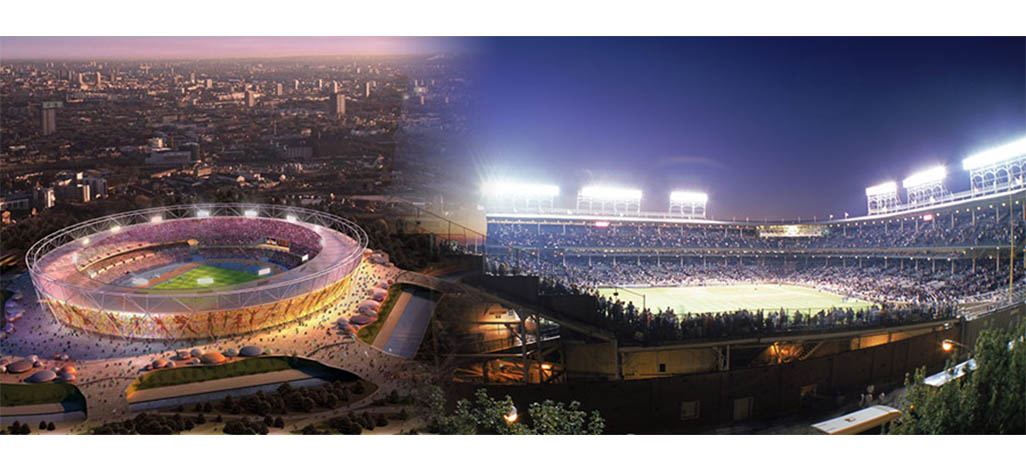

Sports lighting widely used in sports field, large gymnasium, stadium, wharf, highway, village, court, toll stations,
airport, plaza, pathway, architecture, industrial facilities etc.
LED stadium lights from Leds Master are the best solution for sports application when comparing to metal halide, HPS and halogen, because of its high energy efficiency. Apart from saving the electricity cost, our lighting for football fields can enhance the users’ compliance.
Our LED sports lights saves up to 70% energy and lasts for 85000 hours. If you are looking for the high-power flood lights for your stadium, please do not hesitate to approach our engineer to get the free lighting design.
