Smd 2835 Rgb
Power Range: 0.2W, 0.5W, 1W, 1.5W, 2W Power Dissipation Available.
Forward Voltage: 3V, 6V, 9V, 18V, 36V.
Forward Current: 30mA, 60mA, 100mA, 150mA, 350mA.
Color Rendering Index: Ra80, Ra90, Ra95, Ra98, 99Ra.
High Light Efficacy: 220LM/W available.
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of smd 2835 rgb in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.

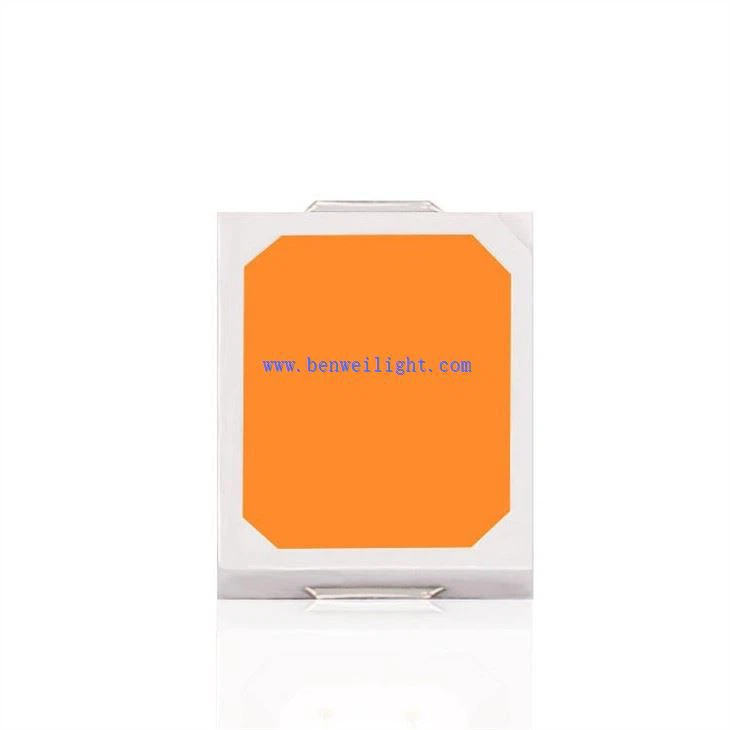

smd 2835 rgb
Product Features of smd 2835 rgb:
Power Range: 0.2W, 0.5W, 1W, 1.5W, 2W Power Dissipation Available.
Forward Voltage: 3V, 6V, 9V, 18V, 36V.
Forward Current: 30mA, 60mA, 100mA, 150mA, 350mA.
Color Rendering Index: Ra80, Ra90, Ra95, Ra98, 99Ra.
High Light Efficacy: 220LM/W available.
CCT Range: 1600-1800K, 1800-2000K, 2000-2200K, 2200-2400K, 3000-10000K.
Light Color: Red, Green, Blue, Yellow, UV, IR...
Full Spectrum 380-850nm.
Specifications:
| Standard If: 60mA Typical Vf: 3V Power: 0.2W | |||||
| Color | CCT(K) | CRI(Ra) | 2.8-3.4V @60mAlm | Part Number | Efficacy(lm/w)@60mA |
| Warm White | 2900-3200 | 80 | 26-28 | BWS2835E13C306026A | 140-150 |
| Neutral White | 3800-4200 | 80 | 28-30 | BWS2835E13C406028A | 150-160 |
| Pure White | 4700-5300 | 80 | 28-30 | BWS2835E13C506028A | 150-160 |
| Pure White | 5500-6000 | 80 | 30-32 | BWS2835E13C556030A | 150-160 |
| Cool White | 6000-6500 | 80 | 30-32 | BWS2835E13C606030A | 140-150 |

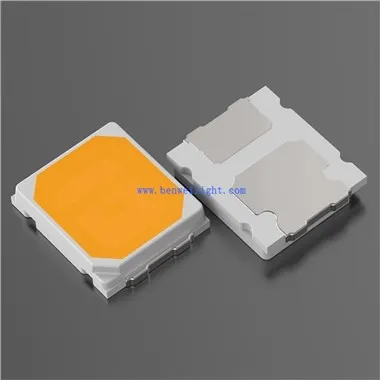

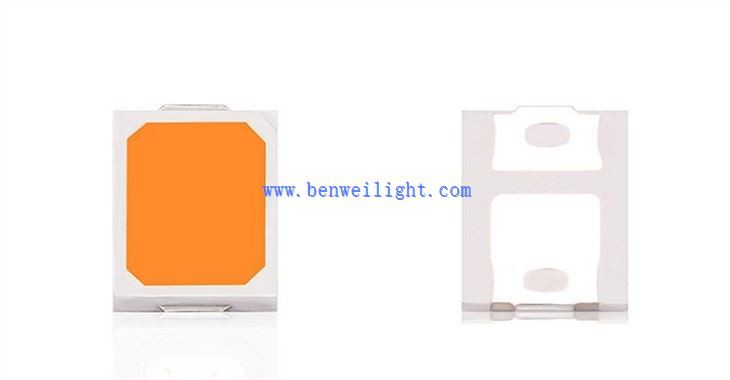

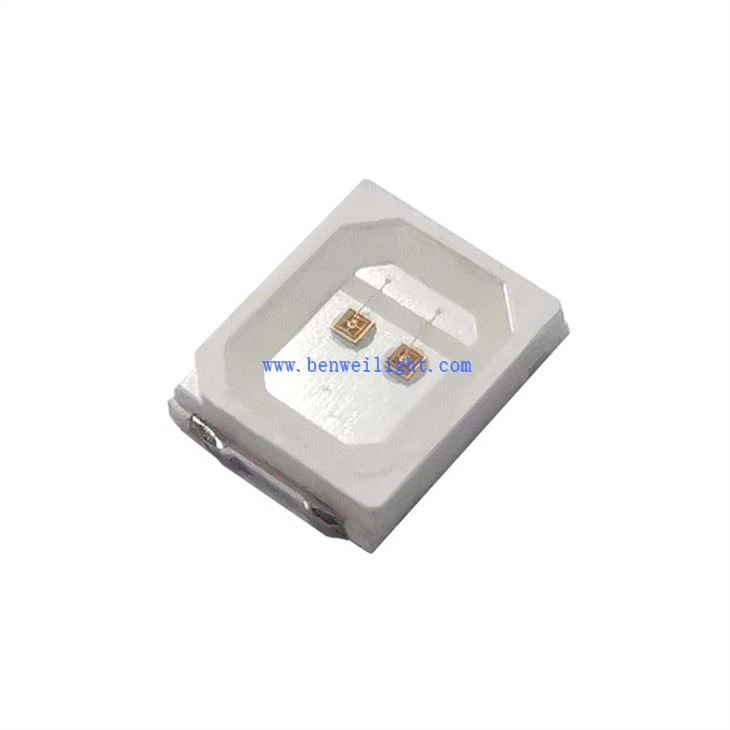

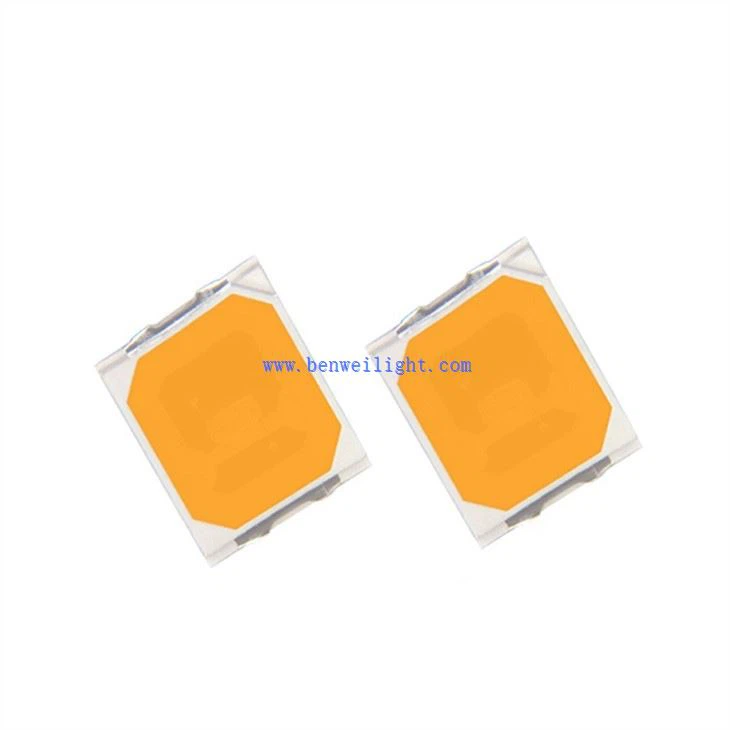

More pictures:
Please read the following notes before using the product:
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 The LEDs should be used within a year.
2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.
2.5 The LEDs should be used within 168 hours (7 days) after opening the package.
2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
