Products
LED 3030 Led Chips
Flexible design
Choice of colors
CRI: 80, 82,90,92,95
Color control of 9 silos
Excellent luminous flux
Uniform consistent light
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led 3030 led chips in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
LED 3030 Led Chips
Product Features:
Corrosion Resistant
Radiation angle: 120 °
Highest photon fluxes
Luminous flux: 24.1 lm
SimpleBinning solution
TLCI & TM-30 specified
Specifications of LED 3030 Led Chips:
| Product Name | 1W EMC 3030 SMD LED | Product Model | HQS-3030EW420150R8 |
| Power Dissipation | 1.05W | Color Rendering Index | 80 |
| Forward Voltage | 2.8-3.4V | Viewing Angle | 120° |
| Forward Current | 350-500mA | Operating Temperature | -40~+60 ℃ |
| Luminous Flux | 140-150LM | Storage Temperature | -40~+85 ℃ |
| Color Temperature | 4000-4500K | Soldering Temperature | 260℃ |

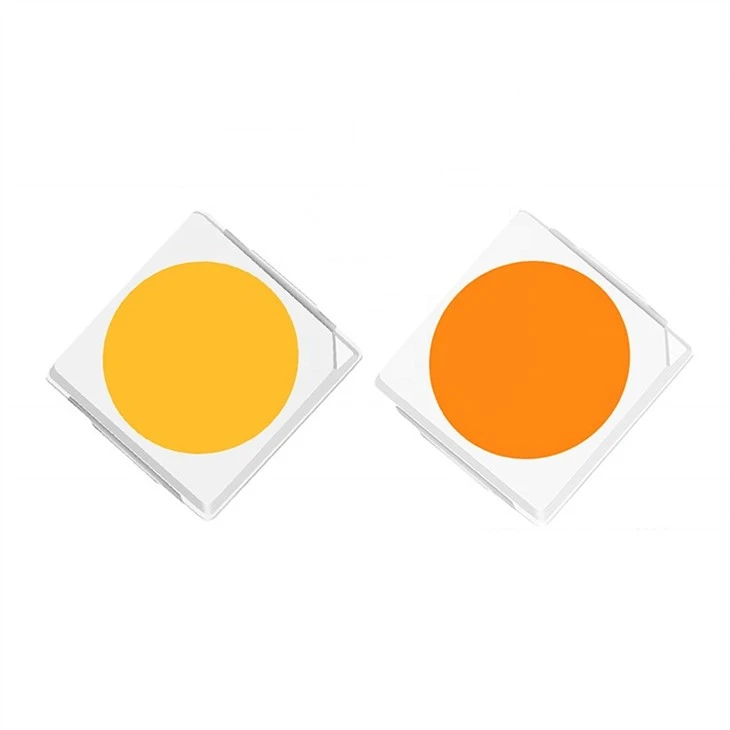

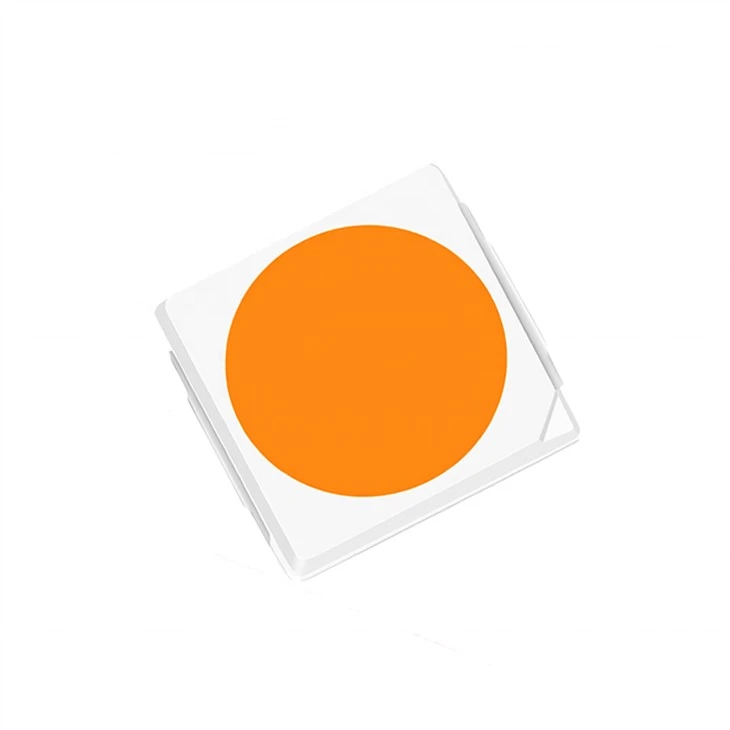

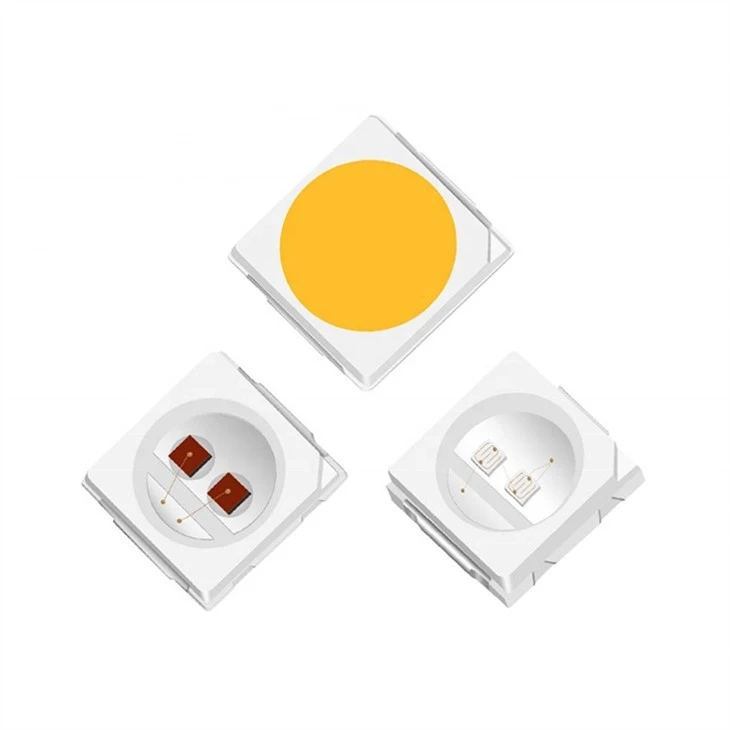

More pictures:
Why SMD:
SMD LED chips can have up to 3 diodes on a single chip, with each diode having an individual circuit. Each circuit has one cathode and one anode, leading to 2, 4 or 6 contacts in a chip.
This alignment is the reason why SMD chips are more versatile compared to COB. The chip can contain a red, green, and blue diode. By using these three diodes, you can create any color simply by adjusting the output level.
SMD chips are known for their brightness, and it can produce 50 to 100 lumens per watt.
The chip is protected with phosphor powder and looks like yellow or orange. The yellow one usually emits daylight white (6000-6500K), and the orange one generally emits warm white light (2700-3500K).
Hot Tags: led 3030 led chips, China, suppliers, manufacturers, factory, buy, price, best, cheap, for sale, in stock, free sample
