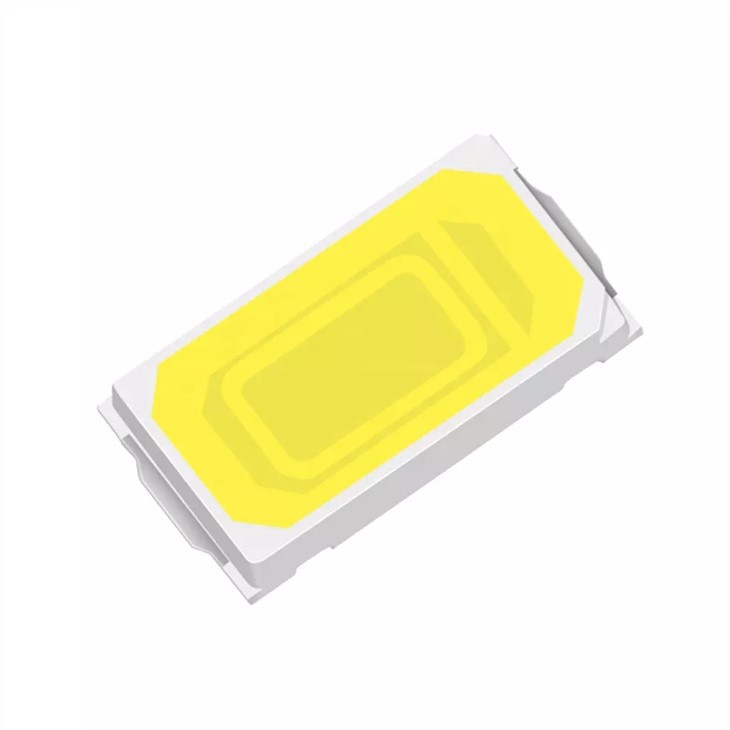

Led Chip High Power
Color temperature: 2800-7000K
Chip material: InGaN
Color rendering index: 80±3
Reverse current: 5μA
Luminous color: warm white, positive white, neutral white, cool white
Forward voltage: 3.0V
Viewing angle: 120°
Chip: Sanan, Epistar, CREE
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led chip high power in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
led chip 5730
Product Features of led chip 5730 :
Size: 3.0*1.4*0.9mm
Color temperature: 2800-7000K
Chip material: InGaN
Color rendering index: 80±3
Reverse current: 5μA
Luminous color: warm white, positive white, neutral white, cool white
Forward voltage: 3.0V
Viewing angle: 120°
Chip: Sanan, Epistar, CRE
Specifications:
| Product Name | High CRI 0.5W LED SMD 5730 | Product Model | BW-5730WX1055 |
| Power Dissipation | 0.5W | CRI | Ra80 Ra90 Ra95+ |
| Forward Voltage | 2.8-3.4V | Viewing Angle | 120° |
| Forward Current | 150mA | Operating Temperature | -40~+60 ℃ |
| Luminous Flux | 55-60-65-70-75LM | Storage Temperature | -40~+85 ℃ |
| Color Temperature | 2000-15000K | Soldering Temperature | 260℃ |
| 5730 LED SERIES SPECIFICATION | ||||||
| Product Name | Light Color | CCT/Wavelength | Voltage | Current | Lumen | Remark |
| 0.5W 5730 LED | Gold Yellow | 1800-2000K | 2.8-3.4V | 150mA | 55-60LM | CRI80,90 |
| 0.5W 5730 LED | White | 3000-6500K | 2.8-3.4V | 150mA | 55-75LM | CRI80,90,96+ |
| 5730 UV LED | UV | 365-370nm | 2.8-3.4V | 150mA | / | 0.5W |
| 5730 UV LED | UV | 375-420nm | 2.8-3.4V | 150mA | 2-4LM | 0.5W |
| 5730 Blue LED | Blue | 440-470nm | 2.8-3.4V | 150mA | 10-14LM | 0.5W |
| 5730 Green LED | Green | 520-530nm | 2.8-3.4V | 150mA | 40-45LM | 0.5W |
| 2835 Yellow LED | Yellow | 590-595nm | 2.0-2.4V | 150mA | 14-16LM | 0.5W |
| 5730 Amber LED | Amber | 600-610nm | 2.0-2.4V | 150mA | 12-14LM | 0.5W |
| 5730 Red LED | Red | 620-630nm | 2.0-2.4V | 150mA | 20-24LM | 0.5W |
| 5730 Far Red | Far Red | 660-665nm | 2.0-2.4V | 150mA | 8-9LM | 0.5W |
| 5730 IR LED | IR | 730-740nm | 1.8-2.4V | 150mA | / | 0.5W |
| 5730 PC Blue | Phosphor Blue | 450-470nm | 2.8-3.4V | 150mA | 20-30LM | 0.5W Customized WD,WP |
| 5730 PC Green | Phosphor Green | 510-530nm | 2.8-3.4V | 150mA | 50-70LM | |
| 5730 PC Color | Phosphor Amber/Red | 600-630nm | 2.8-3.4V | 150mA | 30-40LM | |
