High Temperature Resistant, High Lumen LED Tube

High Temperature Resistant, High Lumen LED Tube

Features Super Strong High-Temperature Resistance : Can work stably in extreme temperature environments of -20℃~120℃, fearless of harsh scenarios such as high-temperature workshops, boiler rooms, and glass factories. It completely solves the problems of rapid light decay and damage of ordinary...
Send Inquiry
Product Introduction

Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of high temperature resistant, high lumen led tube in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.






Features
  • Super Strong High-Temperature Resistance: Can work stably in extreme temperature environments of -20℃~120℃, fearless of harsh scenarios such as high-temperature workshops, boiler rooms, and glass factories. It completely solves the problems of rapid light decay and damage of ordinary LEDs at high temperatures, adapting to various high-temperature working condition needs.
  • High Lumen Output Under High-Temperature Conditions: Adopts high-efficiency high-power LED chips, with no obvious lumen decay in high-temperature environments. The luminous efficiency can reach 120-150lm/W, with sufficient and stable brightness. It replaces traditional metal halide lamps and high-pressure sodium lamps, meeting both high-temperature resistance and high brightness requirements.
  • Professional High-Temperature Resistant Packaging Technology: Adopts a dual design of high-temperature resistant ceramic substrate + high thermal conductivity aluminum substrate, combined with high-temperature resistant packaging glue and phosphor. It effectively isolates high temperatures, prevents lamp body deformation and component aging, and extends service life.
  • Industrial-Grade Fully Sealed Protection: IP65/IP67 high protection level, fully sealed shell design, effectively resisting dust, steam, chemical vapor and high-pressure water flushing. It is suitable for high-temperature scenarios with much dust and corrosion such as steel plants and chemical plants, and prevents internal components from being damaged by moisture.
  • Ultra-Long Service Life: L70 life ≥ 60,000 hours, can be used for more than 7 years when running continuously 24 hours a day. The service life under high-temperature environment is still more than 3 times that of ordinary LED tubes, which greatly reduces replacement and maintenance costs and reduces downtime.



  • Specification



Specification Parameters

Detailed Parameters

Operating Temperature Range

-20℃ ~ 120℃ (conventional high temperature); lamp head can withstand up to 150℃ (with remote driver)

Luminous Efficiency

120-150lm/W

Lumen Output

1800lm (12W), 3000lm (20W), 4500lm (30W), 7000lm (48W)

Substrate Material

High-temperature resistant ceramic substrate + high thermal conductivity aluminum substrate

Drive Mode

Built-in constant current drive (conventional); optional remote driver box (IP67 protection)

Protection Level

IP65 (conventional); IP67 (modular/remote driver model)

Service Life

L70 ≥ 60,000 hours

Input Voltage

AC85-265V, 50/60Hz

Flicker

Flicker depth ≤ 3%, no obvious visual flicker

Color Rendering Index

Ra ≥ 80

Compatible Lamp Holder

T8/T5 standard lamp holder, supporting hot-swap

Shell Material

High-strength anodized aluminum (anti-corrosion treatment)

Impact Resistance Level

IK08/IK10

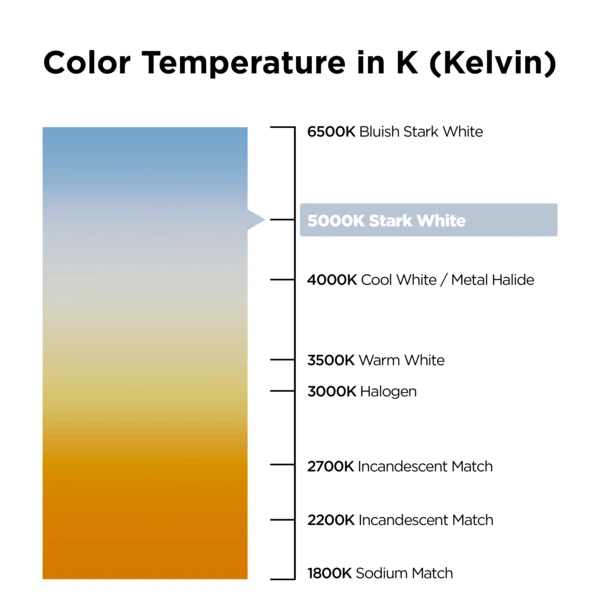

Color Temperature

4000K (neutral white), 6000K (cool white) (optional)

Warranty Period

3 years (conventional model); 5 years (remote driver model)

product key technologies

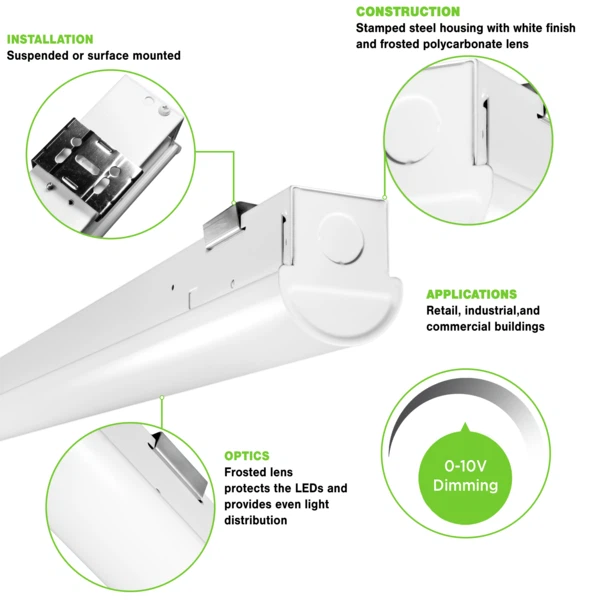

picture 5Detail 01.

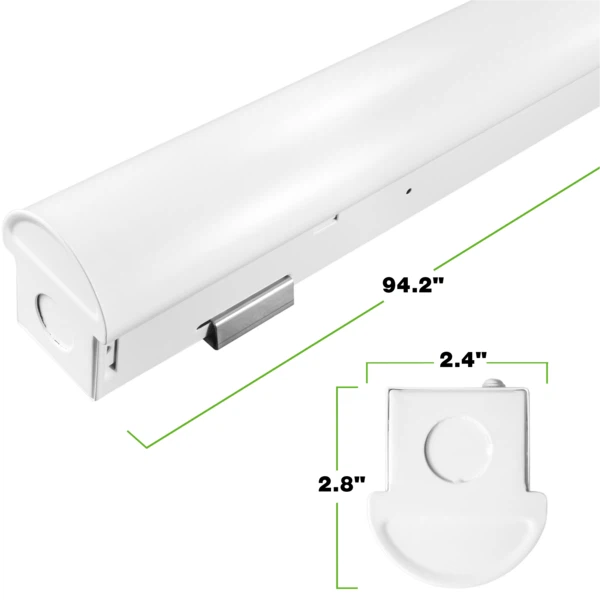

picture 4Detail 02.






fAQ



Q: Can this high-temperature resistant LED tube work continuously in a high-temperature environment of 120℃? Will it have rapid light decay?

A: It can work continuously and stably. This product is specially designed for extreme high-temperature environments and can operate normally in the range of -20℃~120℃. Equipped with a high-temperature resistant ceramic substrate, professional high-temperature resistant packaging technology and efficient heat dissipation structure, there is no obvious light decay in high-temperature environments. The luminous flux decay is ≤10% after 10,000 hours of continuous operation, which is far better than the industry average. It completely solves the pain points of ordinary LEDs being easily damaged and having rapid light decay at high temperatures, and is suitable for long-term high-intensity high-temperature working conditions.

Q: Can it directly replace the traditional fluorescent tubes currently used in my factory? Do I need to modify the lamp holder or rewire?

A: It can be directly replaced without modifying the lamp holder or rewiring, and the installation is very convenient. This product is compatible with T8/T5 standard lamp holders and supports hot-swap installation. When replacing traditional fluorescent tubes, you only need to remove the original ballast and starter, and insert the tube directly into the lamp holder to use. It greatly reduces the upgrade cost and construction time of the lighting system, and adapts to the transformation needs of existing industrial lighting systems.



Q: When used in a high-temperature workshop with much dust and steam, will it be damaged by water or dust?A: No. This product adopts an industrial-grade fully sealed design with an IP65/IP67 protection level, which can effectively resist dust, steam, chemical vapor and high-pressure water flushing. At the same time, the shell has undergone special anti-corrosion treatment, which can isolate dust and oil pollution in the workshop, avoid short circuits of internal circuits and aging of components. Even in complex high-temperature scenarios such as steel plants and chemical plants, it can work stably for a long time, so there is no need to worry about water or dust entering.

Q: Compared with traditional metal halide lamps, how much electricity can this high-temperature resistant LED tube save? Does it have an advantage in service life?

A: The energy-saving effect is significant, saving more than 65% energy compared with traditional metal halide lamps and fluorescent lamps; for example, this product with 30W can match the brightness of 100W traditional metal halide lamps. Working continuously for 12 hours a day, it can save hundreds of yuan in electricity bills every year. In terms of service life, the L70 life of this product is ≥ 60,000 hours, which is 3-5 times that of traditional metal halide lamps. It can be used for more than 7 years when running continuously 24 hours a day, which greatly reduces the frequency of tube replacement and maintenance costs, and reduces the downtime of industrial workshops for maintenance.

Q: If I need to use it near a furnace (temperature close to 150℃), can this tube meet the demand?

A: Yes, it can. This product supports remote driver box installation. For ultra-high temperature scenarios around 150℃, the driver device can be installed away from heat sources (such as walls, floors and other low-temperature areas). The lamp head can withstand extreme high temperatures of 150℃, which not only ensures stable lighting brightness, but also avoids driver damage due to high temperature. It is perfectly suitable for ultra-high temperature working conditions such as near furnaces and kilns. At the same time, the remote driver box has IP67 protection to ensure long-term reliable operation.



Applications
