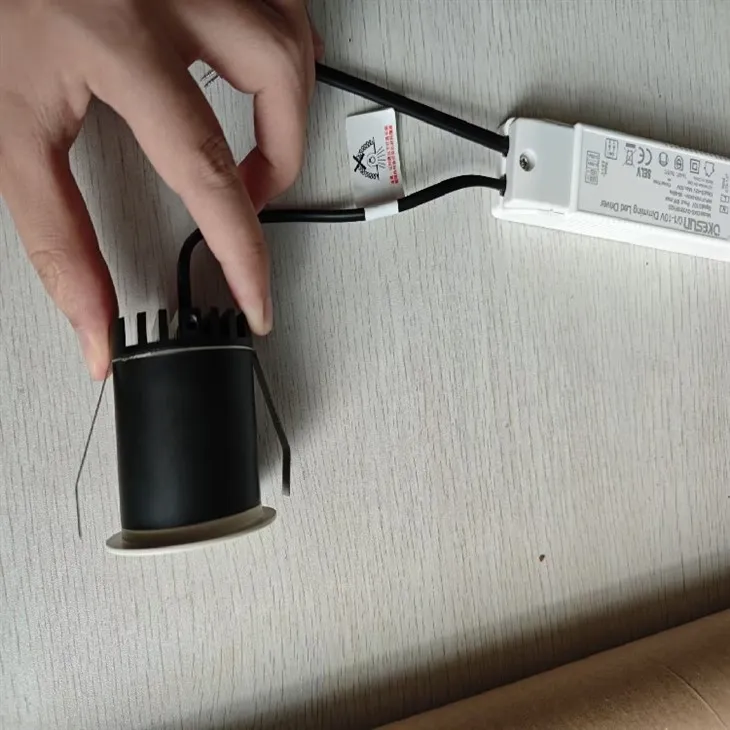

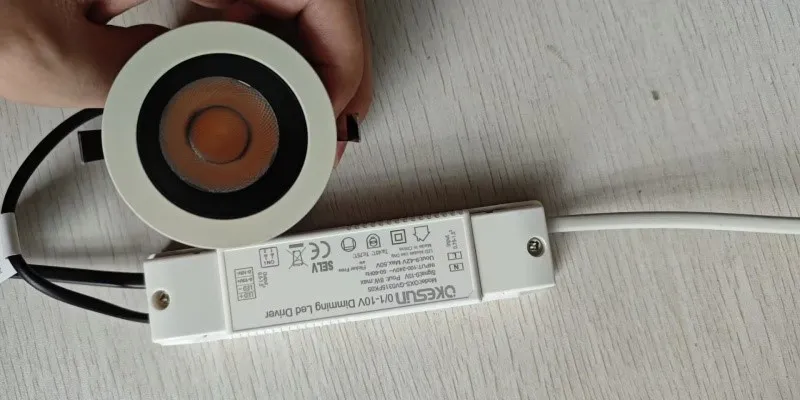

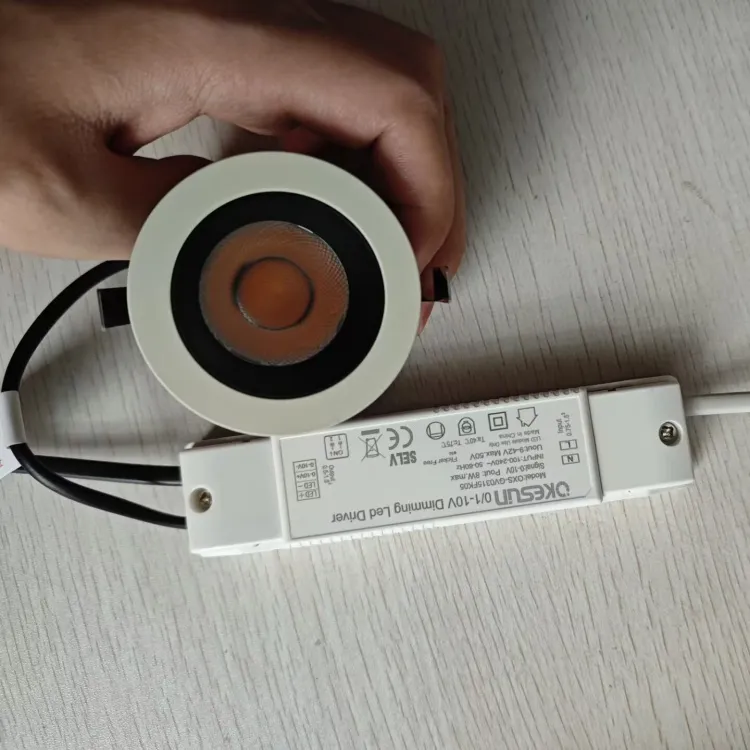

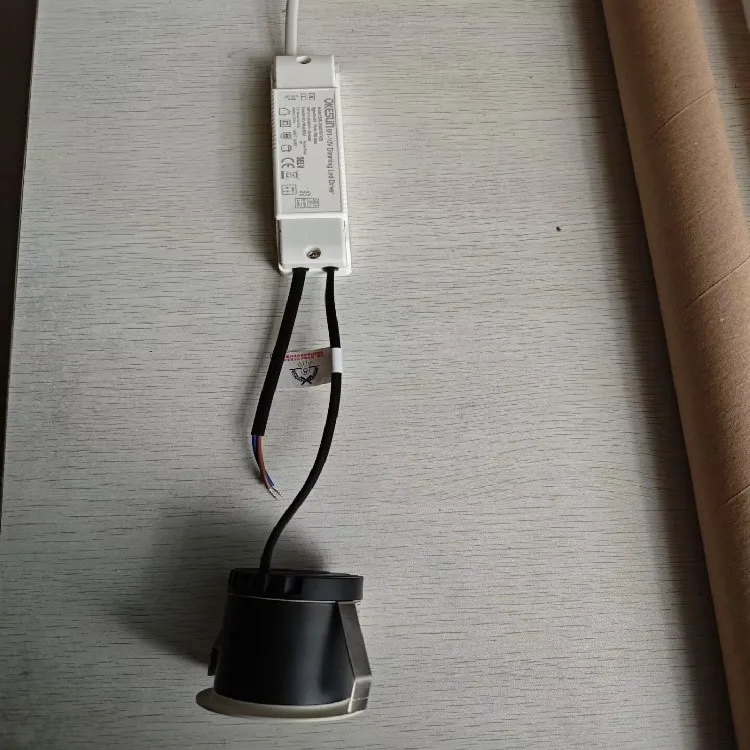

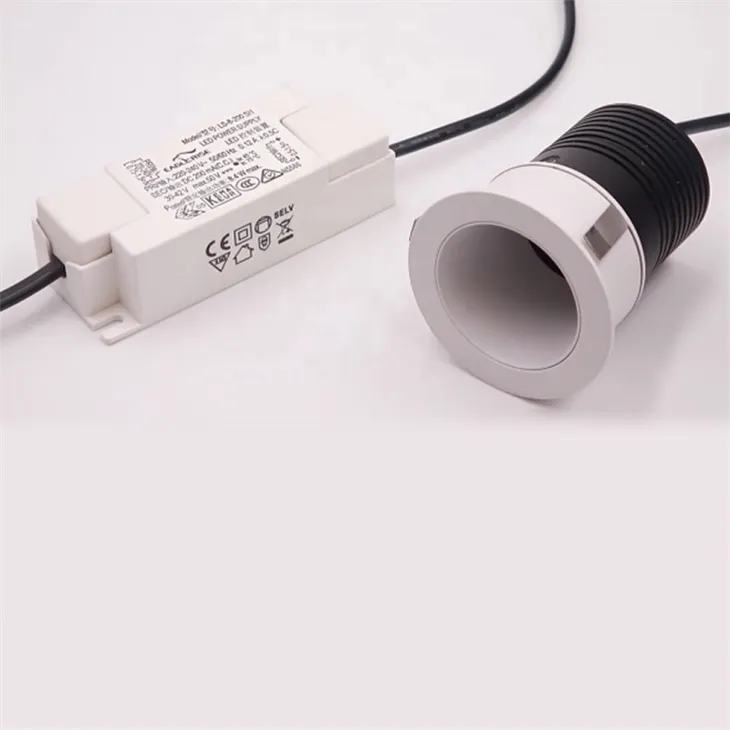

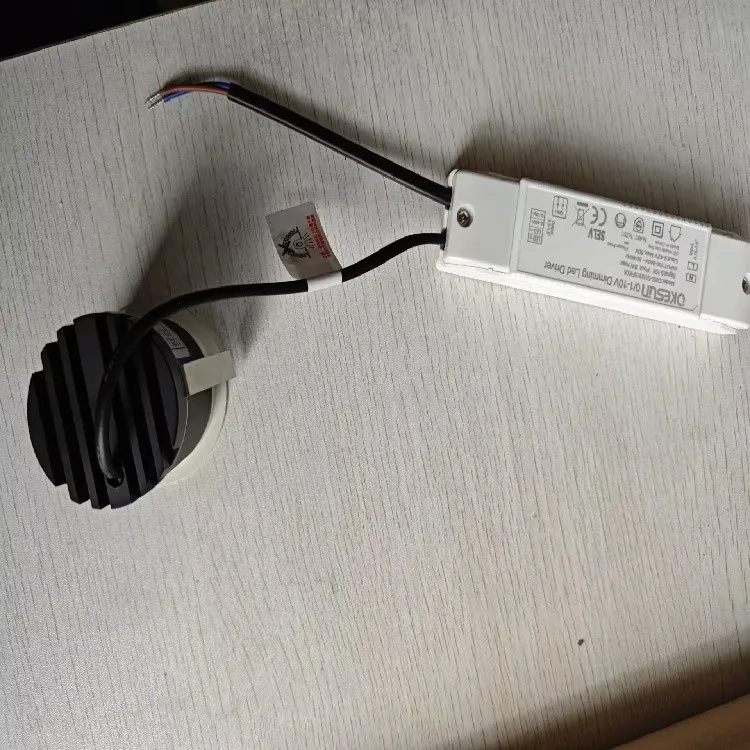

0-10V Dimming 15° Beam Angle Led Spotlight
15° Ultra-Narrow Beam – Pinpoint accent lighting with high contrast, ideal for museums, galleries, and retail.
0-10V Smooth Dimming – Flicker-free, continuous brightness control; easily integrates with lighting control systems.
High-CRI Optics – COB LED with precision lens delivers a clean spot, no stray light, and true color even at low dimming.
Commercial-Grade Integration – Standard 0-10V protocol simplifies wiring and centralized control in large-scale projects.
Durable & Low Maintenance – Efficient thermal design and quality driver ensure long life and minimal light depreciation.
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of 0-10V Dimming 15° Beam Angle Led Spotlight in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Features:
15° Ultra-Narrow Beam – Pinpoint accent lighting with high contrast, ideal for museums, galleries, and retail.
0-10V Smooth Dimming – Flicker-free, continuous brightness control; easily integrates with lighting control systems.
High-CRI Optics – COB LED with precision lens delivers a clean spot, no stray light, and true color even at low dimming.
Commercial-Grade Integration – Standard 0-10V protocol simplifies wiring and centralized control in large-scale projects.
Durable & Low Maintenance – Efficient thermal design and quality driver ensure long life and minimal light depreciation.
1
Products Datasheet
paramaters
| products |
 |
 |
 |
 |
| Beam angle | 15° 24° 36° 60° | |||
| input voltage | 100-240V AC | |||
| power | 3w 5w 8w | |||
| size | Ø45*H 44mm | Ø58*H 66mm | Ø68*H 77mm | |
| Cutout | 40mm | 50mm | 60mm | |
| CRI | >80 >90 | |||
| Luminous flux | 80-90lm/w | |||
| chips type | cob | |||
| color temperature | 2700K 3000K 4000K 5000K 6000K | |||
| SDCM | <3 | |||
| warranty | 5years | |||
2
Products Details
product key technologies
01.
0-10V/1-10V Dimming
It uses a proven 0-10V/1-10V analog dimming, supporting smooth dimming from 0% to 100% with no flickering or step changes. It can be easily integrated into building automation systems to enable scene linking and centralized control.
02.
cRI>90
Equipped with high-CRI COB light sources paired with precision lenses or reflectors, the light beam is clean and uniform, with no secondary beams or stray light. Even at low dimming levels, color rendering remains excellent.
03.
Current limiting small switch
Compatibility with Different Light Fixtures: A single power supply can support LED lights of various wattages by adjusting the current settings.
Limiting Maximum Brightness: Reducing the current lowers the maximum brightness.
Preventing Overload and Burnout: The current is limited to the safe operating range of the light fixture.
3

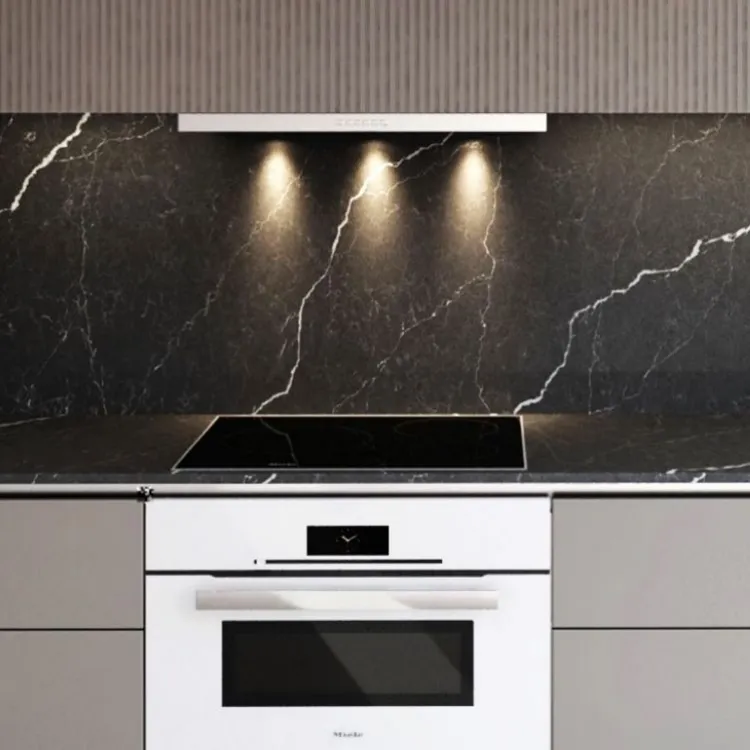

Products application
4
FAQ
Q: Q: Where is a 15° beam angle best suited?
A: A 15° beam is ideal for accent lighting in museums, art galleries, high-end retail displays, and hotel feature walls. It precisely targets objects, creating strong contrast that draws the viewer's eye.
Q: Q: What are the practical benefits of 0-10V dimming?
A: 0-10V dimming provides smooth, flicker-free brightness control from 0% to 100%. It integrates easily with building management systems, allowing centralized control and scene setting - perfect for commercial spaces like showrooms and conference rooms.
Q: Q: Does the light turn completely off at the lowest dimming level?
A: This is a common issue with 0-10V systems. At 0V, most drivers do not physically cut power, so the LED may still glow faintly and the driver continues to consume standby power. For a complete shutoff, use a dimmer with a built-in relay or add a separate switch circuit.
Q: Q: What should I pay attention to during installation?
A: Narrow-beam spotlights are sensitive to positioning. Plan fixture locations carefully before cutting holes to ensure beams hit the intended targets. After installation, adjust each light individually. Also, keep 0-10V signal wiring separated from mains power lines to prevent signal interference and dimming issues.
Hot Tags: 0-10V Dimming 15° Beam Angle Led Spotlight, China, suppliers, manufacturers, factory, buy, price, best, cheap, for sale, in stock, free sample, Lighting Tube Bulb
