Led Tri-proof Vapor Tight IP66
Excellent heat dissipation depending on whole aluminum housing
IP 66 waterproof, dust, corrosion and pressure-proof
High impact PC housing ( IK08 ), 5 warranty
Suspended or ceiling mounted installation available
Microwave sensor and Emergency battery backup driver optional
CE, RoHs, SAA, VEET, IPART certificate
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led tri-proof vapor tight ip66 in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
The batten light main body is made of PC material, suitable for use in harsh environments, with corrosion resistance, superior to ordinary tri-proof lights, optional internal emergency package or internal microwave sensor, no dark spots, uniform surface illumination and long service life 54,000 hours. The reason Benwei batten light becomes the best fixture is Convenient and Fast Wiring.
Product Specfication:
| Model No. | Light Output | Product Size | Color Temperature | CRI | Light Efficacy | Input Voltage | Frequency Range | IP Rating | Operation Temperature |
| BW-TP16W06-MS | 16W | 590*85*71MM | 4000/5000/5700K | >80 | >120LM/W | 100-240VAC (Max 277VAC) | 50/60Hz | IP66 | -30°to 45° |
| BW-TP25W06-MS | 25W | ||||||||
| BW-TP18W12-MS | 18W | ||||||||
| BW-TP32W12-MS | 32W | 1190*85*71MM | |||||||
| BW-TP35W12-MS | 35W | ||||||||
| BW-TP45W12-MS | 45W | ||||||||
| BW-TP60W15-MS | 60W | 1490*85*71MM | |||||||
| BW-TP70W15-MS | 70W |
More Details:
LED Battens Size
Batten Lighting with Microwave Sensor

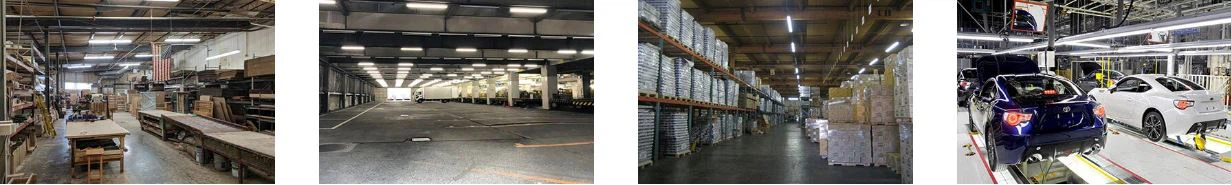

Application:
Installation method:
Suspension Mounting Installation
1.Mounted the wire rope suspend kit to the ceiling.
2.Mounted the clips to the rope suspend kit by screw, recommend the distance between the chain: 382mm-0.6m; 982mm-1.2m; 1282mm-1.5m

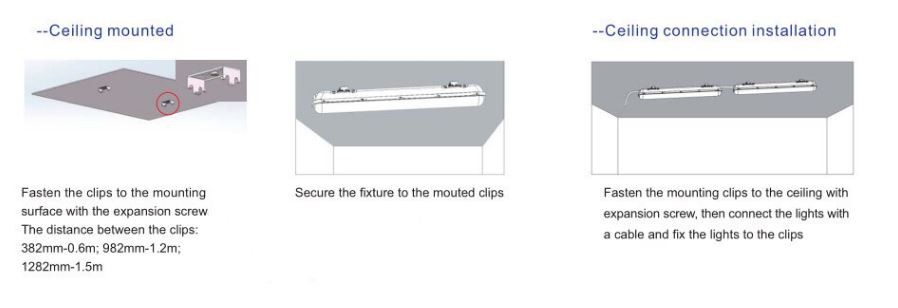

Ceiling Mounting Installation
Ceiling mounted
Fasten the clips to the mounting surface with the expansion screw. The distance between the clips: 282mm-0.6m; 982mm-1.2m; 1282mm-1.5m
Secure the led batten light the mounting clips.
Ceiling connection installation
Fasten the mounting clips to the ceiling with expansion screw, then connect the lights with a cable and fix the led batten lights to the clips.
