LED Road LED Street Light
Luminous Efficiency: 140lm/w
LEDs: Philips / CREE
SMD3030 CRI:>80
Input: AC100-277V, AC100-305V
Beam angle: TYPE II, TYPE III
Driver brand: Meanwell
IP Grade: IP66
0-10V, DALI, PWM Dimming, Photo cell are Available
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of led road led street light in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
BW LIGHT is one of the best Road Light manufacturers in China. 3 Sizes moulds, available from 60-300w, Excellent heat radiation, optical and electrical ability.
Light up with maximum safety and full respect for the environment. The optical lenses and LED chips offer great efficiency both from brightness and energy saving.
Die-cast aluminum body with pure polyester Electrostatic spray with 4/5mm super white toughened glass, Silicon rubber seal ring, Stainless screws.
Widely used in the main roads, secondary roads, highway, parking lot, bridge. it can be installed with a wall arm based on the needs of lighting projects.
Humanized design concept, easy to install and maintain
Lamps and lantern vertical installation and installed horizontally, adjustable angle
1. When vertical install led light, adjust angle is from 0~15°
2. When horizontal install led light, adjust angle is ±15°
Product Specfication:
| Model No | BW-N60 | BW-N100 | BW-N150 | BW-N200 | BW-N240 | BW-N300 |
| LED Power | 60W | 10CW | 150W | 200W | 24CW | 300W |
| LED Type | Philips Lumileds 3030 | |||||
| Light efficiency | 140lm/w | |||||
| Input Voltage | AC100-277V; 108-305V | |||||
| Material | Die casting aluminum | |||||
| Beam Angle | type n, type m | |||||
| CRI | >80 | |||||
| PF | >0.95 | |||||
| CCT | 3000K/4000K/5000K/5700K | |||||
| Working Temperature | -30°C - + 55°C | |||||
| Working Life-span | 108000H (at 25°C ambient temperature) | |||||
| Dimming | DAU / 1-10V / PWM /FIVE LEVELS DIMMING | |||||
| Options | Photocell / Surge protection device / External cable | |||||
| Color | Grey/Black/White | |||||
| IP Rating | IP66 | |||||
| Impact Resistance | IK08 | |||||
| Dimensions | 580x240x149mm | 580x240x149mm | 74QKB44xl49mm | 74Ck 344x149mm | 840x400x149mm | 84Ck400xl49mm |
| Warranty | 5 years | |||||
More Details:

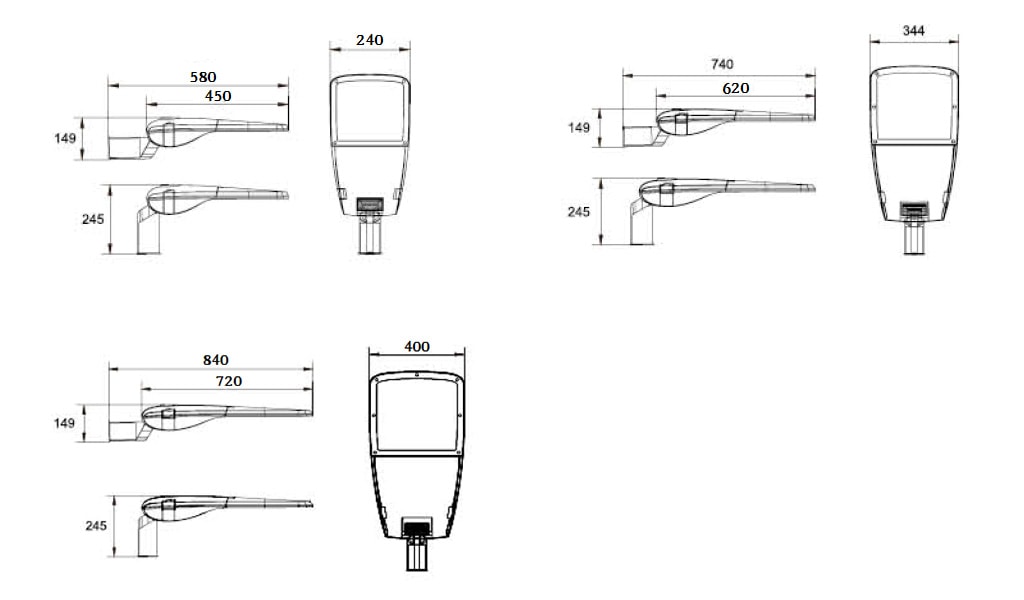

LED Street Light Dimension
Outdoor Street Light Description
Street lights use CREE / Lumileds SMD3030, The Whole LAMP Luminous Efficiency of up to 140lm / W, Meanwell Driver, the Input Voltage AC100-305V
IP66 waterproof, suitable for wet locations and outdoor applications, 5 years warranty, over 108,000 hours
0-10v, DALI, PWM dimmable, Photo cell for options.
LED Street lights Multiple Light Distribution Options
Street light has a wide range of applications and also these light distribution curves have strict requirements.
In order to meet these professional requirements, we designed two different light distribution.
Under the premise of meeting the requirements of safe and comfortable lighting and general use of the product,
the road with different road widths should be covered with less light as much as possib
Installation:
