PIR Sensor LED Street Lighting
Luminous Efficiency: 140lm/w, 160lm/w
LEDs: Philips Lumileds 3030
Input: AC100-277V
Beam angle: Type II, Type III, Type IV, Type V
Driver brand: Sosen / Meanwell
0-10V, DALI, Microwave, Photocell, PIR sensor are Available
Send Inquiry
Product Introduction
Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of pir sensor led street lighting in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.
Product Introduction:
Product Feature:
BW LIGHT is one of the best Led Street Lighting manufacturers in China. 2021 Private mold unique design,
5 Sizes moulds, available from 30-240w, Excellent heat radiation, optical and electrical ability.
Die-cast aluminum body with pure polyester electrostatic spray, Hollow heat sink design increase more airflow for beter heat dissipaition,
Imported Original Philips LEDs, with higher lumen efficacy, energy saving and better illumination effect.
CE RoHS Certificate, IP66 rated, Surge protection 10KV/20KV opitional, Excellent heat radiation, optical and electrical ability,
With 4/5mm super white toughened glass, Silicon rubber seal ring, stainless screws.
Humanized design concept, easy to install and maintain.
Product Specfication:
| Model No | BW-A30 | BW-A60 | BW-A100 | BW-A150 | BW-A200 | BW-A240 |
| Power | 30W | 60W | 100W | 150W | 200W | 240W |
| LED Type | Lumileds 3030 | |||||
| Light Efficiency | 130lm/w, 1601 m/w | |||||
| Input Voltage | AC100-277V | |||||
| Driver | Meanwell / Inventronics /SOSEN | |||||
| Heat Sink | Die-cast aluminum housing | |||||
| Protective Glass | Tempered glass | |||||
| CRI | Ra80 | |||||
| PF | >0.95 | |||||
| Power Efficiency | 90% | |||||
| Lens | Type II, Type ID, Type IV, Type V | |||||
| Light Temperature | 3000K /4000K / 5000K /5700K | |||||
| Sensor | Photocell / Microwave / PIR sensor for option | |||||
| Life Span | 50000H (at 25°C ambient temperature) | |||||
| Dimming | DALI/1-10V/PWM/FIVE LEVELS DIMMING | |||||
| IP Rating | IP66 | |||||
| Impact Resistance | IK08 | |||||
| Surge Protecton | 10kV / 20kV for option | |||||
| Working Temperature | -30°C- + 45°C | |||||
| Dimension(mm) | 398x195x77 | 521x220x76 | 521x270x76 | 578x270x76 | 643x330x77 | 643x330x77 |
More Details:

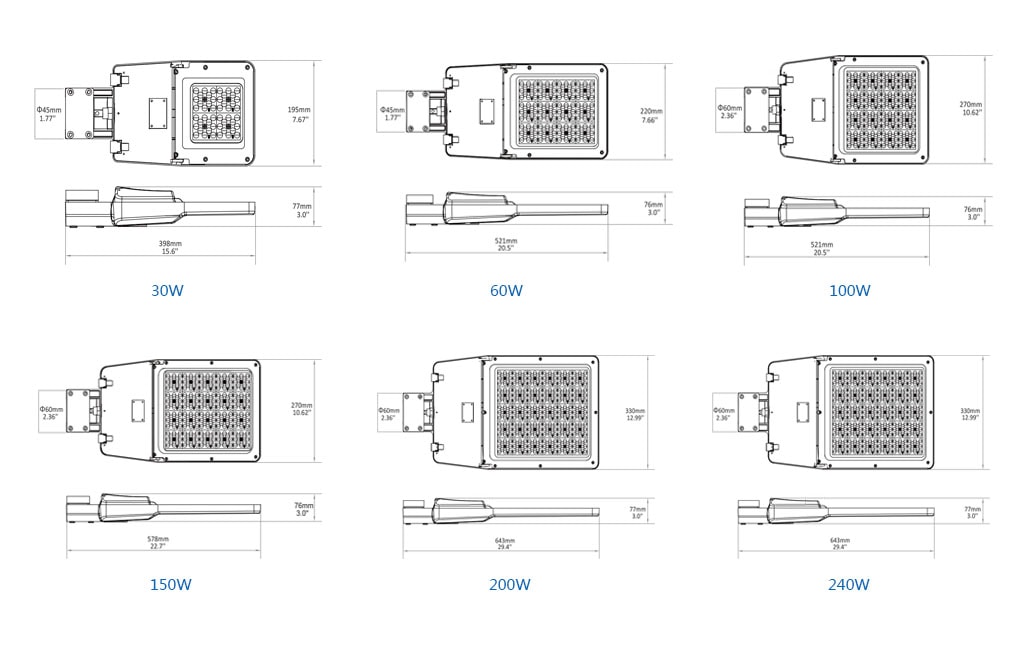

LED Street Light Dimension
Street lights Bracket Instruction

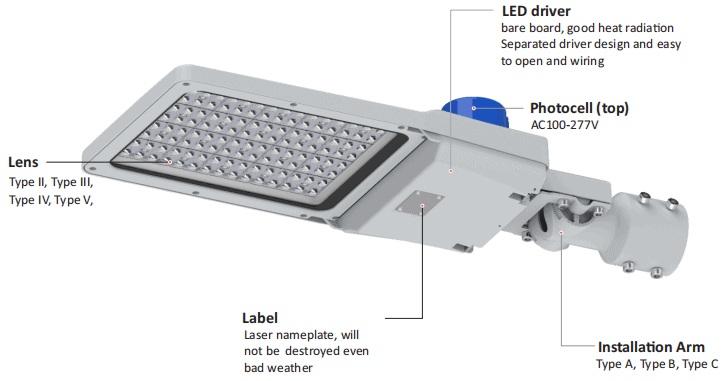

LED Street Lamp Details

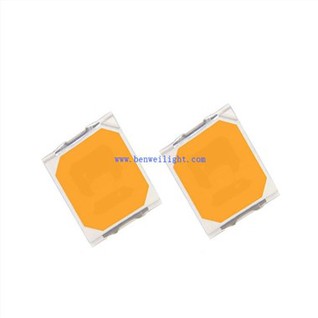

Led street lamp use Lumileds SMD3030, The whole lamp Luminous Efficiency of up to 140lm/w or 160lm/w,
Sosen / Meanwell Driver, the Input Voltage AC100-277V
IP66 waterproof, suitable for wet locations and outdoor applications, 5 years warranty, over 50,000 hours

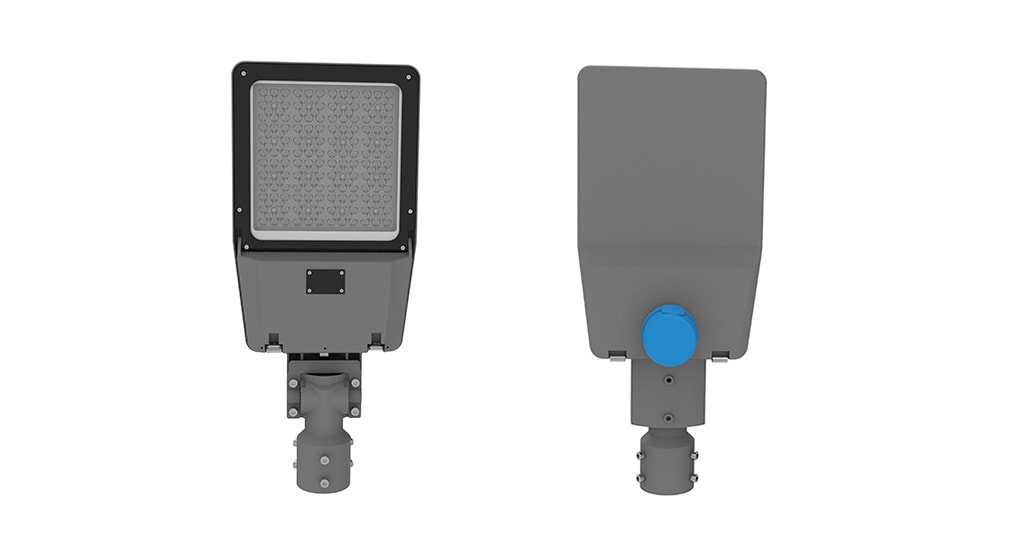

LED Street Light Smooth design and Photocell
Modern smooth design, prevent dust from affecting heat dissipation, precision die-casting molded and superior corrsion resistant powder
costing finish housing make this luminaire supports superior thermal management and self-cleaning capability.
Microwave, Photocell, PIR sensor for options
Installation:
