To guarantee a high-quality LED power supply's steady performance, long lifespan, safety, and dependability, a number of important elements must be carefully considered. This is a thorough buying guide:
1. Standards and Certification
Fundamental certification: Power supplies that have earned reputable certifications like CE (EU), UL (USA), and CCC (China) should be prioritized. Products that have these certifications are guaranteed to meet safety, electromagnetic compatibility, and other requirements.
Industry standard: More dependable products are those that meet ENEC (European Safety Certification) or IEC 61347 (International Standard for LED Driver Power Supply).
2. Energy conservation and efficiency
Efficiency of conversion: Select a power source that has an efficiency of at least 85% (high-end models can achieve above 90%). Longer lifespans and reduced heat generation are associated with improved efficiency.
Energy efficiency rating: To guarantee energy efficiency and conservation, consult the 80 PLUS or Energy Star certification.
3. Equilibrium power
Power margin: The power supply's rated power need to be between 1.2 and 1.5 times the lamp's total power. For instance, it is advised to select a 60–75W power supply if the lighting fixture's total wattage is 50W.
Matching voltage and current:
Power supplies with a constant voltage, like 12V or 24V, are appropriate for applications requiring a steady voltage, like LED light strips and advertising light boxes.
High-power lights and LED modules can benefit from a constant current power source (such as 350mA or 700mA), which ensures steady current and prevents light deterioration.
4. The function of protection
Short circuit protection (SCP), overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) are all essential.
Advanced features include anti-reverse protection, lightning surge protection (up to 4kV or 6kV), and suitability for outdoor or industrial settings.
5. Resources and procedures

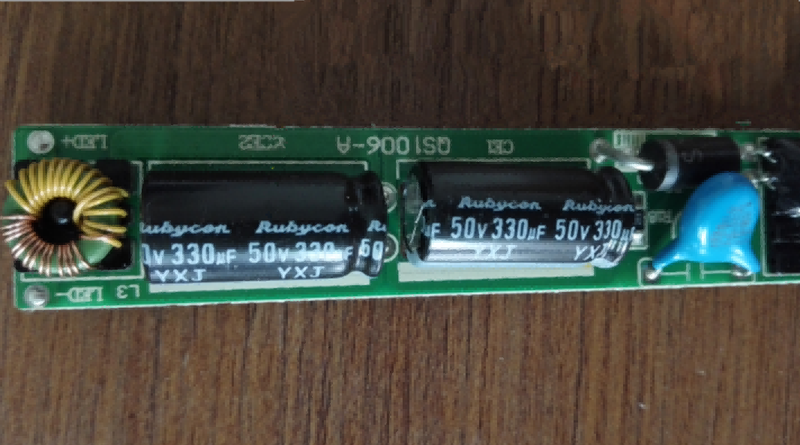

Quality of the capacitor: The lifespan is extended by using electrolytic capacitors from Japanese manufacturers like Rubycon and Nichicon.
Design for heat dissipation:
Material of the shell: Aluminum dissipates heat more effectively than plastic.
Organization: To prevent heat buildup, incorporate a ventilation hole or built-in heat sink.
PCB procedure: Make that the solder joints are uniform, the circuit board is clean, and there is no solder leakage or virtual soldering.
6. Adaptability to the environment
Level of protection:
While dustproof, indoor (IP20/IP40) materials are not waterproof.
Outdoor (IP65/IP67): Suitable for humid or outdoor settings, this product is dustproof and waterproof.
Range of temperatures: A high-quality power supply is more robust in harsh conditions since it can operate at temperatures ranging from -40 to +85 degrees Celsius.
7. Warranty and Brand
Brands that are suggested include Inventrronics, Philips, Osram, and MeanWell.
guarantee duration: To avoid short-term warranties from unbranded manufacturers (like six months), choose products with at least two to three years of guarantee.
8. Cost and value for money
Steer clear of the low pricing trap: Lower-than-market power supplies could take shortcuts (e.g., simplifying protection circuits or utilizing subpar capacitors).
Accounting for costs: Although it costs more up front, high-quality power saves money on electricity and maintenance over time.
9. PF (power factor )
We should choose Power factor >0.95 , do not choose PF <0.50 , Higher Power factor can save more energy .
10. Examples of application scenarios
LED strip: Depending on the installation area, select an IP20/IP65 power supply with a consistent voltage (e.g., 24V/5A).
Outdoor floodlight: IP67 protection, lightning protection, and a constant current power source (e.g., 36V/1A).
Commercial lighting: To lessen harmonic pollution in the electrical system, use a power source with a high PF value (≥ 0.9).
Checklist for Synopsis
Full certification (CE, UL, and CCC)
85% efficiency with a power margin
Full protection features (short circuit, overvoltage, and overcurrent)
Superior heat dissipation design combined with high-quality capacitors
Environment of adaptation (temperature, IP level)
dependable brand with a lengthy warranty
The aforementioned procedures can be used to efficiently screen premium LED power supplies, guaranteeing the lighting system's reliable and secure operation. you can visit this website http://www.benweilight.com to choose high quality LED driver and LED lights
