Title: Same Wattage, Huge Difference in Lighting Effect! LED Chip Layout: Single Row, Double Row & V-type – How to Choose? Essential Guide for Overseas Engineering Buyers

Those engaged in LED lighting foreign trade often encounter a scenario: customers compare samples of two luminaires with identical wattage and wonder why their lighting effects and applicable scenarios are completely different. Many buyers only focus on power, price and certifications, yet easily overlook a key factor: LED chip layout.

With the same housing and equal wattage, single row, double row and V-type chip layouts deliver vastly different performance in spot uniformity, irradiation range and heat dissipation. A wrong selection will not only result in unsatisfactory lighting performance on-site and constant complaints from end users, but also trigger severe light decay over time, leading to failed project acceptance. Today we will deeply analyze the pros, cons and applicable scenarios of the three mainstream layouts, helping you match products for various overseas distributors and engineering clients efficiently.

Single Row LED Chips | Cost-effective Bulk Option, Top Pick for Budget-focused Projects

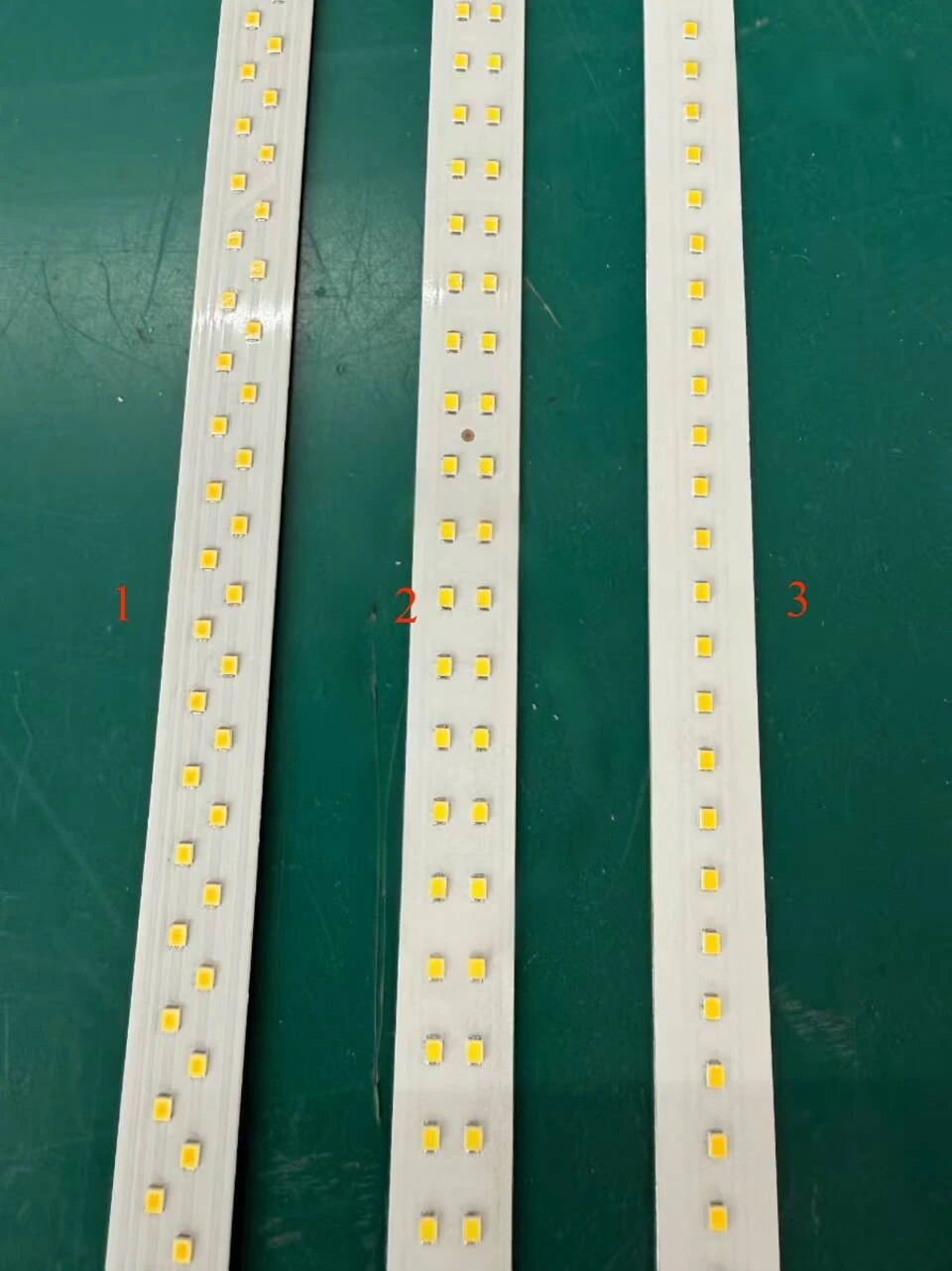

For single row layout, all light sources are arranged in a straight line along the MCPCB, making it the most widely adopted classic design worldwide.

It boasts prominent advantages in production cost. Less PCB material is required with a simple structure and moderate demand for heat sinks, delivering strong price competitiveness ideal for mass wholesale.

Optically, it features concentrated beams and decent long-distance projection. However, the horizontal irradiation width is limited. When multiple lights are installed side by side, alternating light and shadow stripes tend to appear on the ground, making it hard to achieve even illumination over large areas. Heat accumulates along the narrow strip. If manufacturers cut corners on heat dissipation for high-power models, continuous outdoor operation will accelerate light decay and shorten the service life of luminaires.

✅ Suitable Scenarios Warehouse aisles, small billboard lighting, basic courtyard lighting, auxiliary lighting for shops

✅ Target Clients Overseas distributors, local small contractors focusing on mid-to-low end mass market with priority on cost control

Double Row LED Chips | Balanced Commercial Solution, Reliable Choice for Brightness & Uniformity

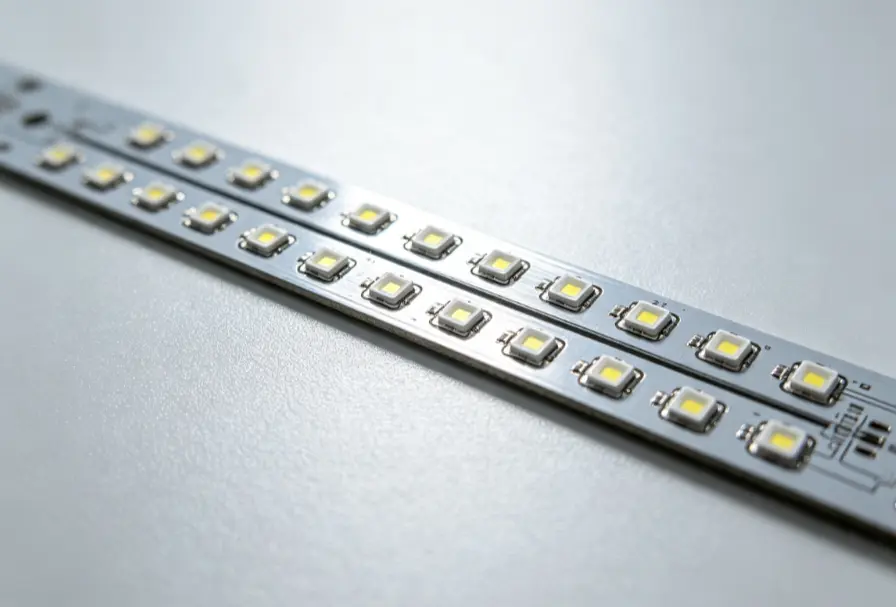

The double row layout adopts two parallel circuit tracks. More chips can be installed without changing the luminaire dimension to raise overall luminous flux.

Compared with single row versions, horizontal coverage is greatly expanded. Light from two groups of chips complements each other to form soft transition of light spots and eliminate obvious light and dark dividing lines, meeting demands of long-term intensive lighting. Naturally, higher costs come with more chips, larger PCBs and upgraded power drivers. Meanwhile, heat generated from two light groups imposes higher requirements on heat conduction. Reputable manufacturers adopt thickened heat sinks and optimized thermal channels to avoid local heat accumulation and guarantee stable long-term operation.

✅ Suitable Scenarios Industrial workshops, large warehouses, parking lots, commercial lighting, medium-sized outdoor plazas, basic greenhouse supplementary lighting

✅ Target Clients Engineering integrators, industrial lighting purchasers, small and medium-sized planting farms demanding high brightness and uniform illumination

v-Type LED Chips | Premium Optical Solution, Rising Trend for Large-scale Outdoor Projects

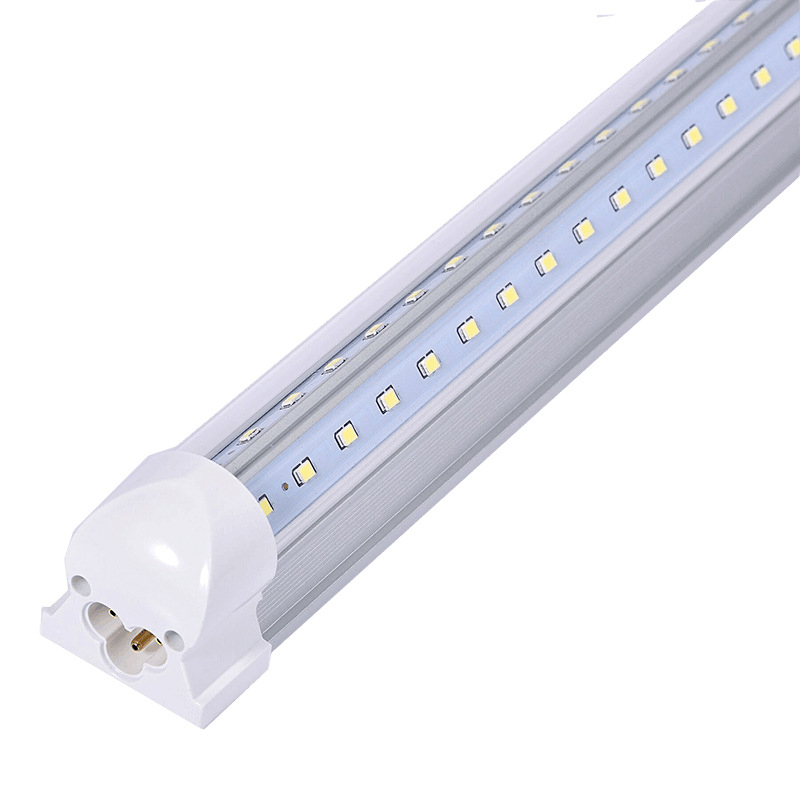

V-type chip layout is increasingly adopted in major overseas outdoor projects, while still unfamiliar to many buyers. The MCPCB is designed in a V-shaped split structure with chips extending diagonally towards both sides, breaking the limitation of linear layouts with unidirectional light output.

Its biggest highlight lies in wide-angle stereoscopic light distribution. Unlike single and double row lights that emit planar linear light, V-type structure inherently offers a broader coverage angle. Equipped with customized lenses, it achieves wide-range lighting with minimal dark zones. Under the same coverage area, fewer luminaires are required, saving customers expenses on brackets, cables and construction labor.

Heat is dispersed on multiple branches without concentrated hotspots. Under identical heat dissipation conditions, it performs better in light decay control than high-power single or double row lights. The only downside is extra costs for separate PCB mold opening and optical tuning, positioning it in the mid-to-high end segment.

✅ Suitable Scenarios Sports stadiums, ports, large logistics yards, outdoor sports fields, high-power grow lights for large farms

✅ Target Clients General contractors for large projects, stadium project operators, large-scale overseas planting bases pursuing wide coverage and long-term reliability

Intuitive Comparison of Three Layouts

🔹Irradiation Range: Single row – long vertical projection, narrow horizontal coverage | Double row – extended horizontal range for even planar lighting | V-type – stereoscopic wide angle with maximum coverage

🔹Illumination Uniformity: Single row – average, prone to light and dark bands | Double row – excellent for most commercial applications | V-type – outstanding, fewer dark zones over extra-large sites

🔹Heat Dissipation Performance: Single row – stable at low & medium power, easy heat buildup at high power | Double row – performance depends on heat sink specification | V-type – inherent advantage thanks to dispersed chips

🔹Purchase Cost: Single row – lowest | Double row – medium | V-type – relatively high

🔹Limitations: Single row – not fit for large-area long-distance lighting | Double row – limited potential to expand wide-angle performance | V-type – higher unit price, unsuitable for low-end bulk orders

Practical Selection Advice for Foreign Trade Procurement

There is no universally superior layout; only the solution matching project demands. Prioritize single row models for budget wholesale and basic indoor lighting. Double row luminaires serve as a safe bet for industrial workshops and commercial projects. For vast outdoor sites including stadiums, logistics yards and large farms, V-type layout with superior optical performance will better impress end customers. When communicating with clients, confirm installation height, irradiation area and budget in advance to recommend suitable products accurately and avoid disputes over lighting effects afterwards.
