What Are Lithium-Ion Batteries?
Editor's note: UL Research Institutes is laying the framework for energy storage systems that are safe and dependable at a time when potentially unsafe energy storage technologies may be found in everything from consumer items to transportation and grid storage. We would want to offer information on the history and present state of electrochemical safety as part of our work in this area.
A lithium-ion battery is what?
The most widely utilised rechargeable battery chemistry today is lithium-ion. The gadgets we use on a daily basis, such as electric cars and mobile phones, are powered by lithium-ion batteries.
Lithium-ion batteries are made up of a protective circuit board and one or more lithium-ion cells. Once the cell, or cells, are inserted inside a device with the protective circuit board, they are referred to as batteries.

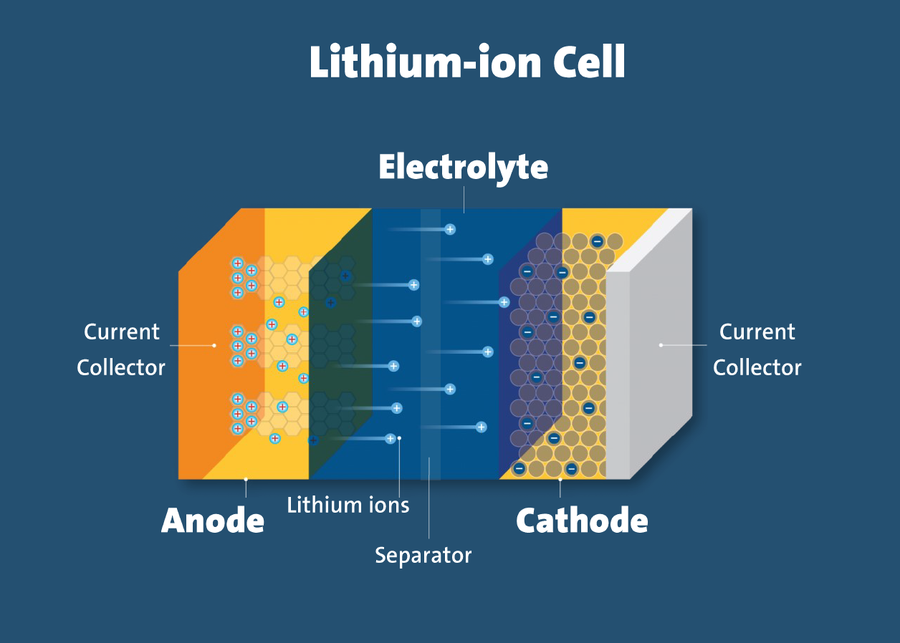

What parts make up a lithium-ion battery?
1.Electrodes: The endpoints of a cell that are positively and negatively charged. to the present collectors; attached
2. The negative electrode, or anode
3. The positive electrode, or cathode
4. An electrically conducting liquid or gel is an electrolyte.
5. Conductive foils at each electrode of the battery that are attached to the terminals of the cell are known as current collectors. The battery, the gadget, and the energy source that powers the battery are all connected by the cell terminals.
6. Separator: A porous polymeric sheet that divides the electrodes and permits the transfer of lithium ions from one side to the other.
How do lithium-ion batteries function?
Lithium ions (Li+) travel internally between the cathode and anode of a lithium-ion battery. In the external circuit, electrons go in the opposite way. The battery fuels the gadget because of this migration, which generates the electrical current.
The anode of the battery releases lithium ions to the cathode during discharge, creating a flow of electrons that assists in powering the relevant device.
In contrast, when the battery is charged, lithium ions are given out by the cathode and taken up by the anode.
