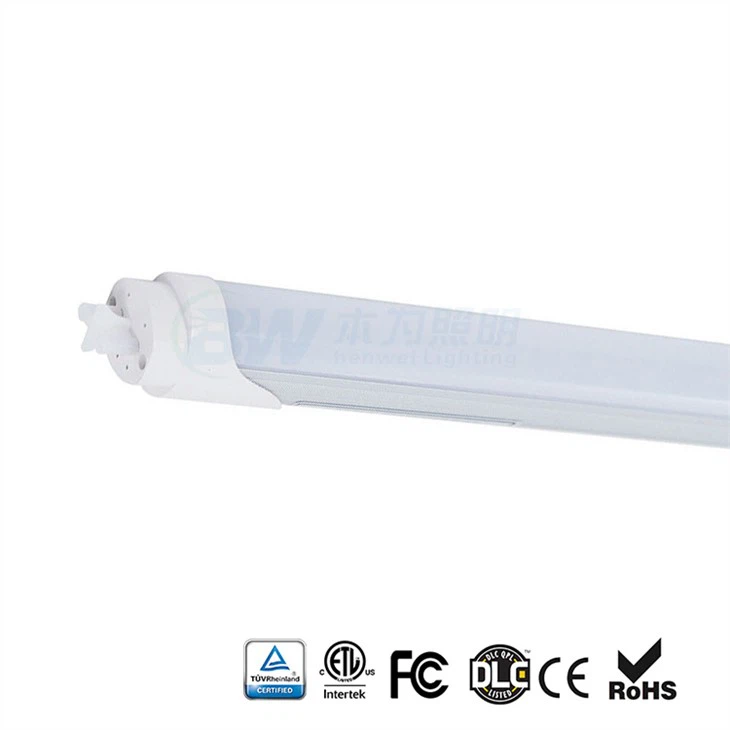

F17t8 Bulb Led

Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of f17t8 bulb led in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.

f17t8 bulb led

Product Features f17t8 bulb led:

• 【LONG LASTING TUBE】 - Benwei shatterproof t8 LED tube lights have an outstanding life rating of 50,000+ hours! These LED tube can last 20+ years depending on use, eliminating maintenance costs and reducing relamp frequency.

• 【T8, T10 and T12 Compatible】Works from 100-277V AC. They are compatible with existing T8, T10, and T12 fluorescent fixtures, making LED conversion easier than ever.




Parameters f17t8 bulb led:

More details f17t8 bulb led :

ENERGY EFFICIENT:

Opt in for energy-efficient lighting solution with very low maintenance cost!

These tubes are composed of state-of-the-art, shatterproof materials and engineered to last in a wide range of environments.

T8 LED tubes size:

Installation for round light tube:

APPLICATIONS:

LED tube parameter test requirements and methods

1. Luminance meter

Luminance meter is an instrument used to measure the brightness of a light source or the surface of an object. Using a luminance meter, you can see through the instrument

The area to be measured, sometimes this area is very small and must be observed from a long distance, so the luminance meter has

Lens and optical system, and use some form of diaphragm to isolate the measured area.

The working principle of the luminance meter is to measure the illuminance produced by the image of the surface to be measured on the surface of the photocell. This is like light

The illuminance generated on the surface of the battery is proportional to the brightness L of the measured surface and the aperture of the lens.

2. Goniophotometer

Goniophotometer is used to measure the light intensity around the luminaire, and draw the measured data in a suitable method for lighting

Engineers use. The equipment required to measure street lighting and indoor lighting fixtures is the same, and they are all polar coordinates

Photometer. What floodlights and airport signal lamps need is special equipment with long light path-angular distribution span meter.

2.1 Polar coordinate photometer

The simplest polar coordinate photometer is composed of a photovoltaic cell placed at one end of a long arm or on an arc track.

The photocell can rotate around the lamp to measure the light intensity at a known angle. The lamp is fixed on a rotating flat

On the stage, readings at any azimuth angle can be obtained. It is extremely important that only the light to be measured shines on

On the photocell. To exclude other stray light, you can add a baffle in front of the photovoltaic cell. Placement of the baffle

The position should be as limited as possible to the field of view to be consistent with the light cone emitted by the luminaire. In order to avoid the influence of stray light,

The polar coordinate photometer should be placed in a dark room.

2.2 Angular Distribution Photometer

Floodlights, translucent lamps, car headlights and other condensing lamps, they are concentrated, so the test distance should be

Much larger than astigmatism lamps. The detector should be far enough to see the entire reflective surface of the reflector. right

The narrow-angle floodlights commonly used in stadium lighting should have a measuring distance of about 33 meters. However, according to the international

It is stipulated that the test distance of car headlights is 25 meters. An important issue with long optical paths is that the photovoltaic cells should be fixed,

The lamp turns.

FAQ:

Q: How many square meters of your factory?

A: More than 2000 square meter.

Q: How many workers in your factory?

A: We have 120-300 employees.

Q: What type of your product?

A: We are one of the most professional and specialized in LED lighting products, such as led tube, led flood light, led panel light, ufo led light, tri-proof led light

Q: How to deal with the faulty for highest lumen t8 bulb?

 A:  Firstly, Our products are produced in strict quality control system and the defective

       rate will be less than 0.2%.

       Secondly, during the guarantee period, we will send new lights with new order for small quantity.

       For defective batch products, we will repair them and resend them to you or we can

       discuss the solution including re-call according to real situation.
