Street Lighting High Quality Led Fixtures For Street /road Light
video
Street Lighting High Quality Led Fixtures For Street /road Light

Street Lighting High Quality Led Fixtures For Street /road Light

LED CHIPS/DRIVER: PHILIPS3030 / MW DRIVER
POWER: 25W 35W 50W 60W 90W 120W 150W 180W 200W
INPUT VOLT : AC100-277V/50-60HZ
LUMEN: 125lm/w
BEAM ANGEL: TYPE I /TYPE II /TYPE III
WARRANTY: 5 YEARS
CERTIFICATION: ENEC CE ROHS ISO9001 ISO14001
MOQ: 1PCS
PAYMENT : T/T L/C
DELIVERY TIME: 15-20DAYS
START PORT : SHANGHAI PORT
Send Inquiry
Product Introduction

Shenzhen Benwei Lighting Technology Co., Ltd. is one of the best manufacturers and suppliers of street lighting high quality led fixtures for street /road light in China. Welcome to buy durable products for sale here and get pricelist from our factory. All customized products are with high quality and competitive price.



Product Description



A.  Light shell integrated cooling technology, efficient heat dissipation performance.

B. Dual coupling IP68 protection, high waterproof rating.

C. Intelligent constant current drive technology, breakthrough power supply life bottlenecks.

D. Use Philips3030 chips and intelligent drive, to reach high luminous efficiency, stable performance, long life. Performance-cost rate is pretty high, warranty time is 7 years.

Design

★ External Design

Various Installation Methods With Different Adapters

Multiple Light Distribution Options

Street light should fit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings.
Considering this, CHZ provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
CHZ follows the North American IESNA standard in providing the optional lens width ,TypeI, Type II and Type III.
Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road.
CHZ selects the most suitable lens for its customers according to the detailed parameters project by project.

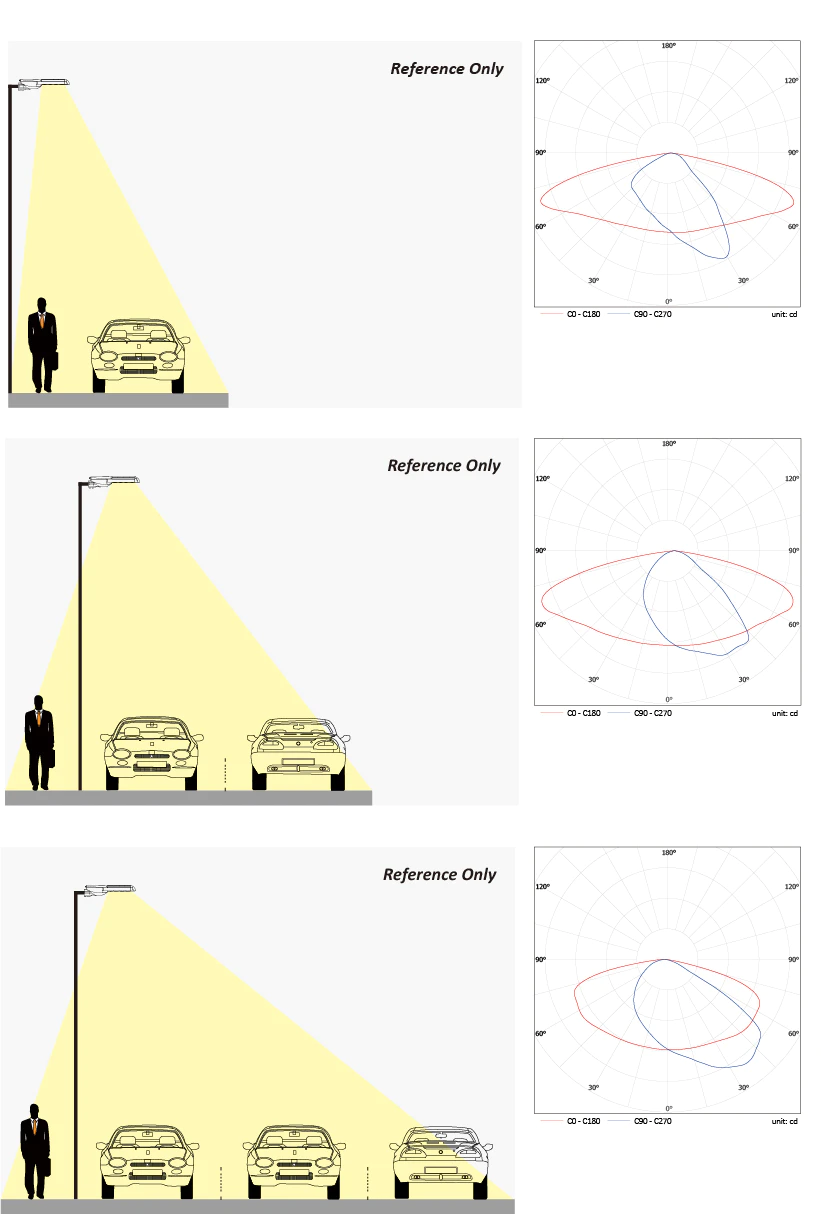

TYPE I
The Type I lens of CHZ ST23 series street light has beam angle of 50*160 degrees.
In the IESNA Standard, The Type I distribution is great for lighting walkways,
paths and sidewalks. It is generally applicable to where the mounting height is
approximately equal to the roadway width.











TYPE II
The Type II lens of CHZ ST23 series street light has beam angle of 65*155 degrees.
In the IESNA Standard, the Type II distribution is used for wide walkways, on ramps
and entrance roadways, as well as other long, narrow lighting. It is generally
applicable to where the width of the roadway does not exceed 1.75 times the
designed mounting height.











TYPE III
The Type III lens of CHZ ST23 series street light has beam angle of 80*160 degrees.
In the IESNA Standard, the Type III distribution is meant for roadway lighting,
general parking areas and other areas where a larger area of lighting is required.
This distribution is intended for luminaires mounted at or near the side of medium
width roadways or areas, where the width of the roadway or area does not exceed
2.75 times the mounting height.





A

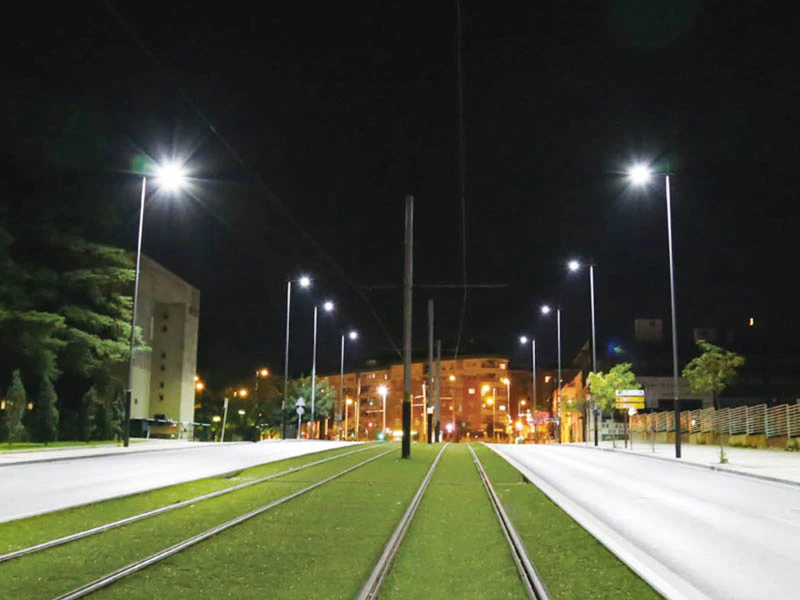

Applications

Widely used in trunk roads, highways, elevated roads, streets, bridges, sidewalks and other road lighting, as well as squares, schools, parks and other outdoor lighting needs.
