Lighting Systems Engineering for Tropical Climates: A Technical Guide to Humidity Control and Damp-Proof Lighting

By Kevin Rao November 27,2025

During an in-depth inspection at Singapore's Jurong Island Petrochemical Complex, engineers discovered that conventional LED luminaires with an IP65 rating experienced up to 37% lumen depreciation after 18 months of operation. In contrast, luminaires of the same specification with an IP66 rating maintained over 92% of their initial luminous flux. This discrepancy highlights the core challenge of lighting system design in tropical climates – humidity control directly dictates the service life of lighting equipment.

Failure Mechanism Analysis of Lighting Systems in Hot-Humid Environments

1. Water Vapor Permeation Dynamics Model
According to Fick's law of diffusion, the water vapor permeation rate in polymer materials can be expressed as:

math

J = -D·(∂C/∂x)

Where D is the water vapor diffusion coefficient (for epoxy resin, D=2.3×10⁻⁹ cm²/s). In a 35°C/90% RH environment, the time to delamination at the LED package interface due to vapor permeation is reduced to one-third of that in temperate climates.

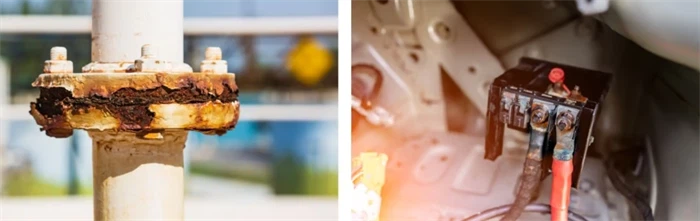

2. Electrochemical Corrosion Mechanism
The chloride ion concentration in tropical marine atmospheres reaches 0.5-2.0 mg/m³. Combining with condensate to form an electrolyte, it triggers the following corrosion reactions:

math

Anode: Al → Al³⁺ + 3e⁻ Cathode: O₂ + 2H₂O + 4e⁻ → 4OH⁻

Measured data shows that the corrosion rate of unprotected aluminum substrates in tropical environments reaches 0.78 μm/year, which is 8 times the rate in dry environments.

3. Coupled Thermal-Humidity Stress Analysis
COMSOL multiphysics simulations show that under tropical diurnal cycling conditions (25°C/95%RH → 35°C/75%RH), the luminaire interior undergoes 2.3 condensation-evaporation cycles daily, leading to:

Lens haze increasing by 1.8% monthly.

Solder joint thermal fatigue life reduced to 45% of the standard value.

Accelerated increase in the ESR of drive power capacitor.

Protection Rating Systems and Technical Standards

1. IP Protection Rating Analysis
Key parameters of the International Protection rating system for tropical climates:

2. NEMA Protection Rating Comparison
Correspondence between North American NEMA standards and IP ratings:

NEMA 4X ≈ IP66 + Corrosion resistance requirements

NEMA 6P ≈ IP67 + Prolonged immersion protection

Materials Science and Encapsulation Technology

1. Housing Material Performance Matrix

2. Key Parameters for Sealing Technology

Silicone Gaskets: Compression set ≤ 10% (150°C × 22h)

Potting Compound: Volume resistivity ≥ 10¹⁵ Ω·cm, Thermal conductivity ≥ 1.0 W/m·K

Breather Vents: Pore size 0.2μm, Airflow rate ≥ 500 mL/min·cm²

Thermal Management Engineering Design

1. Heat Dissipation Model for Humid-Tropical Environments
Heat dissipation design in tropical climates must account for reduced convection efficiency:

math

h = 2.5 + 4.1√v (Tropical environment correction factor 0.7)

Where v is the wind speed (m/s). Heat dissipation efficiency decreases by 18-25% when relative humidity > 80%.

2. Condensation Control Strategies

Active Anti-Condensation: Built-in heating strips activated when ambient temperature < Dew point + 2°C.

Passive Anti-Condensation: Double-shell structure with dry air filled in between.

Intelligent Control: Adaptive power regulation based on temperature and humidity sensors.

Industry-Specific Application Solutions

1. Explosion-Proof Requirements for Petrochemical Industry
Class I, Division 1 hazardous areas require:

Maximum Surface Temperature ≤ 200°C (T4 Rating)

Impact Energy ≥ 7J (IK08 Rating)

Grounding Resistance ≤ 0.1Ω

2. Hygienic Design for Food Processing Industry

Surface Roughness Ra ≤ 0.8μm

No Dead-Angle Design (Fillet radius ≥ 3mm)

Acid and Alkali Resistance (pH 2-12)

3. Long-Term Protection for Marine Engineering

Salt Spray Test ≥ 3000 hours

UV Aging Test ≥ 6000 hours

Biofouling Protection Design

System Integration and Maintenance Regime

1. Preventive Maintenance Schedule

Every 6 Months: Gasket elasticity check, surface corrosion assessment.

Annually: IP protection test, insulation resistance measurement (≥ 100MΩ).

Every 3 Years: Comprehensive internal inspection, thermal interface material replacement.

2. Intelligent Monitoring System
Integrated sensors monitor:

Internal Enclosure Humidity (Alarm threshold > 60% RH)

Lens Transmittance (Maintenance threshold < 85%)

Driver Power Supply Temperature (Limit 105°C)

Frequently Asked Questions (FAQ)

Q1: How much is the service life of LED luminaires typically reduced in tropical regions?
A1: According to IEEE 1789 standard statistics, in an environment with an average annual temperature of 28°C and 80% relative humidity:

IP54 Luminaires: Service life reduced to 35-50% of nominal value.

IP66 Luminaires: Service life retention rate of 75-85%.

IP68 Luminaires: Service life retention rate of 90-95%.

Q2: How to verify the durability of the protection rating?
A2: It is recommended to perform accelerated aging tests:

Temperature Cycling: -40°C ~ +85°C, 1000 cycles

Damp Heat Aging: 85°C / 85% RH, 1000 hours

Salt Spray Test: 35°C, 5% NaCl, 500 hours

Q3: What is the impact of high humidity on color temperature stability?
A3: Measured data shows that after 5000 hours of continuous operation:

Well-Sealed: Color temperature shift < 200K

Slight Leakage: Color temperature shift 500-800K (phosphor hydrolysis)

Severe Water Ingress: Color temperature shift > 1500K

Q4: How to balance damp-proof and explosion-proof requirements?
A4: Select products with dual certifications:

Explosion-Proof Certification: ATEX / IECEx Zone 1

Ingress Protection Certification: IP66 / IP67

Material Certification: NORSOK M-501 (Marine Grade)

Q5: How to evaluate economic viability?
A5: Use Life Cycle Cost analysis:

math

LCC = Initial Investment + ∑(Energy Cost + Maintenance Cost + Replacement Cost)

The ROI for high-quality damp-proof luminaires is typically within 18-24 months.

Innovative Technology Development Trends

1. Nano-Protection Technology

Superhydrophobic Coatings: Contact angle > 150°, Sliding angle < 5°

Graphene Thermal Films: Thermal conductivity ≥ 1500 W/m·K

Self-Healing Sealants: 95% performance recovery within 24 hours post-damage

2. Digital Twin Applications
Predictive capabilities using digital twin technology:

Remaining Useful Life (Accuracy ±8%)

Optimal Maintenance Time Windows

Fault Early Warning (2000 hours in advance)

3. Sustainable Design

95% Material Recyclability

40% Reduction in Carbon Footprint

Heavy-Metal-Free Design

Conclusion

Lighting systems engineering for tropical climates is a multidisciplinary field involving materials science, thermodynamics, and electrochemistry. Practice at a semiconductor factory in Penang, Malaysia, demonstrated that systematically designed damp-proof lighting solutions can reduce the annual equipment failure rate from 23% to below 3%, while lowering maintenance costs by 62%.

As former International Commission on Illumination (CIE) President Wout van Bommel stated: "In extreme environments, lighting design is no longer simply about photoelectric conversion, but the ultimate test of environmental adaptability." Through scientific selection of protection ratings, material optimization, and system integration, robust lighting systems adaptable to tropical climates can be constructed.

Against the backdrop of climate change, the reliability of lighting systems in tropical regions has become critical infrastructure ensuring industrial operations and urban functionality, requiring meticulous life cycle management from design and installation to maintenance.

References:

IEC 60529:2013 Degrees of protection provided by enclosures

ASHRAE Handbook 2021 HVAC Applications

NEMA 250-2020 Enclosures for Electrical Equipment

ISO 12944-2017 Corrosion protection of steel structures
