Can a 150W LED Flood Light Last Ten Years Without Failure? - Deep Dive into Thermal Management and Driver Technology
More than 90% of outdoor LED flood light failures come from two causes: lumen depreciation due to high temperature and driver breakdown from power surges. Whether a lamp truly lasts ten years depends not on how bright the chips are, but on how good the heat sink and driver are.
1. Thermal Management: Every 10°C Drop in Junction Temperature Doubles Lifespan
The lumen depreciation rate of LED chips is exponentially related to junction temperature (internal chip temperature). Experimental data shows: lowering junction temperature from 85°C to 75°C approximately doubles the lifespan.

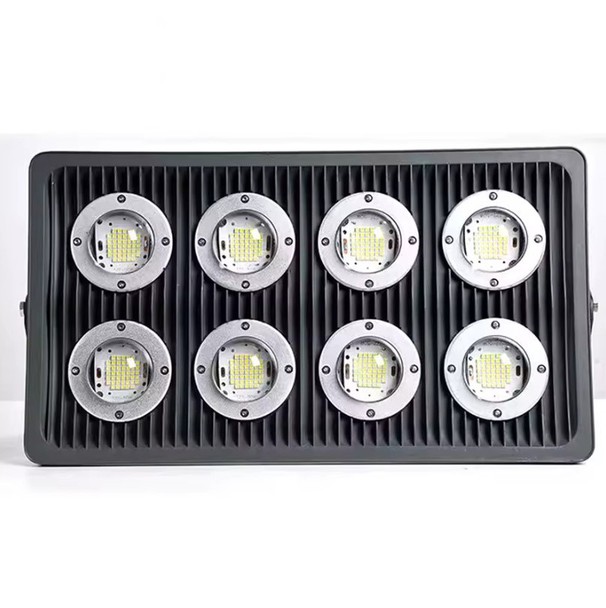

The Benwei 150W LED flood light uses a multi‑fin reinforced heat sink + air convection channel design, with a heat dissipation surface area of over 800cm². Under steady‑state operation, the measured housing temperature is ≤65°C (at 25°C ambient), with an estimated junction temperature of about 80°C.
| Thermal Parameter | Benwei 150W LED Flood Light | Cheap Generic Flood Light |
|---|---|---|
| Heat sink structure | Thick die‑cast aluminum + convection grooves | Thin aluminum or no heat sink |
| Housing temperature (25°C ambient) | ≤65°C | ≥85°C |
| Estimated junction temperature | ~80°C | ~105°C |
| Lumen maintenance at 50,000h | ≥85% (L85) | <50% |
Conclusion: A 25°C lower junction temperature can extend lifespan by 2‑3 times. This is the technical reason why Benwei confidently offers a 50,000‑hour rated life.
2. Driver & Power Supply: 10kV Surge Protection Is a Lifesaver Outdoors
The LED driver is the most vulnerable part of a flood light. Lightning strikes and grid fluctuations can generate surge voltages that destroy the driver IC in microseconds, killing the whole lamp.
The Benwei 150W LED flood light comes standard with 10kV surge protection (differential mode + common mode), far exceeding the industry typical 4‑6kV. Below is a survival rate comparison under simulated lightning surge tests:
| Surge Level | 2kV | 4kV | 6kV | 10kV |
|---|---|---|---|---|
| No protection | 60% failure | 90% failure | 100% | 100% |
| 4kV protection | 5% failure | 40% failure | 80% failure | 100% |
| 10kV protection | 0% | 0% | 5% failure | 20% failure |
Additionally, the driver features power factor ≥0.95, efficiency ≥90%, and THD ≤15% - meaning high energy utilization, low grid interference, and low self‑heating, which further helps thermal management.
3. Optical Design: 92% Transmittance Lens and Precise Light Distribution
Luminous efficacy depends not only on the chips but also on the optical system. The Benwei 150W LED flood light uses a high‑transmittance PC lens (≥92% transmittance) with secondary optical design, offering three beam angle options: 60°, 90°, and 120°.
| Beam Angle | Center Intensity (cd) | Illuminance at 10m (lux) | Best Application |
|---|---|---|---|
| 60° | ~18,000 | 180 | High‑mast poles, long‑distance projection |
| 90° | ~12,000 | 120 | Sports stadiums, courts |
| 120° | ~7,000 | 70 | Parking lots, large area flood lighting |
Uniformity: At 90° beam angle, the effective illumination area has a uniformity ≥0.7 (center/edge ratio), with no obvious hot spots or dark zones.
4. Installation & Ingress Protection: IP65 + Stainless Steel Hardware
Outdoor installation requires protection against water, dust, and corrosion. The Benwei 150W LED flood light's protection details are as follows:
| Component | Specification | Function |
|---|---|---|
| Housing | Die‑cast aluminum + electrostatic coating | Corrosion resistant, salt‑spray resistant |
| Sealing gasket | Silicone rubber | High‑temperature resistant, anti‑aging, ensures IP65 |
| Cable gland | Stainless steel | Prevents water ingress and short circuits |
| Mounting bracket | Adjustable U‑bracket | 0‑180° free adjustment, adapts to various surfaces |
| Operating temperature | -10°C to 45°C | Suitable for most climate zones |
Installation tips:
Mounting height: 8‑15m for stadiums; 4‑8m for parking lots
Spacing between fixtures: ≤3× mounting height to ensure overlapping beams
Tilt angle: avoid shining directly into eyes; 15‑30° tilt recommended
5. One‑Sentence Buying Recommendation
When choosing a 150W LED flood light, don't just look at lumens and price. Heat sink design (thick aluminum + convection), surge protection (≥10kV), lens transmittance (≥90%), and ingress protection (IP65) are the core factors that determine long‑term cost of ownership. A technically solid lamp may cost more upfront, but it pays back in electricity savings within three years and lasts ten years without replacement.
