Circuit Load Limits for Linkable T8 LED Tubes: Safety, Performance, and Scalability

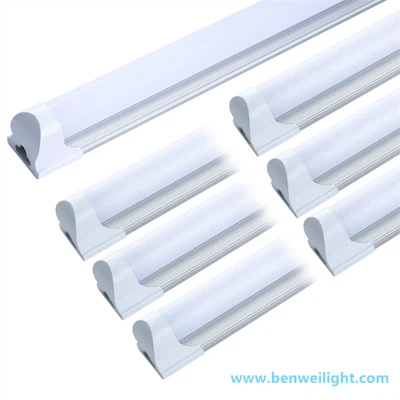

Integrated linkable T8 LED tubes promise simplified installation by enabling daisy-chaining of multiple fixtures. However, exceeding their electrical load capacity risks system failure, safety hazards, and compliance violations. Here's a technical breakdown of critical constraints and solutions:
1. Core Limiting Factors
a) Driver Output Capacity
Most integrated drivers support ≤150W total linked load (e.g., 6×24W tubes).
Critical Weak Point: Non-isolated drivers in budget tubes overheat at >80% load (≥120W).
b) Connector/Internal Wiring Gauge
18-22 AWG wire in connectors melts at >10A current (NEC Class 2 limit).
Example: 10×24W tubes @120V = 2A; @277V = 0.87A – voltage determines safe chain length.
c) Voltage Drop
3% drop rule: Max 5 linked tubes @120V (40m circuit) vs. 15 @277V.
Symptoms: Flickering in end fixtures, reduced lumen output.
2. Real-World vs. Marketing Claims
| Manufacturer Claim | Actual Safe Limit | Failure Risk |
|---|---|---|
| "Links up to 10 tubes" | Max 6 tubes (144W) | Driver burnout at 85°C+ |
| "Universal 120-277V" | 120V: 5 tubes max | Flicker beyond 3m cable |
| "No current limit" | Connector melt at 8A+ | Plastic deformation |
Note: 90% of "linkable" tubes lack overload protection circuits.
3. Critical Safety Standards
NEC 725.144: Class 2 circuits capped at 100W (120V) or 200W (277V).
UL 1993: Requires thermal cutoffs if internal temps exceed 90°C.
Violation Example: Chaining 8×24W tubes (192W) on 120V voids UL certification.
4. Performance Degradation
Lumen Loss: 8% drop per fixture beyond 5 tubes due to cumulative voltage drop.
Flicker Risk: Poor-quality drivers exhibit >30% flicker at chain ends (IEEE 1789 non-compliant).
EMI Surge: Linked systems without surge protection fail at >2kV (vs. 6kV standalone).
5. Solutions for Large-Scale Installations
a) Zoned Power Distribution
Split chains into groups of 4-5 tubes fed by separate circuits.
Cost: +15% wiring labor, +20% materials.
b) Centralized Driver Systems
Use high-capacity external drivers (e.g., 300W Mean Well HLG) with DC output to "dumb" tubes.
Benefit: Enables 12+ tubes with 95% system efficacy.
c) Hybrid Wiring
6. Key Selection Criteria
Verify Driver Specs:
Look for "100-305V" range (not just 120/277V)
Demand overload/short-circuit protection (e.g., IC protection)
Connector Rating:
Minimum 16 AWG internal wiring
V0-rated flame-retardant plastic
Certification Marks:
UL 1993 + FCC Part 15B for EMI
Conclusion
The true linkable limit for T8 LED tubes typically ranges from 4 tubes (120V) to 8 tubes (277V) – far below marketing claims. Exceeding these thresholds risks code violations, premature failure, and fire hazards. For installations beyond 100W, centralized drivers or zoned circuits are mandatory. Always prioritize third-party certified products and consult a qualified electrician for commercial deployments. Remember: "Linkable" doesn't mean "unlimited."
