How To Install A Dimmer Switch For Recessed Lighting

One of the simplest methods to significantly improve your lighting's versatility is to install a dimmer switch for your recessed lighting. Also, it's a DIY task that practically anyone can complete.

You may learn how to install a standard dimmer switch for recessed lighting in this post.

What you'll need is as follows:

new cover plate and dimmer switch.

Medium flat-head and Phillips screwdrivers

Wire strippers and cutters

Tester for live wires (Non-contact type recommended)

You must understand whether the lighting circuit is a single-pole (lights controlled from a single location) or a three-way before obtaining your new dimmer switch (lights controlled from two locations). Read the package to be certain, but some dimmers are universal and will function in both single-pole and three-way circuits.

Depending on your degree of experience, this project should take 20 minutes or less once you have your new dimmer and the necessary materials.

The steps that guide you through the process are outlined below.

Below Is A List Of The Procedures For Installing A Dimmer:

Step 1. Turn off the power.

Step 2. Remove the old switch and use your live wire tester to be sure the power is off.

Step 3. Remove the wires connected to the switch. If it’s a 3-way switch, label the wire that is connected to the “common” screw (usually a black screw) before removing the wire.

Step 4. Strip the insulation on all the wires about 3/4 of an inch.

Step 5. Connect the ground wires.

Step 6. Connect the remaining wires. If it’s a single pole circuit, the order of the wires usually doesn’t matter. If it’s a 3-way circuit, connect the wire that you labeled “common” to the common wire on the dimmer. It is usually the black wire. Then connect the remaining two wires, the order doesn’t matter.

Step 7. Fold the wires into the switch box and use your screwdriver to install the dimmer and cover plate.

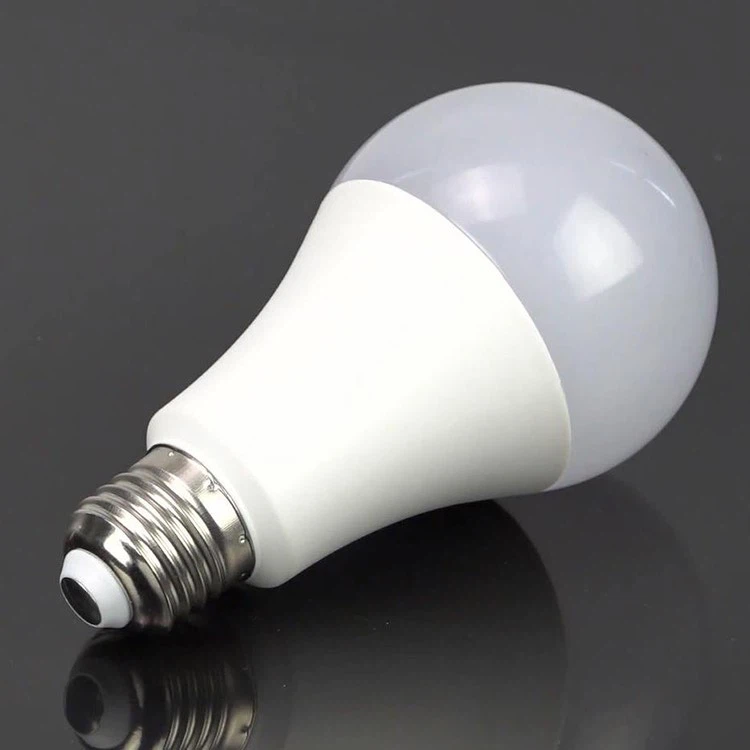

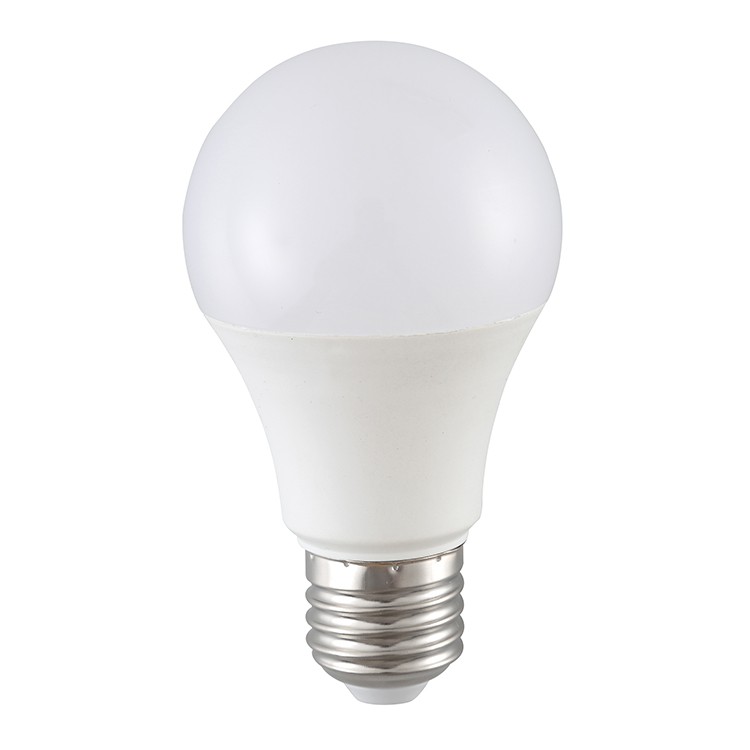

Dimmable Recessed Light Bulbs

Feature

● 10-watt, HD relax Comfortable Soft White Light
● Dimmable, LED
● 22 Year Life, $151 Energy Cost Savings
● Suitable for use in damp locations. Use in totally enclosed fixtures may result in lower lamp life.

Specification
