How To Light Up A Hockey Rink?

How To Light Up A Hockey Rink?

Are you still mulling about the best way to construct a well-lit hockey field? There are several factors to think about. Maintaining the hockey rink without incurring significant operating and maintenance expenditures is one of the issues it faces. Additionally, they must offer excellent, glare-free illumination.

Don't worry; in this tutorial, we'll show you how to use the hockey rink's proper lighting. Benwei will assist you with switching to LED lighting if you have an ice skating rink, whether it is outside or indoors. Traditional lamps like the MVF024, MVH-401/403/406 Arena Vision, MVF408-CAT1-1800W, NHF003, Mundial, etc. can be replaced with our lights. Additionally, LED enjoys the cold!

How can an ice rink be lit for hockey and skating?

There is no question that lighting is important in sporting arenas since it affects how participants and spectators feel there. The right lighting will make watching and playing more pleasurable. What are the top 4 components of a hockey rink's lighting, then?

Clear

The lighting system for ice sports contests must have a higher degree of brightness, especially in big stadiums since most viewers are far away, to guarantee that athletes and spectators can monitor fast-moving competitors and clearly perceive their precise motions.

Uniform

Clear, even light should be provided by hockey rink lighting. It will improve sportsmen' and viewers' vision so they can see the puck. They may even do better as a result of this.

Glare-free

Glare-free lighting fixtures are required for the hockey arena. This will make it simple to document hockey rink activities. This will make it possible for viewers at home to see everything properly.

Energy-saving

The skating rink is essentially a major energy user. One aspect of this consumption is lighting. The hockey rink's budget will benefit substantially from a reduction in lighting expenditures of 50 to 75 percent.

For a hockey rink, how many lumens am I going to need?

Sports on ice require a high degree of lighting in order to observe the game well, especially the minute details of the movement. Moving objects can be seen depending on their size, speed, brightness contrast, backdrop brightness, and ambient brightness. Consequently, the hockey stadium's lighting requirements vary depending on the level of competition. The hockey rink's lighting norm is shown below.

Standards for Hockey Rink Lighting

The Olympic skating rink, for instance, is 1800 square meters in size (60 * 30 meters). The lux range for NHL professional competitions is 800 to 1500 lux. The necessary lumens are equal to 1800 * 1000, or 1,800,000, if the hockey or oval ice rink's lux level is 1000. 150lm/w Benwei led floodlight. As a result, the ice rink requires at least 12,000 watts of LED floodlighting. The MH floodlight's wattage before switching to LED was 40,000 watts! The most precise approach to light an ice rink or hockey arena is to establish a lighting plan since we require intricate beam angles as well as unique power and installation height configurations.

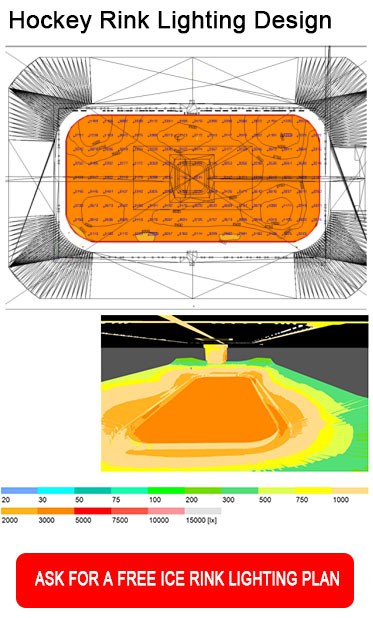

How will the hockey rink be lit?

You can view your hockey rink with new LED lights thanks to a lighting design. Its report displays the positions of the light fixtures, foot candle readings, and the degree of light distribution. Utilizing specialized lighting measuring software, the lighting plan is created. You may import or build the playground's size, add or remove bars from the playground, and add lights to the bars.

Each light may illuminate a certain area with this software. The computer program will determine the foot candle readings and display the uniformity and illumination of the field.

You will literally have to estimate which power, Lumen packages, and optics are best for you if there is no lighting plan. Less than 1% of the time, your "guess" will be accurate.

The lighting plan takes all uncertainty out of the equation and is essential for a successful switchover to LED stadium lighting.

Which LED lighting options are best for ice and hockey rinks?

How Should A Proper Beam Angle Be Chosen For LED Hockey Rink Lights?

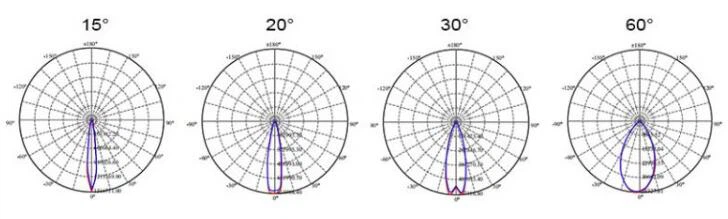

What angle is the beam?

The border of a specific intensity range of the beam forms the angle of the light source or lamp, which is referred to as the beam angle. Typically, the light reflection point immediately illuminates the beam angle on the lit surface.

Request lighting photometry from our lighting specialists to identify the ideal beam angle and light for the ice rink. To make sure the area is uniform and bright, consider the maximum/minimum ratio and the foot-candle measurement.

To establish the proper illumination and beam angle for the ice rink, please utilize the lighting photometric approach. Check the foot-candle size and the maximum/minimum ratio to make sure your space is consistently uniform and bright.

lights on a football pitch

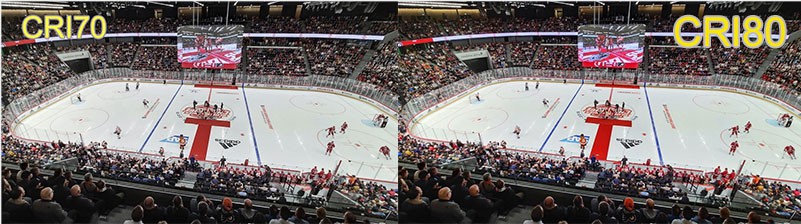

How Should I Select The Correct Color Rendering Index?

The color of light is indicated by the color rendering index. This index shows that, in comparison to sunshine, the light source can render objects' colors quite accurately (that is, the ideal light source). The hue of the light is a common complaint from customers when discussing HID bulbs. Light colors therefore have a significant impact on higher applications. Sharpness and contrast are significantly impacted.

Most of the LED lighting equipment we provide has a CRI of 80 to 90. The fact that we can order practically any CRI you would require is the finest part.

What color temperature is ideal?

The term "color temperature," which is measured in Kelvin (K) units, describes how the lighting on a hockey rink appears to the human eye. Its typical operating range is 1000K to 1000K. It is crucial to employ lighting systems with the right color temperature in ice rinks and hockey rinks. Because it is closer to sunshine, color temperatures about 5000K have the same stimulation effect as natural light. Use LED ice hockey lights instead of fluorescent, HPS, or metal halide lighting right now.

How do I handle delivery?

Are you still concerned about getting around? How can I ship to your nation?

We provide fast, air, and maritime services, so don't worry. We often advise using door-to-door express delivery for samples. Depending on the project's timeframe, you can select between air and sea delivery for large orders.

You can arrange for a freight forwarder to pick up the items at our plant if you run your own freight forwarding business.

How can I order lights for a football field?

Based on the specifications of your request, we will write a contract. Bank transfers and credit card payments are also accepted. We will set up the order after we have received the money. Additionally, we'll keep you informed on the status of the manufacturing. When the products are prepared, we will plan the delivery, and the courier will get in touch with you before the delivery.

How does the warranty stand?

Our items come with a 5–10 year warranty. If there is a quality issue during the warranty term, we will replace or repair it at no cost to you, including shipping. And ensure that within 5 years, the light delay is no more than 5%. Please maintain the contract and warranty. To contact us directly, visit our official website or speak with your dedicated salesperson.
