If you are looking for a solution that can replace traditional fluorescent tubes while providing ultraviolet (UV) illumination, the 395nm UV integrated T8 LED tube is worth a closer look. While it resembles a standard T8 tube in appearance, it emits long-wave ultraviolet light (UVA)-a spectrum bordering on the visible range. This article explores how these tubes work and where they are applied, helping you determine whether they are the right choice for your specific project.
What is a 395nm UV integrated T8 LED tube?
The 395nm wavelength falls within the UVA band (320–400nm), commonly referred to as "black light." It triggers fluorescence in certain materials; because it emits very little visible light, the illuminated scene appears "dark yet mysterious."
"Integrated" means that the LED chips and the driver are built directly into the tube. Typically, no additional fixtures or ballasts are required-simply connect it to a power source, and it is ready for use. The "T8" designation refers to a standard tube diameter of approximately 26mm. These tubes are available in common lengths-0.6m, 0.9m, 1.2m, and 1.5m-and are installed in the same way as conventional tubes, making them convenient for retrofitting existing lighting fixtures.
Compared to traditional fluorescent black lights, the LED version offers faster startup, flicker-free operation, lower power consumption, a longer lifespan, and is completely mercury-free.
Fluorescence-based inspection and anti-counterfeiting
This is one of the most common and practical applications.
Document and currency verification: Many banknotes, official documents, and tickets contain fluorescent security markings that become clearly visible under 395nm UV light.
Industrial quality control: Used to check for residual fluorescent adhesives on product surfaces, ensure uniform coating application, or verify the presence of fluorescent markers.
Leak detection: By adding a fluorescent tracer to hydraulic, air conditioning, or fuel systems, technicians can quickly pinpoint leaks by scanning the area with UV light.
Cleanliness verification: Certain stains and grease residues fluoresce under UV light, making it an effective tool for verifying the cleanliness of manufacturing facilities or equipment. The advantage of a long-tube design is its large irradiation area, making it ideal for fixed installation above assembly lines or inspection stations-a more labor-efficient solution compared to handheld UV lamps.
UV Curing Applications
395nm is a commonly used wavelength in UV curing systems, as many photoinitiators are responsive to this specific band.
UV-curable adhesives and coatings: Used in electronics assembly, bonding of small components, and curing surface coatings.
UV inks and post-curing for 3D printing: Used for the secondary curing of resin-printed parts to enhance their structural strength.
Nail art and small-scale crafts: Used to assist in the curing of certain resins and adhesive materials.
It should be noted that T8-style UV tubes have a lower power density than professional-grade curing lamps; they are better suited for thin coatings, small-batch processing, or applications requiring low-intensity irradiation over a large area. For high-speed production lines or the curing of thick layers, the use of specialized industrial equipment is recommended.
Nightclubs, Stages, and Atmospheric Decor
395nm UV tubes cause fluorescent paints, fabrics, and white clothing to glow intensely.
Decor for bars, KTVs, and nightclubs (walls, bar counters, etc.)
Themed parties, Halloween displays, haunted houses, and escape rooms
Stage backdrops and performance props
Events such as "glow runs" or fluorescent-themed painting parties
The integrated design of these tubes makes them excellent for linear lighting-they can be installed along ceilings, walls, or within recessed light coves, providing uniform illumination without noticeable "hot spots."

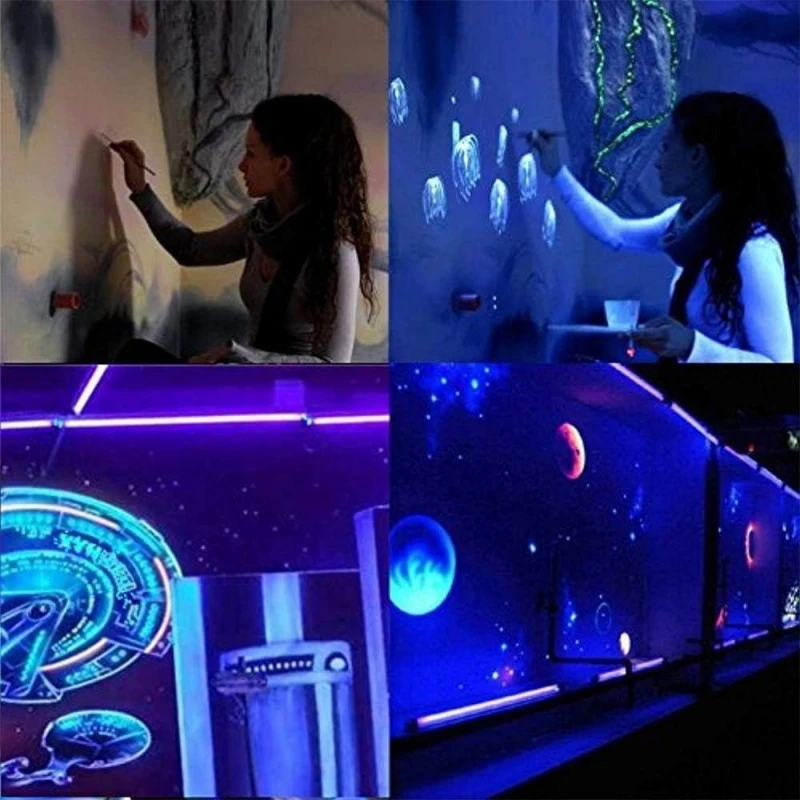

Art Exhibitions and Fluorescent Creations
Fluorescent paintings and murals: Works created with fluorescent pigments appear more vivid under "black light."
Art galleries and immersive exhibitions: Used to craft unique visual experiences.
Photography and film sets: Provides a stable light source for capturing fluorescent effects.
Insect Trapping
Many flying insects are phototactic-attracted to light-within the UVA spectrum. Consequently, 395nm UV tubes are frequently used in mosquito zappers and insect traps. Pest control equipment for restaurants, food processing facilities, and storage areas.
Used in conjunction with sticky traps or electric insect grids.
Light source for residential or commercial insect traps.
Note, however, that different insects have slightly different preferences regarding wavelengths; actual effectiveness also depends on the design of the fixture, ambient lighting, and placement. If this is your primary intended use, it is advisable to conduct a small-scale test first.
Key Parameters to Consider When Purchasing
Not all lamps labeled as "395nm" perform the same. Before placing an order, check the following:
Wavelength Precision: Ensure the peak wavelength remains stable near 395nm; significant deviations can impair fluorescence excitation.
Power and Light Intensity: For a given length, the power rating and the number of LED chips determine the intensity of the light.
Tube Length and Connector Type: Verify the length and whether it requires single-ended or double-ended power input to ensure compatibility with your existing fixtures.
Voltage Range: Confirm that it is compatible with your local mains voltage (e.g., a wide-range input of 100–240V).
Housing Material: Options include polycarbonate (PC), aluminum-plastic composite, or glass; these materials differ in terms of light transmission and durability.
Certifications and Quality: Look for certifications such as CE or RoHS, and check if the manufacturer can provide spectral test data.
Safety Precautions
Although 395nm falls under long-wave ultraviolet (UVA) light-which is less hazardous than UVB or UVC-it is still not recommended to look directly at the light for extended periods or to expose your skin to it at close range.
Avoid looking directly at the lamp; personnel should wear UV-protective eyewear.
When working in close proximity to the light for long periods, ensure your skin is protected.
UV light can accelerate the aging or fading of certain materials; be mindful of surrounding objects during installation.
Conclusion
The applications for 395nm UV integrated T8 LED tubes can be categorized into several main areas: fluorescence detection and anti-counterfeiting, UV curing, stage ambiance and decoration, art displays, and insect trapping. Their primary advantages-standardized tube dimensions, ease of installation, energy efficiency, and durability-allow for the implementation of UV lighting requirements without the need for major modifications to existing fixtures. When making a selection, it is more reliable to first clarify your intended use and then evaluate options based on wavelength, power, and dimensions, rather than focusing solely on price.
