Do Digital RGB Strips Need a Special Controller?

When many customers receive their digital RGB LED strips, their first thought is often: "I already have a remote control for a standard RGB LED strip at home-can I just use that?" The answer is generally no. While digital LED strips do require a specific type of controller, "specific" does not mean "expensive" or "hard to find." The key is simply choosing the right type and ensuring the technical specifications match.

This article explains the underlying principles of these LED strips, outlines how to select the correct controller, highlights common pitfalls, and helps you ensure you have the right components before you make a purchase.

Digital RGB LED strips (also known as addressable or "dream-color" LED strips) feature a built-in control chip within each individual LED, allowing them to receive specific, independent commands. Consequently, they require a controller capable of "sending data"-not just a standard dimmer that merely adjusts brightness or overall color.

The good news is that most mainstream digital LED strips rely on only a few common chip protocols, and the controllers available on the market generally cover these. You don't need a custom-made solution; you simply need to ensure that the controller and the LED strip "speak the same language."

Standard (analog) RGB LED strips typically use a 4-pin interface: V+, R, G, and B. The controller uses PWM (Pulse Width Modulation) to directly adjust the current flowing through each of the three color channels, meaning the entire strip must display the same color at any given moment.

Digital LED strips, by contrast, use either a 3-pin (5V, DIN, GND) or 4-pin (including a clock line) configuration. The controller sends a digital signal with a specific timing sequence; each LED "grabs" the data intended for it and passes the remaining data along to the next LED in the chain. This is what enables dynamic effects like chasing lights, flowing patterns, and gradient waves, where each individual LED can change independently.

Because the interfaces and signal formats are completely different, attempting to connect them directly will, at best, result in the lights failing to turn on-and at worst, could damage the LEDs or the controller itself.

Chip Protocol: Does the LED strip specify a protocol such as WS2812B, WS2811, SK6812, WS2815, or APA102? The controller must either support your specific LED strip model or allow you to select it within its settings.

Operating Voltage: LED strips typically run on 5V, 12V, or 24V. The controller's output voltage-or the power supply used-must match the voltage of the LED strip.

Number of Signal Lines: Some strips, like the WS2812B, use a single-wire protocol (data line only), while others, like the APA102, use a two-wire protocol (data line plus a clock line). These interfaces are incompatible and cannot be mixed.

Color Order: LED strips may use different color sequences, such as RGB or GRB. If the color order is set incorrectly, the lights may display the wrong colors (e.g., showing green when you select red). Better controllers allow you to manually adjust the color order.

Pixel Capacity: Every controller (or output port) has a maximum limit on the number of LEDs it can drive. If the total number of LEDs exceeds this limit, the lights may flicker, lag, or fail to illuminate.

The most common entry-level choice. These are compact, affordable, and come with dozens of built-in effects that can be toggled via a remote or a smartphone app. They are ideal for ambient home lighting, TV backlighting, and small-scale decorative projects. The downside is that the effects are generally fixed, with limited room for customization.

These controllers play pre-programmed animations stored on an SD card, allowing them to operate independently without a computer connection. They are well-suited for applications requiring consistent, repetitive playback, such as storefront signage, window displays, or stage decorations.

Designed for professional installations and live performances, these controllers can be integrated with lighting consoles or software to synchronize hundreds or even thousands of individual LEDs. They are frequently used for architectural lighting, stage productions, and large-scale installations. While more complex to configure than the options mentioned above, they offer superior synchronization precision and scalability.

Ideal for users with programming skills or projects that require interactive features-such as reacting to music, sensor inputs, or Wi-Fi commands. These offer the highest level of flexibility, though they require the user to write custom code or flash open-source firmware.

Even with the right controller, an LED strip may not function reliably. Two frequently overlooked factors are as follows:

Power Capacity and Distributed Power Injection

When all LEDs on a digital strip are set to full-brightness white, the current draw is significant; ensure the power supply has sufficient overhead based on the total number of LEDs. For longer strips, powering only one end can lead to dimming or a yellowing tint toward the far end. In such cases, additional power should be connected at the middle or end of the strip-a technique commonly known as "power injection."

Signal Transmission and Level Matching

If the signal voltage output by the controller (e.g., 3.3V) is lower than the strip's requirement (a 5V strip typically requires a signal close to 5V), it may result in flickering or erratic, garbled output. A logic-level shifter should be used to resolve this.

If the distance between the controller and the LED strip is too great, the signal will attenuate. You should either shorten the wiring or install a signal amplifier.

Only the first LED lights up: This is usually because the data line is connected in the wrong direction, or the first LED is faulty. Digital LED strips have a specific data direction-check for the arrows printed on the strip.

Colors do not match the settings: The color order (e.g., RGB vs. GRB) is likely incorrect; simply adjust the color sequence setting in your controller.

The entire strip flickers or behaves erratically: Check for a common ground, ensure signal levels match, and verify that the power supply is not overloaded.

Brightness or color discrepancies in the latter half of the strip: This is caused by voltage drop; connecting additional power usually resolves the issue.

Part of the strip fails to light up after being cut: Digital LED strips must be cut only along the designated cut lines. Also, pay attention to the orientation of the solder pads; cutting in the wrong place can sever the data path.

Digital RGB LED strips require a controller capable of outputting digital signals; standard (analog) RGB controllers will not work. When selecting a strip, focus on five core parameters: the chip protocol, voltage, number of signal lines, color order, and the total number of LEDs supported. Finally, choose the appropriate control solution based on your specific use case-options include remote/Bluetooth control, offline SD card playback, DMX, or microcontroller-based systems. Finally, don't overlook power capacity and signal quality-these two factors often determine the stability of your finished setup.

If you are selecting digital RGB LED strips for a project but aren't sure which controller to choose, please feel free to reach out to us. Simply let us know the length of the LED strips, the intended application, and the desired visual effects; our engineers will recommend the ideal combination of LED strips and controllers, and provide you with samples and a quote.

https://www.benweilight.com/lighting-tube-bulb/rgb-led-blub/digital-rgb-led-strip.html

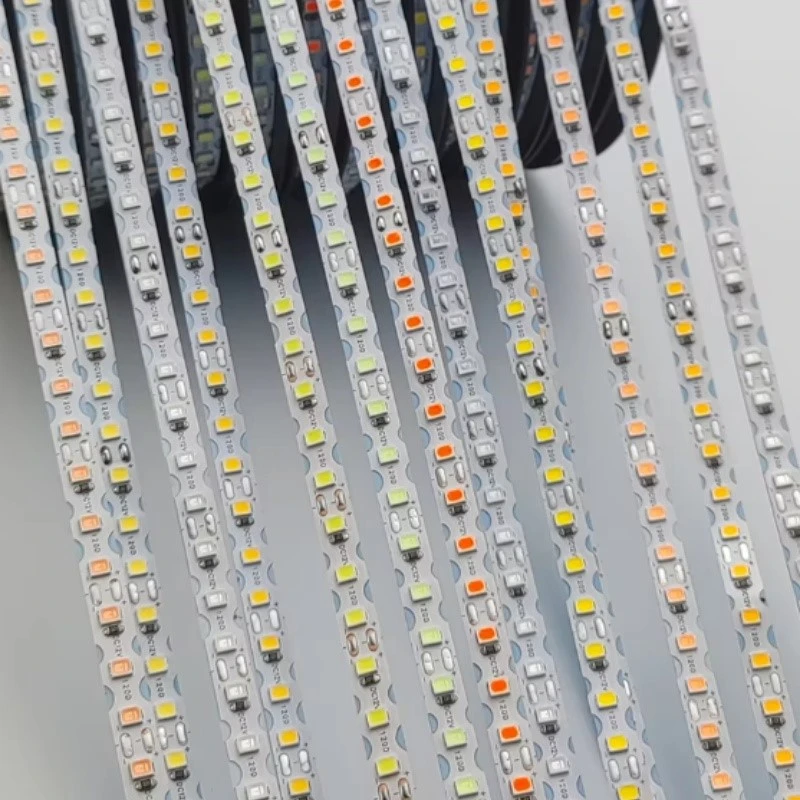

DC12V SMD 2835 S Type LED Strips Lighting
