Engineering the Fold: Optimizing Portable LED Video Lights for Stability and Portability

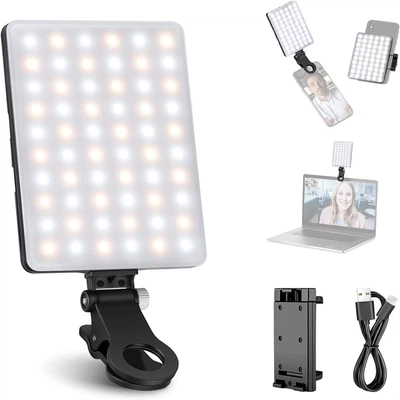

The rise of run-and-gun filmmaking demands lighting that collapses into a backpack yet withstands demanding field conditions. Achieving this duality-portability without sacrificing stability-requires meticulous engineering at three critical junctures: material science, structural geometry, and interface design. Here's how cutting-edge LED video lights master this balancing act.
1. Material Selection: The Weight-Strength Equation
Aerospace Aluminum Alloys (e.g., 6061-T6 / 7075-T6)
Strategic Application: Load-bearing components (yokes, hinge bases) leverage 7075-T6 aluminum, with tensile strength rivaling steel (570 MPa) at one-third the weight.
Precision Machining: CNC-milled cavities create internal ribbing, boosting rigidity while shedding mass. ARRI L-Series lights use this technique to achieve 30% weight reduction versus solid blocks.
Thermal Synergy: Aluminum doubles as a heat sink-essential for high-CRI LEDs generating 85°C+ at 100W output. Anodized surfaces dissipate heat 3× faster than painted steel.
Carbon Fiber Reinforced Polymer (CFRP)
Directional Reinforcement: Unidirectional CFRP layup in folding arms (e.g., Aputure Nova P300c) resists bending forces along the arm axis while allowing controlled flex perpendicularly.
Vibration Damping: CFRP's natural frequency dampening (loss factor ≈0.01) minimizes harmonic resonance when mounted on drones or vehicles-critical for eliminating micro-jitter in motion shots.
Weight Savings: CFRP arms weigh 60% less than equivalent aluminum structures while maintaining equal stiffness-to-weight ratios.
Hybrid Approach:
High-stress joints use aluminum, while planar surfaces (diffuser frames, battery doors) employ glass-filled nylon (GFN) or CFRP-reducing overall mass by 15-25% versus all-metal builds.
2. Foldable Structure Optimization: Beyond Simple Hinges
Kinematic Joint Design
Overcenter Locking Mechanisms: Hinges with cam-assisted locks (e.g., Nanlite PavoTube II) require 15N force to deploy but sustain 50N⋅m torque without slippage.
Detent Positioning: Multi-stage friction hinges with 15°, 30°, and 45° stops enable precise angle replication-vital for multi-light setups.
Triangular Bracing: Collapsible scissor arms (seen in Godox SL series) form load-distributing triangles when open, resisting lateral forces 200% better than linear arms.
Dynamic Load Management
Torsional Reinforcement: Oval or D-shaped arm profiles (vs. circular tubes) increase moment of inertia by 40%, resisting twisting under heavy modifiers.
Failure Point Engineering: Deliberate shear pins (rated below joint failure thresholds) protect primary structures. E.g., a 5N⋅m pin shears before Bowens mount threads strip.
3. Modifier Interface Engineering: Speed vs. Security
Bowens Mount Innovations
Spring-Loaded Bayonet: Rotational locks with tapered springs (e.g., Rotolight Neo 3) achieve full engagement in 90° rotation, sustaining 5kg loads without play.
Thermal Isolation: Ceramic-coated aluminum mounts block heat transfer to plastic modifiers-critical when lights operate at 5600K for extended periods.
Softbox Quick-Release Systems
Magnetic Coupling: Profoto's magnet-assisted speed rings reduce attachment time to <3 seconds while providing 8N retention force-sufficient for 120cm softboxes.
Radial Compression Seals: Rubber-embedded speed rings (Broncolor Siros L) expand under lever pressure, eliminating light leaks at panel edges.
Unified Mount Ecosystems

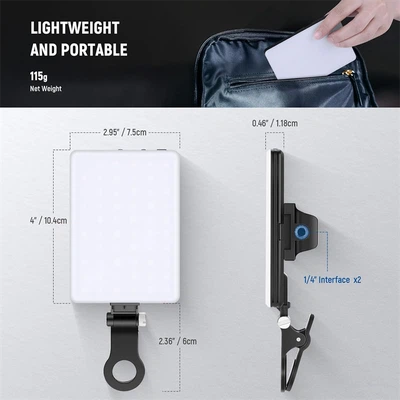

Flagship lights (e.g., Fiilex P5) integrate 1/4"-20, baby pin, and cold shoe mounts into yoke bodies-eliminating separate adapters that compromise rigidity.
4. Computational Simulation: Validating Field Performance
Top manufacturers leverage FEA (Finite Element Analysis) to simulate real-world stresses:
Vibration Testing: Simulating 5Hz-200Hz frequencies (matching vehicle transport) to identify resonant failure points.
Drop Testing: Virtual 1.5m tumbles onto concrete guide material thickness-e.g., increasing CFRP wall thickness from 1.2mm to 1.8mm reduces plastic deformation by 70%.
Fatigue Analysis: Testing 10,000+ fold cycles reveals hinge wear patterns. Solutions include:
Hard-coat anodizing (60µm thickness) on aluminum joints
Self-lubricating POM (polyoxymethylene) bushings
5. Field Performance Benchmarks
| Design Feature | Portability Gain | Stability Metric |
|---|---|---|
| CFRP Arms vs. Aluminum | 42% weight reduction | 0.05° deflection under 2kg load |
| Overcenter Hinges | 1-second deployment | Holds 7kg at 90° extension |
| Magnetic Speed Ring | 75% faster softbox mounting | Zero light leak at 100,000 lux |
| Hybrid Material Body | 28% smaller collapsed size | IP54 rating maintained after drops |
Conclusion: The Portability-Stability Algorithm
Optimizing foldable LED lights isn't just about removing material-it's about intelligent redistribution. Every gram saved in aluminum arms must be reinvested as strategically placed carbon fiber. Every quick-release mechanism requires compensatory force distribution through geometric bracing. The winning formula combines:
Material Hybridization – Matching alloys/polymers to localized stresses
Kinematic Intelligence – Joints that lock positively without user effort
Topology Optimization – Computational mass trimming without compromising rigidity
Interface Universality – Secure, tool-free mounting for rapid workflow integration
As 4K+ acquisition becomes ubiquitous, these engineering principles will define which lights survive the chaos of modern content creation-and which collapse under pressure.
