What Is The Difference Between High‑PF and Standard‑PF T8 LED Tube Lights?

In the global LED lighting wholesale and engineering procurement market, Power Factor (PF) has always been the most easily overlooked core parameter. Most end users and even individual engineering purchasers simply believe that "the same wattage means the same power consumption and lighting effect", and equate Standard-PF and High-PF T8 LED tubes in performance and value. In fact, power factor represents the effective utilization rate of grid electric energy by electrical equipment. For linear lighting products such as T8 LED tubes, different PF values directly determine the reactive power loss of the lamp, the load pressure of the power grid, the heat generation state of the driving system, and the long-term light decay and service life of the lamp.

A large number of engineering operation data show that large-scale lighting projects using Standard-PF LED tubes will face problems such as increased grid load, reactive power penalty charges, unstable voltage operation, and accelerated lamp aging after long-term continuous operation. In contrast, High-PF LED tubes can efficiently reduce invalid power loss, stabilize electrical operation, and extend the overall service life of lighting equipment. With the continuous upgrading of international energy efficiency standards such as EU ERP and US DLC, more and more commercial and public facility lighting projects have clearly stipulated the minimum PF standard of lighting equipment. Therefore, distinguishing the essential differences between Standard-PF and High-PF T8 LED tubes has become a necessary professional capability for modern lighting project procurement and engineering design.

Power Factor is a dimensionless numerical value between 0 and 1. The closer the value is to 1, the higher the electric energy utilization efficiency of the equipment, the smaller the reactive power loss, and the more stable the electrical performance. Combined with the unified classification standard of the global LED lighting industry and our product configuration specifications, the two mainstream PF versions of T8 LED tubes are clearly defined. Standard-PF version is defined as PF≥0.5, which adopts a simple cost-effective driving circuit structure, meeting the basic lighting use demands of low-budget and small-scale scenarios. High-PF version is defined as PF≥0.9, which adopts a high-precision optimized constant-current driving circuit with power factor correction design, reaching the international high energy efficiency standard and meeting the certification requirements of high-standard engineering projects.

It is worth emphasizing that the difference in PF values is not a simple numerical gap, but an essential difference in driving circuit design, component configuration, electrical performance, and long-term operational value. The two versions of our T8 LED tubes are independently developed and configured, covering all market demand scenarios from civilian low-budget renovation to high-standard commercial engineering projects, realizing precise matching of cost and performance for different customers.

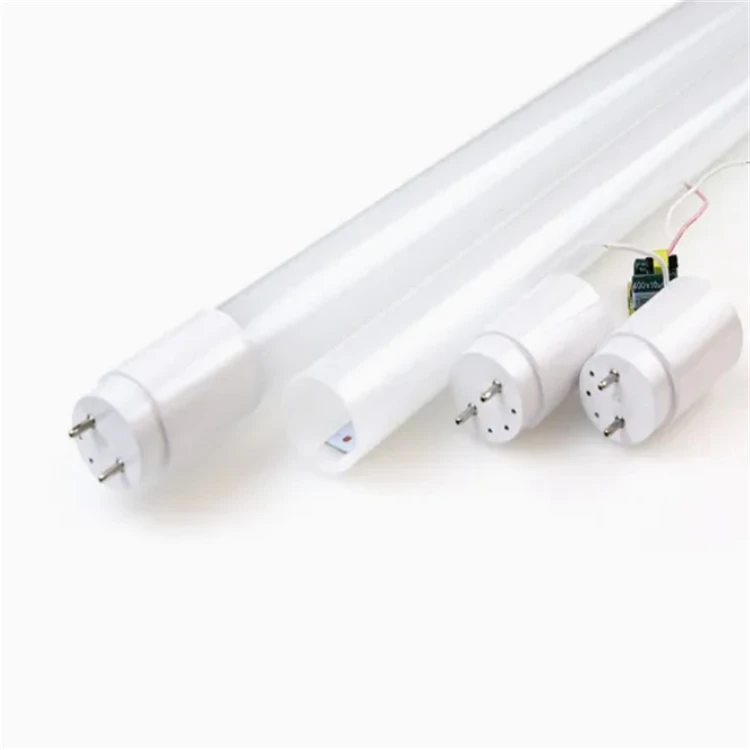

led tube light fixture

The Standard-PF T8 LED tube adopts a conventional resistance-capacitance step-down driving scheme without independent power factor correction circuit. The circuit structure is simple, with fewer electronic components, low production cost, and stable basic lighting output. Its working principle is to reduce the grid voltage through resistance and capacitance components, and provide basic constant-current output for LED chips, which can meet the basic lighting brightness and normal startup demands of indoor scenarios. This design is positioned as an economical and practical solution, focusing on reducing the initial procurement cost of products, and is suitable for small-batch, intermittent lighting scenarios with low energy efficiency requirements.

Due to the lack of power factor correction modules, the Standard-PF driver cannot filter reactive power in the circuit during operation. A large amount of reactive power cannot be converted into effective luminous energy, but is consumed in the form of heat on the driving circuit and grid lines. This will lead to low electric energy utilization efficiency, obvious heat generation of the lamp body, and certain current harmonic distortion. However, for small-space, small-quantity, and non-long-term continuous lighting scenarios, the performance of Standard-PF tubes is fully sufficient, and its cost advantage is extremely prominent.

Our High-PF T8 LED tube is equipped with an upgraded built-in IC constant-current driver with active power factor correction (PFC) module, which is a professional high-energy-efficiency driving solution customized for large-scale and long-term lighting projects. Different from the simple circuit of Standard-PF products, the High-PF driving system adds high-precision PFC correction chips and filter components, which can actively adjust the phase difference between current and voltage in the circuit, eliminate reactive power loss, and increase the effective utilization rate of grid electric energy to more than 90%.

In addition, the High-PF driver has a more complete closed-loop feedback adjustment mechanism and multi-level safety protection functions including over-current, over-voltage, over-temperature, and short-circuit protection. While optimizing power factor, it further stabilizes the working current and voltage of LED chips, suppresses current harmonic interference, and reduces the operating temperature of the driving board. The overall circuit adopts high-temperature resistant and anti-aging high-quality components, which can maintain high-efficiency and stable operation for a long time in complex grid environments, and fully comply with international energy efficiency certification and grid access standards.

The most intuitive difference between Standard-PF and High-PF T8 LED tubes lies in energy utilization efficiency. Under the same wattage and same lighting time conditions, High-PF products can convert more grid electric energy into effective luminous energy, while Standard-PF products have a large amount of electric energy wasted in the form of reactive heat loss. Taking the conventional 18W T8 LED tube as an example, the actual effective power of the Standard-PF (PF=0.5) tube is only 9W, and the remaining half of the electric energy is invalid loss; while the High-PF (PF=0.9) tube has an effective power of up to 16.2W, with extremely low invalid loss and significantly higher energy efficiency.

For small-scale single-space use, the power saving gap between the two is not obvious. But for large-scale projects such as supermarket chains, warehouse groups, office buildings, and campus lighting with hundreds or thousands of lamps working 10-12 hours a day, the energy-saving advantage of High-PF tubes is extremely prominent. Long-term operation can save 15%-25% of annual lighting electricity bills for customers, completely offsetting the slight difference in initial procurement costs, and bringing continuous and stable energy-saving benefits. In addition, High-PF products can effectively reduce the reactive power load of the power grid, avoid reactive power penalty charges issued by power supply departments for large commercial venues, and further reduce comprehensive operating costs.

Grid voltage fluctuation and current harmonic interference are common problems in commercial and industrial power supply environments. Standard-PF T8 LED tubes, without PFC correction modules, have poor anti-interference ability. When the grid voltage fluctuates in the 100-277V wide voltage range, the current output is prone to instability, resulting in slight brightness flickering, luminous efficiency fluctuation, and even occasional stroboscopic phenomena. Long-term operation in unstable electrical environments will cause continuous impact on LED chips and driving circuits, affecting the stability of lighting effects.

Our High-PF T8 LED tubes perfectly solve the above problems. The built-in active power factor correction module can automatically filter grid harmonic interference, stabilize current and voltage output, and maintain constant luminous brightness even under unstable grid conditions. The wide voltage 100-277V AC design is compatible with global power supply standards, adapting to complex power supply environments in industrial parks, remote warehouses, and old urban buildings. The lighting effect is always uniform, flicker-free, and stable, meeting the high-standard lighting requirements of commercial display, office study, and precision working scenarios.

Reactive power loss is the main heat source of LED tube driving circuits. Standard-PF tubes produce a large amount of invalid heat during operation due to low energy utilization efficiency. Long-term high-temperature operation will accelerate the aging of driving components and LED chips, cause thermal attenuation of chip phosphor layers, and significantly increase the light decay rate. Actual test data shows that the light decay rate of Standard-PF T8 tubes is 20%-30% higher than that of High-PF products under the same continuous working conditions. After 20,000 hours of operation, the luminous flux retention rate of Standard-PF tubes is only about 70%, while High-PF tubes can still maintain more than 92% of the initial luminous flux.

High-PF tubes effectively reduce circuit heat generation by eliminating reactive power loss, and the optimized heat dissipation structure further reduces the operating temperature of the lamp body. The low-temperature and stable working state fundamentally suppresses thermal runaway and chip aging, greatly extending the overall service life of the lamp. The L70 service life of High-PF T8 LED tubes reaches 50,000 hours, which is far longer than the 30,000-hour service life of conventional Standard-PF tubes. For long-term uninterrupted lighting scenarios, High-PF products can reduce replacement frequency by more than 40%, saving a lot of later maintenance labor costs and material costs.

In terms of electrical safety, High-PF T8 LED tubes have more comprehensive protection capabilities. The optimized driving circuit and filter components can effectively avoid circuit overload, local overheating, and harmonic radiation risks. The multi-level safety protection mechanism can automatically cut off the power supply in case of over-current, over-voltage, and short-circuit faults, preventing safety hazards such as circuit burnout and fire. In contrast, Standard-PF tubes have simple circuit protection functions, and long-term high-load operation is prone to local overheating of the driving board, with relatively low safety redundancy.

In terms of engineering certification, High-PF (PF≥0.9) products fully meet the strict energy efficiency standards of EU ERP, US DLC, and other international certifications, and can pass the grid access detection of most countries and regions, which is the mandatory standard for government projects, large commercial chains, and export engineering orders. Standard-PF (PF≥0.5) products cannot meet high-standard energy efficiency certification requirements due to low power factor, and are only applicable to conventional civilian and small commercial renovation projects without strict certification requirements.

The Standard-PF T8 LED tube with PF≥0.5 is positioned as a high-cost-effective economical lighting solution, focusing on meeting basic lighting demands with low initial investment. It is very suitable for small-budget, small-space, and intermittent lighting scenarios, including small shop lighting, family auxiliary lighting, small office renovation, temporary warehouse lighting, and rural civilian lighting renovation. For these scenarios, the lighting time is short, the operation load is low, and there are no strict energy efficiency certification and grid standard requirements. The basic performance of Standard-PF tubes can fully meet the use demands, and its prominent price advantage can help customers minimize initial procurement costs and achieve rapid lighting renovation.

Our Standard-PF T8 LED tubes retain core high-quality configurations such as high-brightness LED chips, flame-retardant PC shell, and basic constant-current driving protection on the premise of cost optimization. They avoid the inferior problems of low-price and low-quality products such as easy burnout, serious light decay, and fragile shell, ensuring stable basic use performance and high cost performance in economical products.

The High-PF T8 LED tube with PF≥0.9 is positioned as a high-standard engineering-grade lighting solution, focusing on long-term energy saving, stable operation, and engineering compliance. It is the preferred choice for large-scale, long-term continuous lighting and high-certification-demand projects, including supermarket chain lighting, large warehouse logistics parks, school classroom lighting, government public facilities, industrial workshop lighting, and export engineering projects. These scenarios have long daily lighting hours, large overall lamp quantity, and strict requirements on energy efficiency, safety, and lighting stability.

The High-PF version can bring three core value gains for project customers: first, long-term energy saving, effectively reducing annual electricity expenditure and reactive power penalty costs; second, stable operation, ensuring consistent lighting effects for many years and avoiding brightness attenuation and stroboscopic problems; third, low maintenance, ultra-long service life reduces replacement and maintenance costs, improving project operation efficiency. In addition, it meets international energy efficiency certification standards, helping customers smoothly pass project acceptance and export detection, and improving project competitiveness and product added value.

In terms of initial procurement cost, Standard-PF T8 LED tubes have a certain price advantage, which is suitable for customers with limited short-term budget and low long-term operation requirements. However, in terms of comprehensive life cycle cost, High-PF products have far higher return on investment. Although the single procurement cost is slightly higher, the long-term energy-saving benefits, low maintenance cost, and ultra-long service life can offset the initial cost gap in 1-2 years. For lighting projects with a service cycle of more than 3 years, High-PF tubes can save more than 30% of comprehensive operating costs compared with Standard-PF products.

For large-scale engineering projects, the reactive power loss of Standard-PF tubes will also increase the load of power distribution equipment such as transformers and switches, resulting in increased equipment loss and potential power supply hidden dangers. High-PF tubes can optimize grid load, reduce equipment operation pressure, and extend the service life of the overall power distribution system, bringing implicit cost-saving benefits that cannot be ignored for project operation.

For customers' diversified purchasing demands, we provide targeted PF configuration matching strategies to realize the optimal balance of cost and performance. For small-scale civilian renovation, temporary lighting, and low-budget small projects without energy efficiency certification requirements, Standard-PF (PF≥0.5) T8 LED tubes are recommended, which can meet basic lighting demands with the lowest cost. For medium and large commercial lighting, industrial long-term lighting, educational public facilities, export orders, and projects with ERP/DLC energy efficiency certification requirements, High-PF (PF≥0.9) T8 LED tubes must be selected to ensure project compliance, stable operation, and long-term energy-saving income.

It is worth noting that our dual-PF version T8 LED tubes adopt unified high-standard appearance structure, PC flame-retardant shell, high-quality LED chips, and installation specifications. Customers can freely match different PF configurations according to different project modules without adjusting installation fixtures and construction schemes, which greatly improves the flexibility of project procurement and construction efficiency.

Power Factor is the core electrical parameter that determines the energy efficiency, stability, safety, and service life of T8 LED tube lights. Standard-PF (PF≥0.5) and High-PF (PF≥0.9) products are not simply superior or inferior, but targeted optimized configurations for different application scenarios and project demands. Standard-PF T8 LED tubes rely on cost advantages to meet the basic lighting needs of small-budget and intermittent use scenarios, with high short-term cost performance. High-PF T8 LED tubes rely on active power factor correction technology to achieve high energy efficiency, low loss, stable operation, and long service life, which is the core choice for high-standard engineering and long-term operation projects.

In modern lighting project procurement, blind pursuit of low prices or blind pursuit of high parameters is not scientific. Accurately distinguishing the difference between Standard-PF and High-PF products and selecting matching configurations according to project scale, use cycle, certification standards, and budget can maximize the comprehensive value of lighting equipment. Our dual-version T8 LED tube products cover all market demand segments, with professional technical configuration, stable product quality, and perfect after-sales warranty service, providing the most reliable and cost-effective customized lighting solutions for global buyers and engineering projects.
