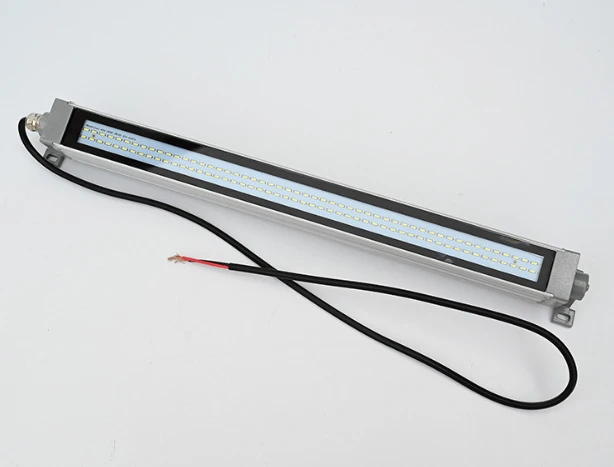

Why do CNC machine LED lights need to be waterproof, oil-proof, and explosion-proof?

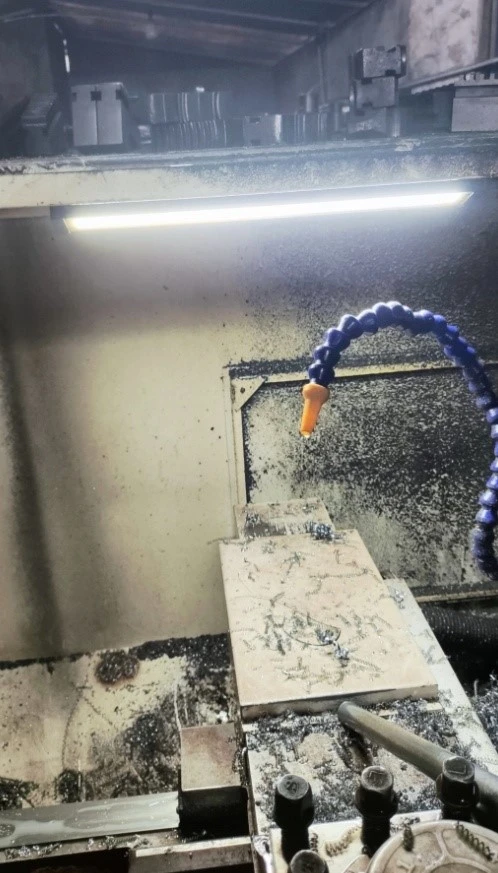

Machine tool work lights are installed inside equipment or close to the machining area, in environments far harsher than ordinary lighting, thus requiring specific protection.
I. Why Waterproof?
* **Cutting Fluid/Coolant Spray:** Lathes, milling machines, grinding machines, and machining centers use large amounts of emulsions or water-based coolants. High-pressure sprays and splashes can directly hit the light.
* **Cleaning Water:** High-pressure water guns are commonly used inside machine tools to wash away metal filings.
* **Condensation:** Large temperature differences and high humidity levels allow moisture to easily enter the light.
* **Consequences:** Moisture ingress can cause short circuits in the drive power supply, corrosion of the LED chips, leakage, and even the risk of electric shock (machine tool work lights are mostly low-voltage, but still require protection).
* **Common Protection Ratings:** At least IP65; IP67, or even IP69K (resistant to high-temperature, high-pressure water jetting), is recommended for locations with strong coolant impact.
II. Why Oil Protection?
* **Oil Mist and Stains:** Cutting oil, lubricating oil, and hydraulic oil can form oil mist, adhering to the surface and crevices of the light fixture. Corrosion of Seals: Ordinary rubber, plastics, and adhesives will age, swell, and crack upon contact with cutting oil, leading to seal failure and water ingress.
Impact on Lighting: Oil film adhering to the lampshade reduces light transmittance.
Solutions: Use oil-resistant sealing rings (such as fluororubber), tempered glass, or oil-resistant PC lampshades; the outer surface is easy to clean.
III. Why Explosion-Proof?
Explosion-proofing is not necessary for all machine tool lights; it is mainly for scenarios with explosion hazards:
Oil Mist/Flammable Cutting Fluid: During high-speed machining and when using non-water-based cutting oils (pure oil), oil mist may reach flammable concentrations, especially in deep hole drilling, grinding, and electrical discharge machining (EDM), posing a fire or even explosion risk.
Metal Dust: Metal dust such as aluminum, magnesium, and titanium is flammable dust; dust clouds encountering sparks during machining may explode.
Flammable Gases/Solvents: Cleaning solvents and areas with paint spraying may contain flammable vapors.
Ignition sources within the luminaire itself: Heat from the luminaire, electrical sparks from the driver, and short circuits can all become ignition sources.
Countermeasures: Use explosion-proof enclosures (such as flameproof Ex d, increased safety Ex e, dust explosion-proof Ex t/DIP), limit surface temperature, use low-voltage power supply, and comply with standards such as ATEX/IECEx/GB 3836. IV. Other Relevant Requirements
Requirement | Reason
Vibration Resistance: High machine tool vibration can easily damage LED solder joints and drives.
Impact Resistance: Splashing metal shavings can damage the lamp cover; tempered glass or a high-strength housing is required.
High Temperature Resistance: Machining area temperatures can reach 60–80°C or higher.
Anti-glare, Flicker-free: Rotating workpieces under strobe light will produce a **"flicker effect"**, appearing stationary and posing a safety hazard.
Low-voltage Power Supply (24V/36V): Reduces the risk of electric shock and meets machine tool electrical safety requirements (e.g., GB 5226.1 / IEC 60204-1).
V. Selection Recommendations
Ordinary CNC lathes and milling machines (water-based coolant): IP65–IP67 waterproof and oil-proof is sufficient.
For applications involving pure oil cutting, oil mist, or combustible dust: Select an explosion-proof type and confirm that the explosion-proof rating matches the zone classification (e.g., Zone 1/2, Zone 21/22).
Check the actual certification certificate, not just the word "explosion-proof". The materials for the lampshade and sealing rings must be compatible with the type of cutting fluid used.
In one word : Waterproofing and oil resistance are basic requirements for daily machine tool operation; explosion-proofing is a safety requirement in the presence of flammable oil mist, dust, or gas, and its necessity depends on the operating environment and regulations.
