Why are 2G11 LED tubes comprehensively replacing traditional 4-pin fluorescent lamps?
2G11 is a 4-pin horizontal plug-in lamp base standard, widely used in offices, shopping malls, hospitals, factories and other scenarios. Taking Benwei's 2G11 LED tube as an example, this article explains product knowledge from the aspects of structure, performance, energy saving and safety, popularizing professional LED lighting knowledge to help you understand product selection, replacement and cost benefits.
1. What is a 2G11 LED Tube?

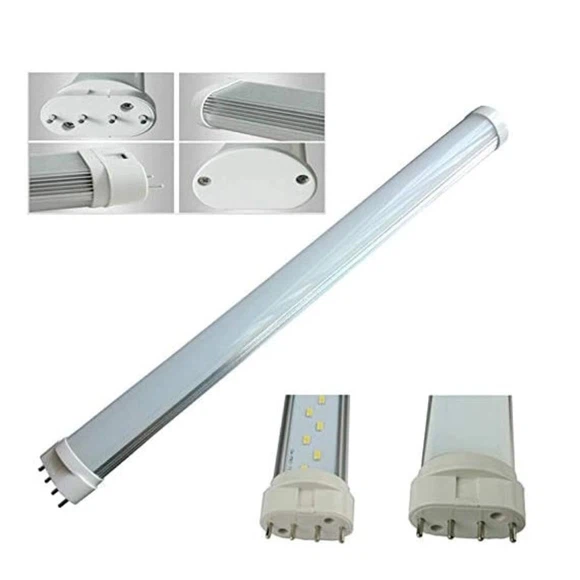

2G11 represents a single-ended 4-pin plug base, a universal interface for traditional H-type / PL-L fluorescent lamps. This 2G11 LED tube adopts an integrated aluminum + PC structure and a built-in constant current driver. It can directly replace traditional fluorescent tubes without complex modification, making it a mainstream solution for commercial lighting energy-saving renovation.
2. Core Structure & LED Professional Knowledge
- LED Chip: Adopts high-quality SMD2835 chips, with high luminous efficiency of 100–160lm/W, high brightness and low light decay.
- Electrical Performance: Supports AC 85–265V wide voltage, high power factor and constant current driver with overcurrent, overvoltage and overload protection for stable output.
- Heat Dissipation Design: High thermal conductivity aluminum housing accelerates heat dissipation, effectively slowing light decay and extending service life.
- Lampshade Material: Flame-retardant PC cover with high light transmittance, anti-yellowing, uniform and soft light output.
- Universal Interface: Standard 2G11 4-pin base, compatible with most existing lamp brackets to save replacement costs.
3. 2G11 LED VS Traditional 2G11 Fluorescent Lamp
| Comparison Item | 2G11 LED Tube | Traditional 2G11 Fluorescent Tube | Advantage Analysis |
| Power | 9W/12W/15W/18W/22W/26W | 18W–55W | Save 70%–80% electricity with equal brightness |
| Luminous Efficiency | 100–160 lm/W | 40–60 lm/W | Higher brightness and lower energy consumption |
| Service Life | 50000 hours | 50000 hours | Service life increased by 4–5 times |
| CRI | Ra≥80 | Ra 60–75 | Restores real colors and improves visual comfort |
| Flicker & Noise | Flicker-free, no noise | Severe flicker & operating hum | Eye-friendly for long-hour use |
| Environmental Performance | Mercury-free & lead-free | Contains harmful mercury | Eco-friendly and pollution-free |
| Installation Method | Bypass ballast for direct wiring | Dependent on ballast | Simple installation and fewer failure points |
4. Core Value of 2G11 LED Tubes
- High Energy Saving: Reduce overall power consumption by about 80%, cutting long-term operating and electricity costs.
- Ultra-long Lifespan: 50,000-hour service life reduces replacement and maintenance frequency.
- Health & Safety: Flicker-free design, no ultraviolet radiation, with CE, FCC, RoHS certified quality.
- Easy Retrofit: Matches original fixtures perfectly, remove the old ballast for fast replacement.
- Wide Application: Suitable for offices, schools, hospitals, corridors and commercial indoor lighting.
5. Professional Selection & Replacement Suggestion
- 18W traditional fluorescent lamp → Replace with 9W 2G11 LED tube
- 24W traditional fluorescent lamp → Replace with 12W 2G11 LED tube
- 36W traditional fluorescent lamp → Replace with 18W 2G11 LED tube
- 55W traditional fluorescent lamp → Replace with 22W / 26W 2G11 LED tubeIt maintains stable high brightness while realizing high-efficiency energy saving.
