How to Wire Downlights？

Recessed lights, sometimes referred to as downlights, are becoming more and more common these days, mostly because of their sophisticated and fashionable appearance. They have a distinctive design since they are meant to appear as an integral part of the ceiling rather than obviously attached to it.

They are especially helpful if you want to add illumination to a room with a low ceiling because you can do so without upsetting your taller family members or acquaintances. In the lighting industry, 18W LED rotatable downlights are highly valued since they seamlessly blend functional and aesthetic benefits. The majority of the time, they have LED bulbs inside.

However, you can question whether you need to hire a professional electrician after purchasing them. We believe that you should be able to install recessed lighting yourself if you have some basic do-it-yourself knowledge and practical tools.

To assist you with that, we have created a thorough guide that breaks down the entire procedure step-by-step. Let's get this done!

You must be aware of the location of the joists in your ceiling if you choose to install downlights. For this task, a stud finder will undoubtedly be helpful! Turning it on and keeping it flat against the surface you wish to search is all that is required.

Slowly move the tool around the ceiling until you hear it beep or see it light up. Mark the location with a pencil to determine where the joist's edge was found. To determine which regions you should leave out while putting the lights, do it all over the surface.

If you don't have a stud finder, you can check to see if it makes a hollow sound by just knocking on the ceiling. There is no joist behind it if there is a distinct echoing sound. A solid thumping sound, on the other hand, increases the likelihood of striking a joist.

In order to avoid damaging the joists, you should place the wiring and pipes in your ceiling. When deciding where to install a recessed light, drag a wire and pipe detector across the surface to see whether the device alerts you in any way. If not, use a pencil to note the location. Ask a plumber, electrician, or house inspector to do it for you if you are unable to do it yourself.

You must choose the locations where you will actually mount downlights after you have determined where they should not be installed. Draw a dot where you want the light's center to be installed to indicate appropriate spaces between the joists. To properly put the downlight in your ceiling, keep around 3 to 4 inches on either side of the dot.

Keep in mind that extra lights should be placed four to five feet apart. Make a note of every location where you plan to put downlights. An adequate amount of light will be provided to your interior without making it overly bright if they are spaced apart appropriately.

You must measure their back diameter in order to determine the holes that must be made in order to install the LED recessed downlights. Turn off the light and measure the part that will be installed inside your ceiling with a tape measure.

Remember not to measure the light's trimmed side. If not, the holes you make will be too large to accommodate the downlights. You can also simply look at the information on the packaging if you still have it.

Make sure the hole saw on your drill is the same size as the cutout you measured. You can attach the ring-shaped blade of this accessory to the end of your drill. To get the cleanest holes, choose a blade that is enhanced with carbide or diamond grits if you have a choice.

Mount the hole saw onto the chuck so that the blades can face out after rotating it counterclockwise to loosen it. This time, crank the chuck clockwise to secure it.

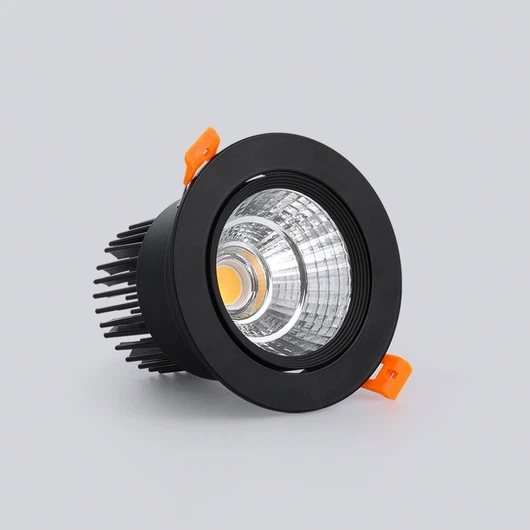

recessed light

Use the hole saw to cut the holes in your ceiling for the lights. Make sure the middle bit fits the mark you previously made with your pencil, and keep the blade perpendicular to the ceiling. To enable the middle bit to penetrate the ceiling, turn on the drill and lightly press down.

To avoid cutting the hole crooked, keep in mind that the saw blade should remain flat. Work in little spurts until you sense the blade emerge from the opposite side. Remember to wear safety glasses and a dust mask to prevent plaster or drywall from landing on your face.

Take the saw out through the hole once you've penetrated the opposite side. Turn off your drill fully for safety. Next, insert a screwdriver end between the side of the saw and the piece of your ceiling that fell into it. Remove the component from the blade by prying it out.

The most important thing to keep in mind is to turn off the power at your home's electrical control box before wiring anything or performing any other repairs or upgrades of this nature. It is advised to use a wire tester to test the outlets and wires in order to determine whether there is indeed no electricity.

You can either add a new switch to the circuit or connect the downlights to an existing switch. A 14/2 cable should be fed through the wall using wire tape so that it aligns with the location where the light is to be mounted. There are three wires in the 14/2 cable: one hot, one ground, and one neutral. After removing the present lighting feature, it's a good idea to put a downlight in the junction box if you already have one.

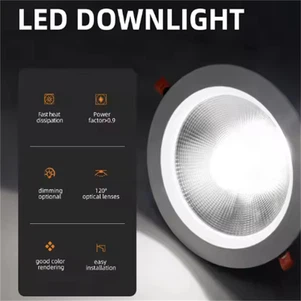

down lights

The ends of the cables on the wall and the recessed light must be stripped. Open the final 1/2 inch of the 14/2 wire between the jaws of the wire remover and clamp. In order to remove the insulation, you should then pull wire strippers in the direction of the end cable. Once you're done, repeat the process with the cable that is connected to the recessed light. The wires are white, uninsulated, and either red or black.

Special wire caps should be used to link the matching wires. Bring the two ends of the black wires together and point them straight up to do that. Next, twist the ends with your pliers so they may be properly spliced.

To provide a secure cover for the exposed end, take a wire cap and twist it clockwise onto the connection. For white and uninsulated wires, follow the same procedure. It's possible that your lights have boxes for connections. If so, position the wires from the 14/2 cable across the corresponding wires in the box by aligning them. Tighten the screws so that everything is stable.

Hold the spring clips up against the sides of the light. Keep in mind that the metal clips on your downlights are spring-loaded and will snap open when released. To make the spring clips lie flat with the base of the light, slide them up from below.

To prevent them from popping open throughout the installation, keep holding them down. There won't be any spring clips if the 20W LED downlight is surface-mounted; instead, you'll need to push and snap it to the mounting plate you previously attached.

Press a little till you hear the clamps shatter after inserting the light into the hole. Continue pressing the light into the ceiling to allow the clips to be inserted into the hole, and make sure that all of the wires are in the hole before the downlight.

Gently drop the light back down after it has snapped and clicked to see if the spring clips are able to support it completely. The recessed light may slide out and break if the clips are not functioning properly, so do not release it too soon.

Well done! The first downlight in your house has just been installed. Once you have completed all of them, turn the voltage back on and take pleasure in your newly installed lighting!

Dimmable downlight, GU10, LED, fire-rated, fixed with a variety of finishes, including quick connectors
Acknowledged GU10 Spot Light White Finish, Brushed Chrome, or Chrome
GU10, Fixed, White, Fire-Rated Downlight with Fast Connectors
Depending on usage, LED downlights can last anywhere between 30,000 and 50,000 hours. If you take good care of them and make sure they are not mistreated, they can survive much longer.
